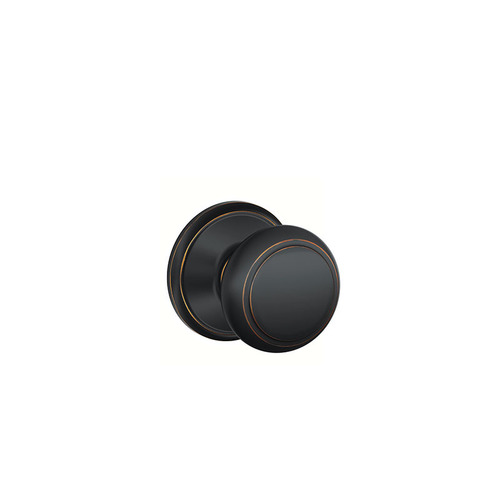

Schlage Residential F10 AND 716 Andover Knob Passage Lock with 16080 Latch and 10027 Strike Aged Bronze Finish

F SeriesLever Locks The Schlage F-Series levers offer the benefit of over 90 years of Schlage quality design and workmanship. With a range of levers in a variety of finishes, Schlage has a lockset to complement any architectural style. These value-engineered locksets are built to last. Available Functions: F10/F75 ? Hall & Closet*: Both knobs/levers always unlocked F40/F76 ? Bed & Bath*: Push-button locking Can be opened from outside with small circular tool Turning inside knob/lever releases button F170 ? Non-turning*: Non-turning

Allegion . F10 AND 716

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAllegion
CategoryIdL3Locks and Accessories
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Residential F10 AND 716 Andover Knob Passage Lock with 16080 Latch and 10027 Strike Aged Bronze Finish
atoms, moq, multiple, tierMinQty11
color, Color, Finish FamilyAntique Bronze
height2.75
height_AttribProduct Height
MPNF10 AND 716
qtyInStock-2
qtySourceFieldMap
tierPrice144.12
Finish, Finish DescriptionAged Bronze
Function10-Hall/Closet
DesignAndover Knob
StrikeFull Lip 2-1/4 Inch, Radius Corner
Backset2-3/8 Inch or 2-3/4 Inch
Color Code643E/US11/716
GradeANSI/BHMA Grade 2
Knob styleAND-Andover
Rose/Escutcheon TrimRound Rose
Product TypeCylindrical Lock
HandingReversible
Projection2.3125
Door Thickness, For Door Thickness1-3/8" to 1-3/4"
Knob Diameter2.2500
Bore Size2.1250
Included ComponentsPassage levers, roses, latch, strike, mounting hardware
Door Cross Bore2.125 Inch
Product MaterialZinc
Box Length8.1400
Box Width4.3700
Box Height3.0600
ApplicationResidential Single and Multi-Family Doors
WarrantyLimited Lifetime Mechanical and Finish Warranty
ANSI FunctionF75
Latch TypeSpring
Product Height2-3/4 Inch
Strike Number10-027
Strike TypeRadius, Full Lip
ADA CompliantNo
Strike NameRound Corner Full Lip
StandardsANSI/BHMA A156.39-2015; UL Listed
Faceplate Dimension1" x 2-1/4"
Door PreparationCross Bore 2-1/8"; Edge Bore 7/8"
Function DescriptionLatch retracted by knobs/levers at all times
Function FamilyPassage/Hall/Closet
Product Projection2-5/16 Inch
Strike Size1-5/8 x 2-1/4 Inch
Bolt Throw1/2 Inch
Door Edge Bore1 Inch
Box Dimensions (L x W x H)3.06x4.37x8.14"
Knob Style FamilyRound Flat Knob
Sub-SeriesF10-AND
