SunSource | 123AL00368A DANFOSS Industrial Hydraulics | SunSource.com

123AL00368A DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.

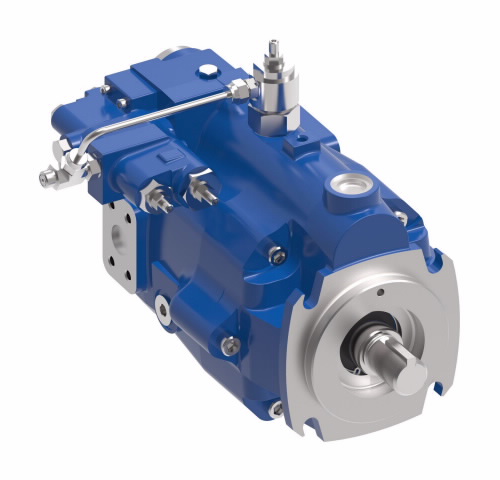

DANFOSS . 123AL00368A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDANFOSS
Extra Product NameSunSource | 123AL00368A DANFOSS Industrial Hydraulics | SunSource.com
jsonUrlData2b49c666-4b08-4ebf-8a77-ae280008fdd1
keywordsHYDRAULIC PUMP 123AL00368A
moq, multiple, tierMinQty11
MPN, SKU123AL00368A
qtyInStock, tierPrice10
snippet123AL00368A DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
ApplicationMining Machinery, Injection Molding Machines, Metal Forming Machines, Oil and Gas Equipment, Conveyor Lines, Primary Metals, Metal Cutting Equipment
Auxiliary mountingSAE A, 2-Bolt, 9T Spline
Bearing life at rated pressure8000 hour
Code titleVariable Displacement
Cold start temperature limit104 degree Celsius
Controller typePressure And Flow Compensator With Plugged Orifice
Design code11A
Displacement98.3 cubic centimetre per revolution
Documentlink 2d drawings 4http://wcm-prod-cs.etn.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/a-2215-006.pdf
EccnEAR99
End cover materialDuctile Iron
Flow compensator setting21 bar
Fluid cleanlinessISO 18/13
Fluid compatibility13SAE J183 FEB80
Housing materialCast Iron
Icc2Industrial - OC Piston Pumps
IdentificationNone
Input mounting flangeSAE J744-127-4 (C, 4-Bolt)
Input shaftSAE J744-38-1, SAE C-C, Straight Keyed
Input speed at 0 8 bar absolute, Input speed rated1800 revolutions per minute
Input speed at 1 0 bar absolute, Input speed maximum2400 revolutions per minute
Input speed minimum0 revolutions per minute
Main port size locationSide
Maximum case pressure, Peak pressure rating350 bar
Maximum input power88 kilowatt
Maximum input torque464 newton metre
Maximum recommended oil viscosity40 centistokes
Minimum recommended oil viscosity16 centistokes
Model CodePVM098MR10GS02AAC2820000AA0A
Noise64 decibel
Nominal pressure rating315 bar
PaintBlue
Pressure compensator setting284 bar
Product height8.46
Product height uom, Product length uom, Product width uominch
Product length16.53
Product trade namePVM Series
Product weight121.00
Product weight uompound
Product width11.41
Shaft rotationRight
Special features17Adjustable Max Displacement Stop (Contains Single Shaft Seal)
Sub brandVickers
Valve plateMobile Equipment Speed
Vsd readyNo
