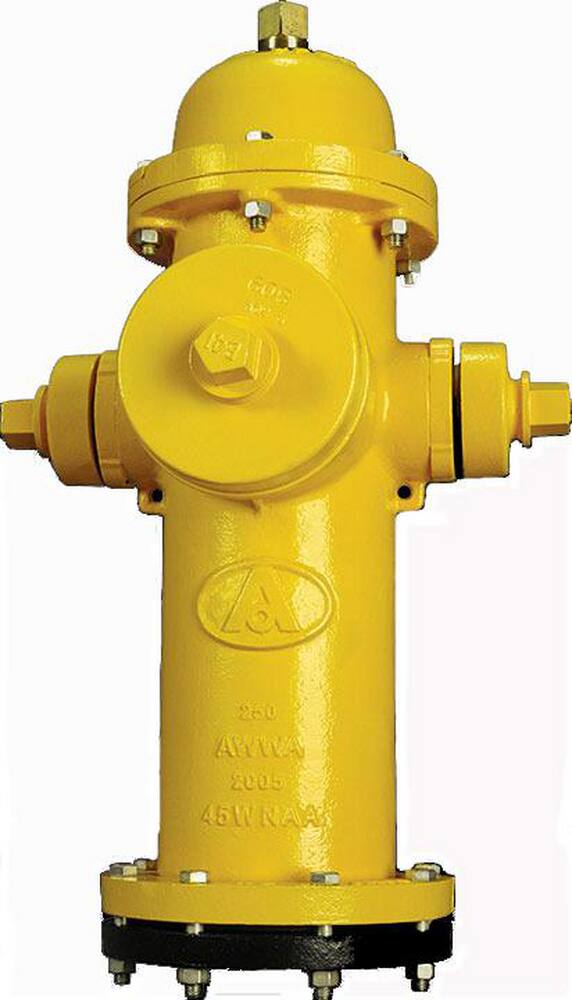

American Flow Control . B-84B

American Flow Control . B-84B

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAmerican Flow Control
DimensionUnitinch
Weight335
Weight_AttribWeight
height30.5
height_AttribHeight
length36.0
length_AttribDepth of Trench
moq, multiple1
MPNB-84B
qtyInStockCall for Availability
SKU4481035
width10.13
width_AttribWidth
ANSI SpecificationsANSI 372, ANSI 61, ANSI C502, ANSI C600
ASTM SpecificationsASTM D-1785, ASTM D-2241
AWWA SpecificationsAWWA C-151, AWWA C-502, AWWA C-600, AWWA C-900, AWWA C-906, AWWA M-17
CoatingEpoxy, Fusion Bonded Epoxy, Polyurethane
CollectionAmerican-Darling® B-84-B-5
Depth of Trench3 ft 6 in
End Connection 1, End Connection 2, End ConnectionsMechanical Joint
FM Approved, NSF Certified, UL ListedYes
Flow Rate1000 gpm
Height30-1/2 in
High Pressure250
MaterialBronze, Ductile Iron, Fiber, Grey Iron, Plastic, Plated Steel, Rubber, Stainless Steel
Material TypeBuna-N, EPDM, Nylatron®, PTFE
Maximum Pressure500 psig
NSF SpecificationsNSF 372, NSF 61
Recommended Valve ApplicationWater
Valve Body StyleOpen Right
Valve Seat MaterialBronze
Valve Size5-1/4 in
Width10-13/100 in
