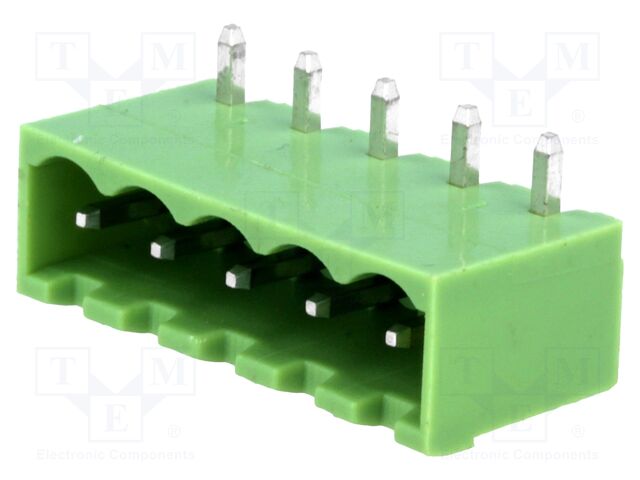

XINYA XY2500R-B(5.0)-5P | Pluggable terminal block; Contacts ph: 5mm; ways: 5; angled 90?

XINYA XY2500R-B(5.0)-5P | Pluggable terminal block; Contacts ph: 5mm; ways: 5; angled 90

XINYA . XY2500R-B(5.0)-5P

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerXINYA
CategoryL1Connectors
CategoryL2Power connectors
CategoryL3Terminal blocks
CategoryL4Pluggable terminal blocks
DimensionUnitmm
Extra Product NameXINYA XY2500R-B(5.0)-5P | Pluggable terminal block; Contacts ph: 5mm; ways: 5; angled 90?
atoms1
height8.4
height_AttribHeight
jsonUrlData00ec8b008ea32de4d9fbea10b3330272.5
jsonUrlData20369f16647e97f7fd8b4
keywordsXINYA, XY2500R-B(5.0)-5P, TBG-5.0-KW-5P, Connectors, Power connectors, Terminal blocks, Pluggable terminal blocks
moq, multiple, tierMinQty110
MPNXY2500R-B(5.0)-5P
qtyInStock4940
SKUTBG-5.0-KW-5P
snippetXINYA XY2500R-B(5.0)-5P | Pluggable terminal block; Contacts ph: 5mm; ways: 5; angled 90
tierMinQty250
tierMinQty3200
tierMinQty4800
tierMinQty52400
tierPrice10.208
tierPrice20.172
tierPrice30.159
tierPrice40.147
tierPrice50.122
Type of connectorpluggable terminal block
Contacts pitch5mm
Number of ways, Number of pins5
Spatial orientationangled 90?
Connectorsocket
Kind of connectormale
Mechanical mountingon PCBs
Electrical mountingTHT
Colourgreen
Rated voltage300V
Locking systemfriction lock
Type of pin configuration1x5
Current rating15A
Body materialpolyamide 66
Flammability ratingUL94V-0
Conform to the normUL
Contact platingtinned
Operating temperature-40...105?C
Contact materialbrass
Height8.4mm

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMETBG-5.0-KW-5P1049401010 @ $0.21, 50 @ $0.17, 200 @ $0.16, 800 @ $0.15, 2400 @ $0.12
