AUTONICS TX4M-B4R | Module: regulator; temperature; SPST-NO; OUT 2: alarm; OUT 3: alarm

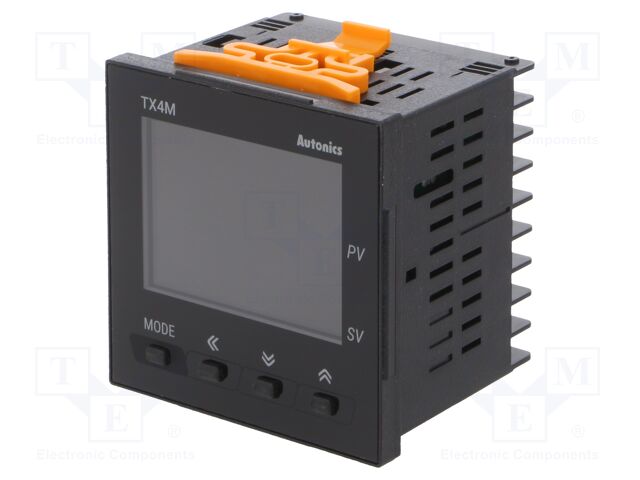

Autonics TX4M-B4R TX Series - LCD Display PID Temperature Controller, DIN W72xH72mm Control output: Relay (250VAC~ 3A, 30VDC 3A) Display method: 4-digit 11-segment LCD Sampling cycle: 50ms Control method: ON/OFF control, P, PI, PD, PID controlThe TX series temperature controllers feature easy-to-read LCD displays with large, white PV characters. The 11-segment displays used for PV and SV are useful for displaying various alphanumeric characters and provide improved legibility. The temperature controllers also feature a 50 ms high-speed sampling cycle and +-0.3% display accuracy. The space-saving design with 45 mm depth allows easy installation in limited spaces (DIN 48 x 48 mm models). The TX series can be configured and monitored on PCs via USB or RS485 communication, and are available in diverse sizes for flexible installation in various environments.Main featuresLCD DisplayReduced Rear-Length11-Segment DisplayVarious OutputsHigh-Speed SamplingOutput SelectionStandard/Phase/Cycle ControlDedicated SoftwareLarge LCD Display with Easy-to-Read White PV CharactersLarge LCD display with 15.3mm white PV characters provides high visibility in various environments.*PV character height: TX4S 14 mm, TX4M 17.3 mm, TX4H 15.8 mm, TX4L 26.8 mmCompact Sized Design with 45mm Rear-LengthMinimized installation-space requirements by reducing the depth size by 30% compared to similar-sized Autonics models (48x48mm models).11-Segment Display Provides Improved Readability11-segment displays used for PV and SV provide improved readability of alphanumeric characters.50ms High-Speed Sampling Cycle50ms high-speed sampling rate allows accurate temperature control in applications requiring fast response speeds.Switch Between Current Output and SSR Drive Output
