Order YA1CL245 by Burndy 50241V Compression Connector, 1 AWG, 1/4" Stud Size, (Pack of 100 pcs) - US Mega Store

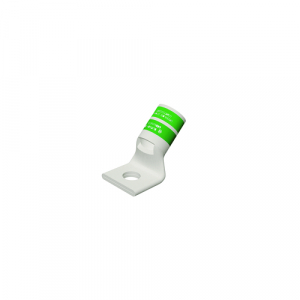

Burndy, YA1CL245, 50241V Compression Connector, 1 AWG CU, 1/4" Stud Size CU Compression Terminal Code Conductor, Beveled Entry, 1 Hole/ with InspWindow, #1AWG(Code) 75(Navy), 600V-35kV, 1/4" Stud, Standard Barrel, Electro-Tin Plated.

Burndy . YA1CL245

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA1CL245
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA1CL245 by Burndy 50241V Compression Connector, 1 AWG, 1/4" Stud Size, (Pack of 100 pcs) - US Mega Store
diameter, height, length0.46
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA1CL245
qtyInStock-2
qtySourceFieldMap
tierPrice113.65
width0.68
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index11;375
Feature - Barrel StyleChamfered
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction7/8 in
Dimension - B Length inch0.88 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.27 in
Dimension - D inch0.58 in
Dimension - Hole Size mm7 mm
Dimension - L Length Overall mm43 mm
Dimension - Length Overall inch1.70 in
Dimension - N inch0.25 in
Dimension - Outside Diameter inch0.46 in
Dimension - Pad Width inch0.68 in
Dimension - Strip Length inch15/16
Dimension - Stud Size inch1/4
Dimension - Z inch0.33 in
Physical Attribute - Tongue Angle45 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size RangeN/A
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range75 (37) Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range1 AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - Industry Standards MetUL467
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA1CL2451-211 @ $13.65
