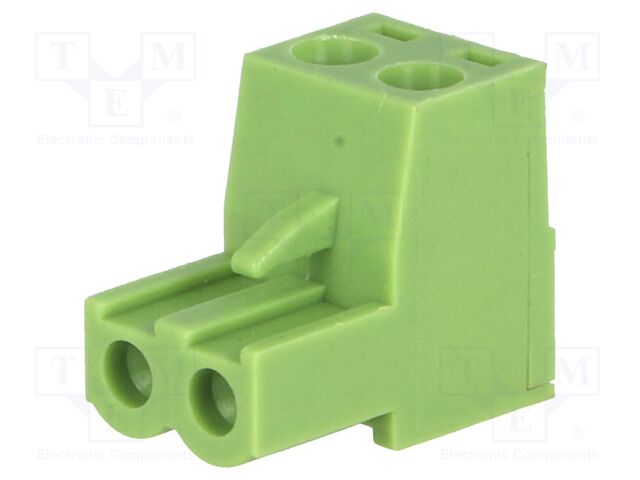

XINYA XY2500F-A(5.0)-2P | Pluggable terminal block; 5mm; ways: 2; straight; plug; female
XINYA XY2500F-A(5.0)-2P | Pluggable terminal block; 5mm; ways: 2; straight; plug; femal
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | XINYA |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Power connectors |
| CategoryL3 | Terminal blocks |
| CategoryL4 | Pluggable terminal blocks |
| Extra Product Name | XINYA XY2500F-A(5.0)-2P | Pluggable terminal block; 5mm; ways: 2; straight; plug; female |
| atoms | 1 |
| jsonUrlData | 2759292327c5908d0cfe01e180438a7b. |
| jsonUrlData2 | b3b27830809699db73fd |
| keywords | XINYA, XY2500F-A(5.0)-2P, TBW-5.0-K-2P |
| moq, multiple, tierMinQty1 | 5 |
| MPN | XY2500F-A(5.0)-2P |
| qtyInStock | 62504 |
| SKU | TBW-5.0-K-2P |
| snippet | XINYA XY2500F-A(5.0)-2P | Pluggable terminal block; 5mm; ways: 2; straight; plug; femal |
| tierMinQty2 | 10 |
| tierMinQty3 | 50 |
| tierMinQty4 | 200 |
| tierMinQty5 | 1000 |
| tierPrice1 | 0.228 |
| tierPrice2 | 0.181 |
| tierPrice3 | 0.159 |
| tierPrice4 | 0.147 |
| tierPrice5 | 0.125 |
| Type of connector | pluggable terminal block |
| Contacts pitch | 5mm |
| Number of ways, Number of terminals | 2 |
| Spatial orientation | straight |
| Connector | plug |
| Kind of connector | female |
| Mechanical mounting | for cable |
| Electrical mounting | cage clamp, |
| Wire cross-section | 2.5mm |
| Wire size | 28AWG...12AWG |
| Colour | green |
| Rated voltage | 300V |
| Connector pinout layout | 1x2 |
| Current rating | 12A |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Locking system | latch |
| Conform to the norm | UL |
| Contact plating | nickel plated |
| Operating temperature | -40...120?C |
| Contact material | brass |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TBW-5.0-K-2P | 5 | 62504 | 5 | 5 @ $0.23, 10 @ $0.18, 50 @ $0.16, 200 @ $0.15, 1000 @ $0.12 |
