NVTFS4824NTWG ON Semiconductor | Discrete Semiconductor Products | DigiKey

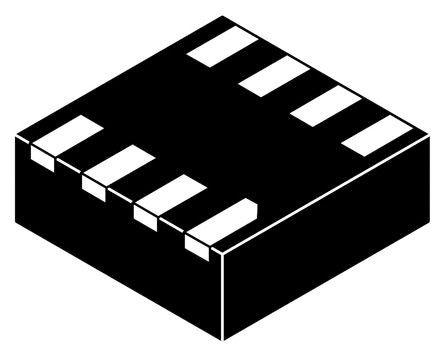

NVTFS4824NTWG N-channel MOSFET Transistor, 46 A, 30 V, 8-Pin WDFN
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | ON Semiconductor |
|---|---|
| Extra Product Name | NVTFS4824NTWG ON Semiconductor | Discrete Semiconductor Products | DigiKey |
| atoms, moq, multiple | 1 |
| MPN | NVTFS4824NTWG |
| qtyInStock | 0 |
| SKU | NVTFS4824NTWG-ND |
| Category | Discrete Semiconductor Products |
| Series, FET Feature | - |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25?C | 18.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.7mOhm @ 23A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250?A |
| Vgs (Max) | ?20V |
| Power Dissipation (Max) | 3.2W (Ta), 21W (Tc) |
| Operating Temperature | -55?C ~ 175?C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-WDFN (3.3x3.3) |
| Package / Case | 8-PowerWDFN |
| Drain to Source Voltage (Vdss) | 30V |
| Gate Charge (Qg) (Max) @ Vgs | 14nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1740pF @ 12V |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| NVTFS4824NTWG-ND | 1 | 1 | |||
| Allied Electronics | 70547328 | 1 | 1 | ||
| Little Diode | NVTFS4824NTWG | 1 | 1 | ||
| Hotenda | H1832037 | 1 | 1 | ||
| Win Source | NVTFS4824NTWG | 1 | 20000 | 1 | |
| 121-7975 | 1 | 1 | |||
| Digi-Key | 2797273 | 1 | 1 | ||
| NVTFS4824NTWG | 1 | 1 | |||
| us.rs-online.com | 70547328 | 100 | 100 | 100 @ $0.41, 500 @ $0.41, 1000 @ $0.40, 2500 @ $0.39 |
