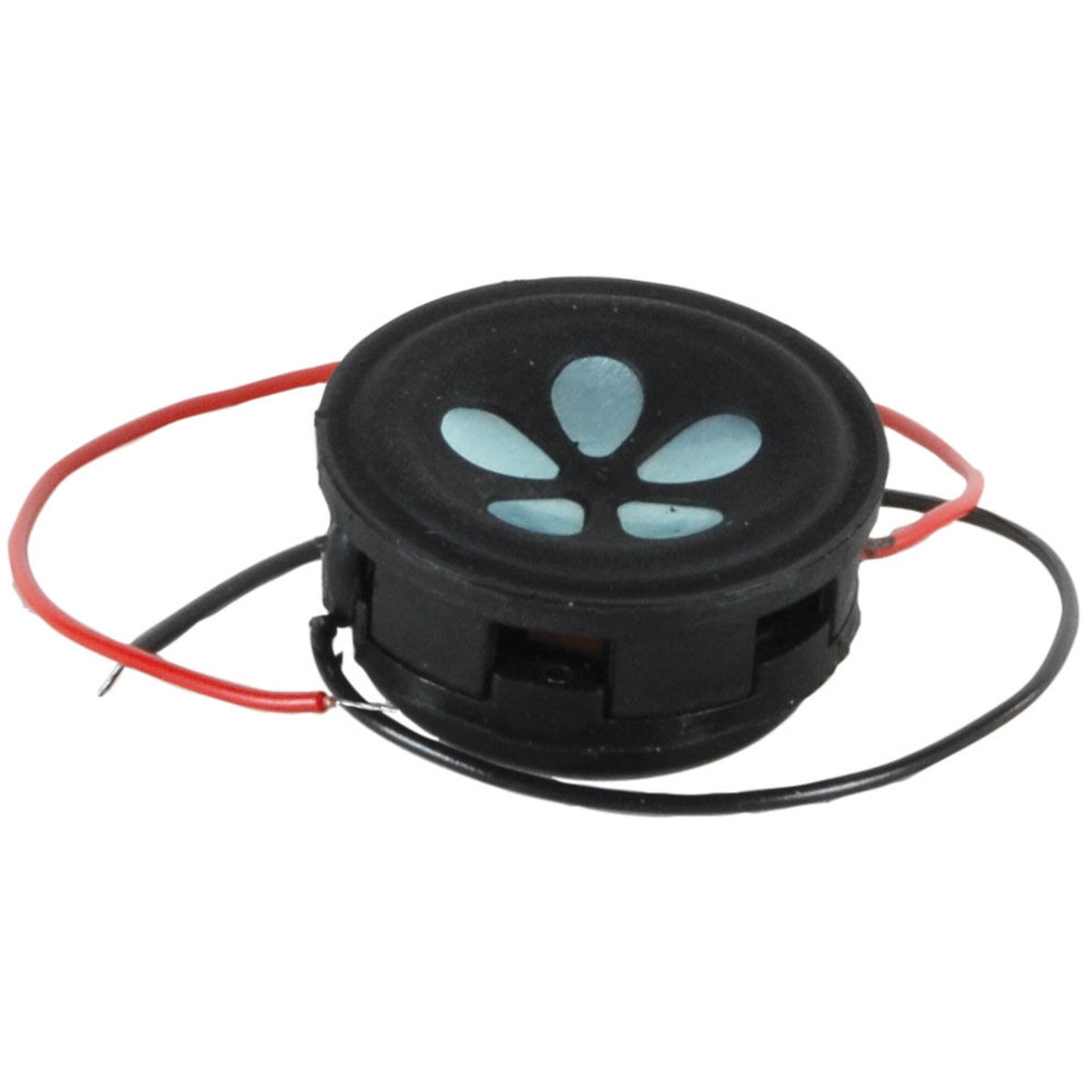

Tang Band W1-1815SA 1" Neodymium Full Range Driver

Tang Band W1-1815SA 1" Neodymium Full Range Driver. Part Number: 264-882 by Tang Band.

Tang Band . W1-1815SA

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandTang Band
DimensionUnitinch
Extra Product NameTang Band W1-1815SA 1" Neodymium Full Range Driver
UPC844632078927
Weight0.1
WeightUnitlbs
depth, length0.6
diameter, height, width1.22
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelW1-1815SA
qtyInStock-2
qtySourceFieldMap
SKU, Part Number264-882
snippetTang Band W1-1815SA 1" Neodymium Full Range Driver. Part Number: 264-882 by Tang Band.
tierMinQty24
tierMinQty310
tierPrice128.98
tierPrice226.08
tierPrice324.63
Unit of MeasureEach
Nominal Diameter1"
Power Handling (RMS)3 Watts
Power Handling (MAX)5 Watts
Impedance4?
Frequency Response170 to 18,000Hz
Sensitivity73dB 2.83V/1m
Voice Coil Diameter0.75"
Resonant Frequency (Fs)170Hz
DC Resistance (Re)3.6?
Voice Coil Inductance (Le)0.08mH
Mechanical Q (Qms)4.13
Electromagnetic Q (Qes)0.94
Total Q (Qts)0.77
Compliance Equivalent Volume (Vas)0.01ft?
Mechanical Compliance of Suspension (Cms)0.92mm/N
BL Product (BL)2T?m
Diaphragm Mass Inc Airload (Mms)1g
Maximum Linear Excursion (Xmax)1.25mm
Surface Area of Cone (Sd)75cm?
Cone MaterialAluminum
Surround MaterialSantoprene?
Magnet MaterialNeodymium
Overall Outside Diameter1.22"
Baffle Cutout Diameter1.11"
Depth0.6"
Sealed Volume, Vented Volume0.02ft?
Sealed F3182.9Hz
Vented F3131.7Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com264-8821-211 @ $28.98, 4 @ $26.08, 10 @ $24.63
