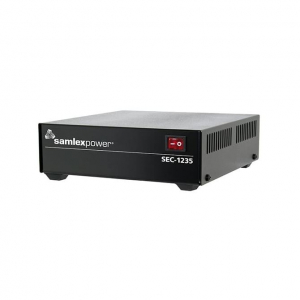

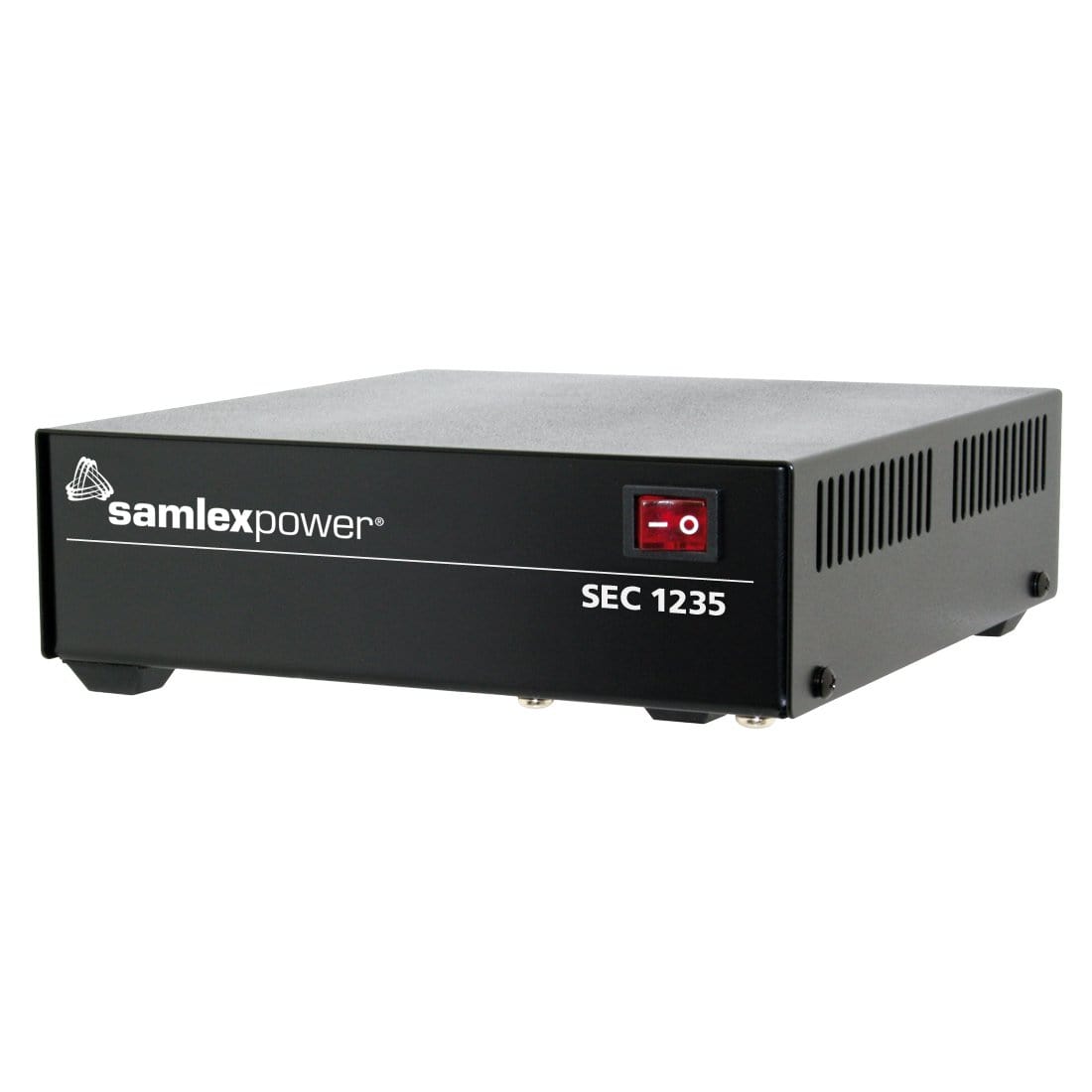

13.8V Desktop Switching Power Supply - 30 Amp

The Samlex America SEC1235 switching power supply is specifically designed for use with two-way land mobile radios. This advanced switch-mode DC power supply has an internally selectable 115 or 230 VAC input for a 13.8 VDC output and 30 A continuous current. The desktop power supply produces clean, reliable power and is highly filtered to suppress RF interference and provide worry-free service. Radio specific enclosures are available (not included) with this ultra slim Samlex switching power supply. This listing is for Each. AC Input Voltage 230 V, 115 V AC Input Voltage Range 90-264 V Power Cord Yes Crowbar Protection No Nominal DC Output Voltage 13.8 V Fold-Back Protection N/A Item Height 2.5 in Qty/ Uom 1 Each Maximum Continuous Amperage 35 A Description SAMLEX switching power supply incorporates a advanced design in a compact and lightweight size. Fully regulated with current limiting, crowbar over-voltage and short circuit protection. Ripple is lessthan 10mV. Made to a radio size footprint of 2.5H x 7.3Wx 8.0L. Internally adjustable 115V/230V*. UL and CSA approved. 3 year warranty. Item Width 7.3 in Ripple Voltage 50 mV PtP

Samlex 30A Switching Power Supply - No Meters This high efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 30 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz possible models also available). These advanced switch-mode DC power supplies were designed specifically for land mobile radio applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit, and over-temperature protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.
