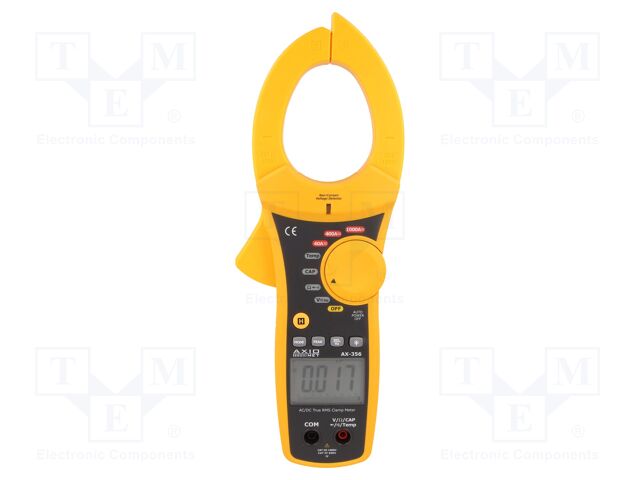

AXIOMET AX-356 | Meter: multifunction; digital,pincers type; ?cable: 52mm; LCD

AXIOMET AX-356 | Meter: multifunction; digital,pincers type; ?cable: 52mm; LC

AXIOMET . AX-356

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAXIOMET
CategoryL1Workplace Equipment
CategoryL2Measuring Instruments
CategoryL3Meters and Clamp Probes
CategoryL4Meters and AC\/DC Clamp Probes
DimensionUnitmm
Extra Product NameAXIOMET AX-356 | Meter: multifunction; digital,pincers type; ?cable: 52mm; LCD
Weight449
WeightUnitg
Weight_AttribWeight without batteries
atoms, moq, multiple1
diameter, length, width52.0
jsonUrlDatad961a94c5a38883b3841d52567aa22ec.
jsonUrlData2c6967279b6b8b8b46039
keywordsAXIOMET, AX-356, Workplace Equipment, Measuring Instruments, Meters and Clamp Probes, Meters and AC/DC Clamp Probes
length_Attrib, width_AttribMax. diameter of measured cable
MPN, SKUAX-356
qtyInStock92
snippetAXIOMET AX-356 | Meter: multifunction; digital,pincers type; ?cable: 52mm; LC
Type of metermultifunction
Kind of meterdigital,
Max diameter of measured cable52mm
Kind of display usedLCD
Display parameters3,75 digit (4000)
Bargraph41 segm.
Sampling2x/s
DC current measuring range, AC current measuring range10mA...40A/
DC current measuring accuracy?(2.8% + 8 digits)
AC current measuring accuracy?(2,8% + 8 digits)
DC voltage measuring range, AC voltage measuring range0.1...400mV/
DC voltage measuring accuracy, Resistance measuring accuracy, Frequency measuring accuracy?(1,5% + 2 digits)
AC voltage measuring accuracy?(1,5% + 5 digits)
True effective value measurementTrue RMS AC+DC
Resistance measuring range100m?...400?/
Capacitance measuring range0.001...4nF/
Capacitance measuring accuracy?(3% + 5 digits)
Frequency measuring range1...4kHz
Temperature measuring range-20...760?C
Temperature measurement accuracy?(3% + 5?C)
Continuity testacoustic indication,
Test0.3mA @3V
Dimensions270x100x47mm
Weight without batteries449g
MeasurementAC current,
Conform to the normCAT III 1000V
Measuring unit?C,
Protectionanti-overload OPP
Illuminationyes

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEAX-3561921
