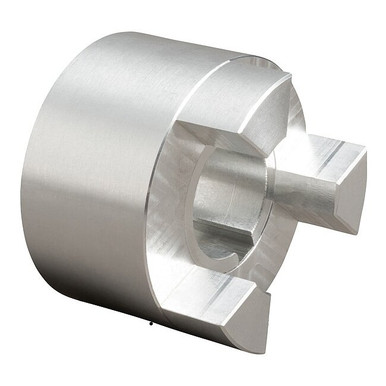

AL07512NK AL075X1/2 NK L-JAW HUB
AL07512NK AL075X1/2 NK L-JAW HUB
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | TB Woods |
|---|---|
| CategoryL1 | Shaft Couplings and Collars |
| CategoryL2 | Jaw Couplings |
| CategoryL3 | Components |
| CategoryL4 | Hub Halves |
| Extra Product Name, snippet | AL07512NK AL075X1/2 NK L-JAW HUB |
| moq, multiple | 7 |
| MPN | AL07512NK |
| qtyInStock | 0 |
| SKU | 338881 |
| tierMinQty1 | 1 |
| tierPrice1 | 9.59 |
| Keyway | No keyway |
| Bore size | 1/2 in |
| Product family | L-jaw hub |
| Size code | 75 |
| Product description | AL075 X 1/2 No KW |
| Dimension (in) (S), Dimension (in) (LTB) | 1.26 |
| Overall length | 2.13 |
| Max compatible bore size | 0.875 |
| Hub material, Material type | Aluminum |
| Max speed | 11000 |
| Setscrew length | 0.375 |
| Dimension (in) (OD), O D | 1.75 |
| Bore shape | Finish bore |
| Min compatible bore size | 0.25 |
| Setscrew size | 1/4 20NC |
| Jaw type | Straight |
| Bore size frac (in) | 0.500000 |
| Max parallel misalignment | 0.015 |
| Length-through-bore | 0.81 |
| Center | 0.5 |
| Max RPM | 11,000 |
| Family ID | 2,008 |
| Bore tolerance (in), Bore tolerance | +.0005 to +.0015 |
| Coupling size | AL075 |
| Family name | Jaw coupling |
| Setscrew length frac (in) | 0.375000 |
| Keyseat | No keyseat |
| Unit Of Measure | English |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| MRO Supply | 338881 | 7 | 7 | 1 @ $9.59 | |
| Grainger | 3KX93 | 1 | 1 | ||
| Applied Industrial | 105293298 | 1 | 1 | ||
| sustainablesupply.com | C2818148 | 1 | -2 | 1 | 1 @ $9.49 |
 Zoro | G1995034 | 1 | 41 | 1 | 1 @ $7.79 |
 simsupply.com | ZO-G1995034 | 1 | 22 | 1 | 1 @ $15.91 |
