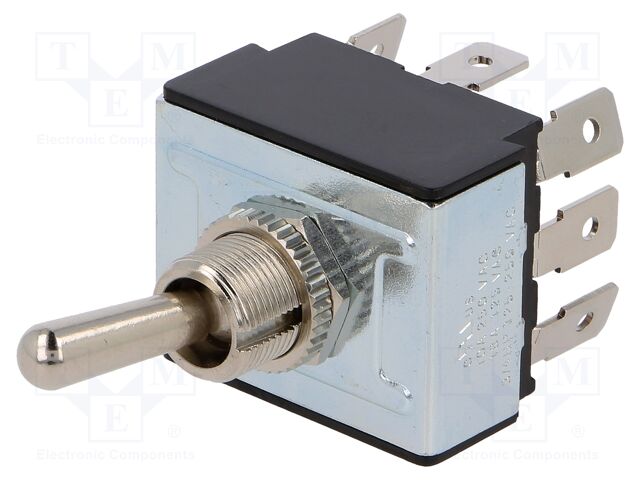

SCI R13-432D1-01-HR | Switch: toggle; Pos: 3; 3P3T; ON-OFF-ON; 10A/250VAC; -25?70?C; 50m?
SCI R13-432D1-01-HR | Switch: toggle; Pos: 3; 3P3T; ON-OFF-ON; 10A/250VAC; -25?70?C; 50m
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SCI |
|---|---|
| CategoryL1 | Switches and Indicators |
| CategoryL2 | Toggle Switches |
| DimensionUnit | mm |
| Extra Product Name | SCI R13-432D1-01-HR | Switch: toggle; Pos: 3; 3P3T; ON-OFF-ON; 10A/250VAC; -25?70?C; 50m? |
| atoms, moq, multiple, tierMinQty1 | 1 |
| diameter, length, width | 12.0 |
| height | 16.5 |
| height_Attrib | Knob height |
| jsonUrlData | 4dae42d366f743101382372b9fb4146e. |
| jsonUrlData2 | 3fd1d071f35c39209dbd |
| keywords | SCI, R13-432D1-01-HR, R13432D101 |
| length_Attrib, width_Attrib | Mounting hole diameter |
| MPN | R13-432D1-01-HR |
| qtyInStock | 0 |
| SKU | R13432D101 |
| snippet | SCI R13-432D1-01-HR | Switch: toggle; Pos: 3; 3P3T; ON-OFF-ON; 10A/250VAC; -25?70?C; 50m |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierPrice1 | 8.78 |
| tierPrice2 | 7.48 |
| tierPrice3 | 6.21 |
| tierPrice4 | 5.14 |
| Type of switch | toggle |
| Number of positions, Stable positions number | 3 |
| Contacts configuration | 3P3T |
| Switching method | ON-OFF-ON |
| AC contacts rating @R | 10A / 250V AC |
| Leads | connectors 6,3x0,8mm |
| Terminals plating | nickel |
| Operating temperature | -25...70?C |
| Kind of toggle | round |
| Mounting hole diameter | ?12mm |
| Knob height | 16.5mm |
| Max contact resistance: | 50m? |
| Body dimensions | 33.4x27.5x18.9mm |
| Actuator material | metal |
| Panel thickness | max. 5mm |
| Body material | bakelite |
| Test voltage | 1.5kV |
| Flammability rating | UL94HB |
| Manufacturer series | R13-432 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| R13432D101 | 1 | 1 | 1 @ $8.78, 5 @ $7.48, 20 @ $6.21, 100 @ $5.14 |
