Effluent Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Phase - Pumps 1, Amps 15.5, Body Material Cast Iron, Impeller Material Bronze, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 10 Ft. of Head 93 gpm, Flow Rate @ 15 Ft. of Head 85 gpm, Flow Rate @ 20 Ft. of Head 78 gpm, Flow Rate @ 40 Ft. of Head 45 gpm, Max. Head 56 ft, Min. Sump Pit Dia. 24 in, Minimum Water Depth 24 in, Body Dia. 12 3/4 in

'Submersible Effluent Pump, Manual Operation Type, 1/2 HP, None, Base Material Cast Iron, Housing Cast Iron, Top Material Cast Iron, Carbon/Ceramic, Impeller Material Bronze, 115V, 15.5 Amps, Height 18-9/16 In., 12-3/4 In. Diameter, Cord Length 20 ft., Discharge NPT 1-1/2 In., Shaft Seal Carbon/Ceramic, Max. Dia. Solids 3/4 In., GPM of Water @ 10 Ft. of Head 93, Max. Head 56 ft., Max. Temp. 130 Degrees F, 1 Phase, Bearing Type Ball'

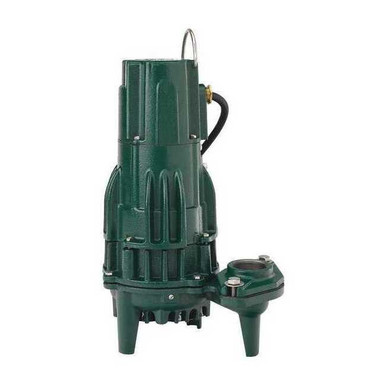

Zoeller "Flow Mate" High Head Effluent Pump This effluent submersible pump is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. These durable cast iron effluent pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance. Features Stainless steel screws, bolts, float rod, handle guard, arm and seal assembly Passes ¾" spherical solids 1½" NPT discharge 20 ft. UL listed 3-wire neoprene cord and plug Maximum temperature for effluent or dewatering 130°F 100% of units are computerized tested Note: Image is illustrative and may not reflect details of actual product.

Zoeller "Flow Mate" High Head Effluent Pump This effluent submersible pump is designed for use in residential or light commercial dewatering applications and can be used to transfer groundwater or effluent. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance. Features Neoprene square ring & gasket Stainless steel screws, bolts, float rod, handle guard, arm and seal assembly Passes ¾ spherical solids 1½ NPT discharge 35 ft. UL listed 3-wire neoprene cord and plug Maximum temperature for effluent or dewatering 130°F 100% of units are computerized tested Control Panel Options Below are the control panels that can be used with this effluent pump: 10-0125 10-1038 10-1040 10-1042 Note: Image is illustrative and may not reflect details of actual product.
