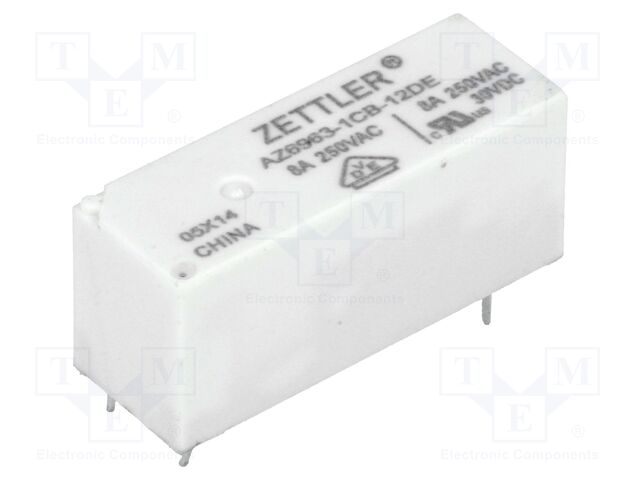

ZETTLER AZ6963-1CB-12DE | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/30VDC
ZETTLER AZ6963-1CB-12DE | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/30VD
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ6963-1CB-12DE | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/30VDC |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | d89c54200766979e4318266ef62f2356.5 |
| jsonUrlData2 | bf34cb755c626bd5c2fb |
| keywords | ZETTLER, AZ6963-1CB-12DE, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN, SKU | AZ6963-1CB-12DE |
| qtyInStock | 1363 |
| snippet | ZETTLER AZ6963-1CB-12DE | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A; 8A/250VAC; 8A/30VD |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 1.58 |
| tierPrice2 | 1.45 |
| tierPrice3 | 1.24 |
| tierPrice4 | 1.07 |
| tierPrice5 | 0.97 |
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 12V DC |
| Contact current max | 8A |
| AC contacts rating @R | 8A / 250V AC |
| DC contacts rating @R | 8A / 30V DC |
| Switched voltage | max. 240V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 620? |
| Coil voltage min | 8.4V DC |
| Coil voltage max | 27.2V DC |
| Operate time | 7ms |
| Body dimensions | 28.8x10.1x12.5mm |
| Release time | 3ms |
| Coil power consumption | 120mW |
| Operating temperature | -40...85?C |
| Relay series | AZ6963 |
| Contact resistance | 100m? |
| Terminal pitch | 3.2mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ6963-1CB-12DE | 1 | 1363 | 1 | 1 @ $1.58, 5 @ $1.45, 20 @ $1.24, 100 @ $1.07, 500 @ $0.97 |
