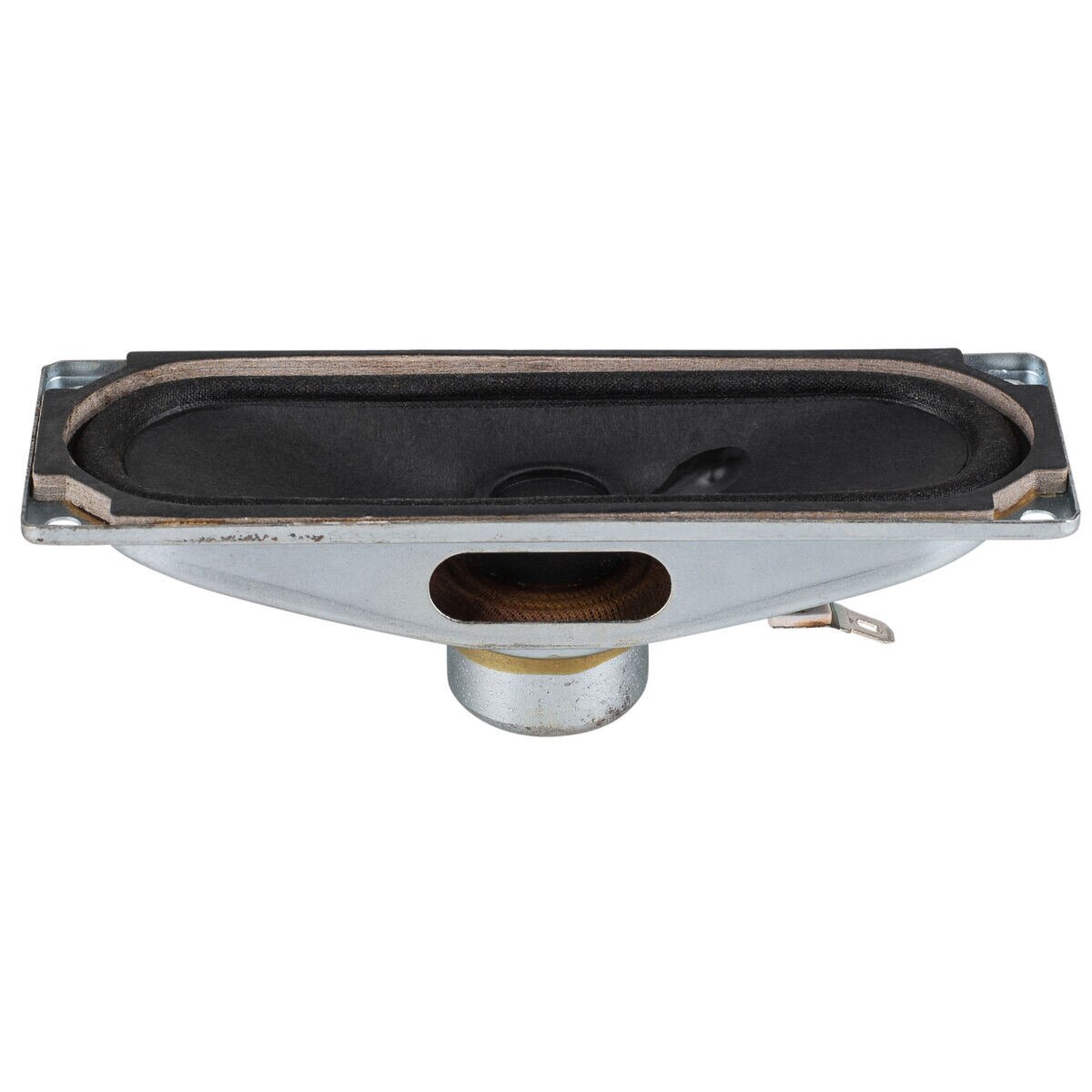

1-3/4" x 5" 10W Speaker 8 Ohm SG0102LBNA | 77

1-3/4" x 5" 10W Speaker 8 Ohm SG0102LBNA | 77. Part Number: 289-2226 by Factory Buyouts.

Factory Buyouts . SG0102LBNA

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product Name1-3/4" x 5" 10W Speaker 8 Ohm SG0102LBNA | 77
UPC848864048352
Weight0.2
WeightUnitlbs
depth, length1.3
diameter, height, width5.1
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelSG0102LBNA
qtyInStock0
SKU, Part Number289-2226
snippet1-3/4" x 5" 10W Speaker 8 Ohm SG0102LBNA | 77. Part Number: 289-2226 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter1 x 5"
Power Handling (RMS)10 Watts
Impedance8?
Frequency Response225 to 12,000Hz
Sensitivity74.02dB 2.83V/1m
Resonant Frequency (Fs)224.1Hz
DC Resistance (Re)6.9?
Voice Coil Inductance (Le)0.1762mH
Mechanical Q (Qms)4.821
Electromagnetic Q (Qes)5.195
Total Q (Qts)2.501
Compliance Equivalent Volume (Vas)0.02662ft?
Cone MaterialPaper
Surround MaterialCloth
Basket / Frame MaterialSteel
Magnet MaterialNeodymium
Overall Outside Diameter5.1 x 1.77"
Baffle Cutout Diameter4.74 x 1.53"
Depth1.3"
# Mounting Holes4

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com289-222611
