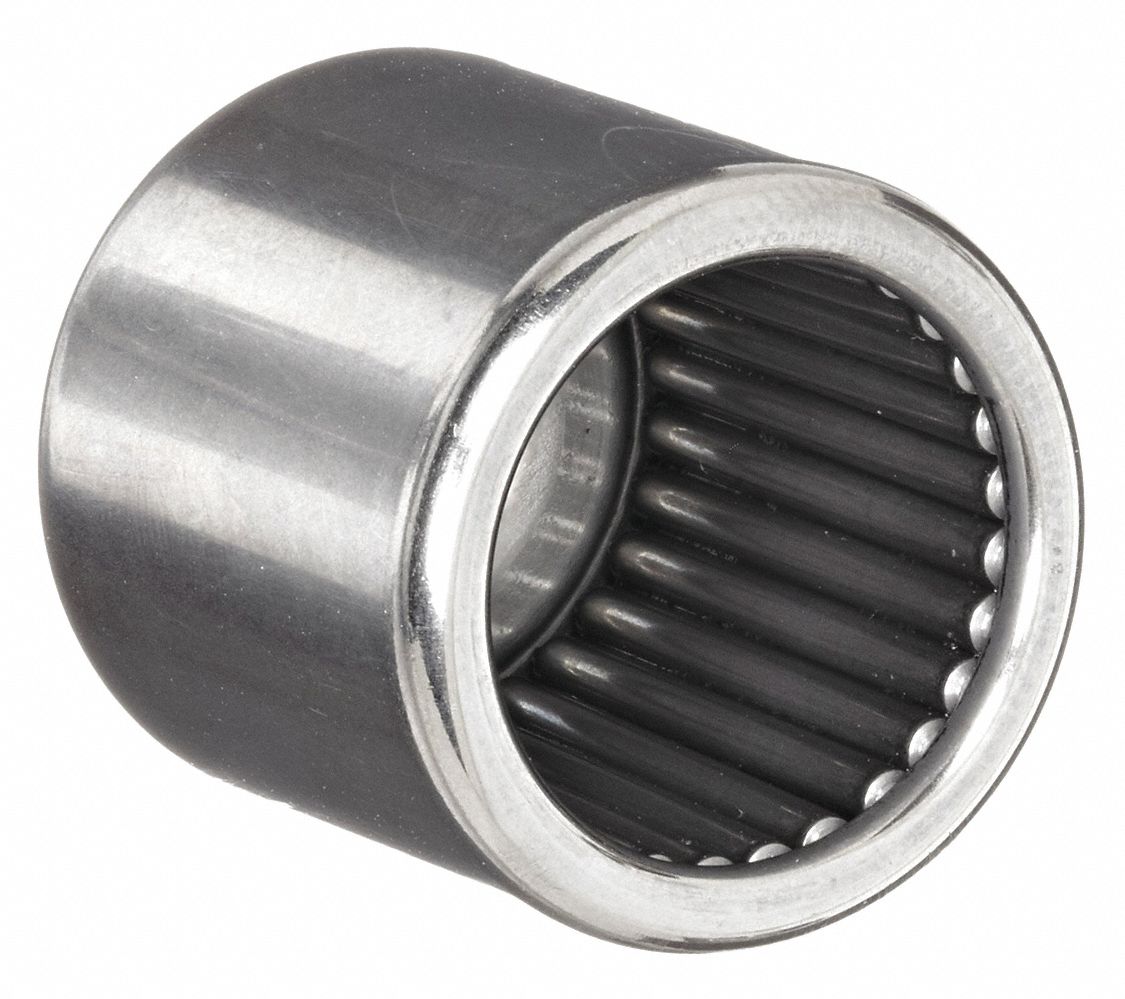

Needle Roller Bearing, Bearing Industry Number 451, Bearing Design M-1, Bore Diameter 1/4 in, Cage Material Not Applicable, Closure Open, Full Complement Yes, Lubricant Material Grease, Oil, Maximum Speed 10,000 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Needle Bearing Type Drawn Cup Needle Roller Bearing, Number of Rows One, Outside Diameter 7/16 in, Overall Width 0.313 in, Ring Material Alloy Steel, Roller Material Alloy Steel, Seal Type Not Applicable
Needle Roller Bearing, Bearing Industry Number 451, Bearing Design M-1, Bore Diameter 1/4 in, Cage Material Not Applicable, Closure Open, Full Complement Yes, Lubricant Material Grease, Oil, Maximum Speed 10,000 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -4 Degrees F, Needle Bearing Type Drawn Cup Needle Roller Bearing, Number of Rows One, Outside Diameter 7/16 in, Overall Width 0.313 in, Ring Material Alloy Steel, Roller Material Alloy Steel, Seal Type Not Applicable
Gallery
Attributes
| Brand name, Manufacturer name, Brand | Koyo |
|---|---|
| Manufacturer | Koyo Koyo Torrington |
| CategoryId, CategoryIdL3 | 8160 |
| CategoryIdL1 | 31 |
| CategoryIdL2 | 17016 |
| CategoryL1 | Power Transmission |
| CategoryL2 | Bearings, V-belts & Power Transmission Equipment |
| CategoryL3 | Roller Bearings |
| CategoryL4 | Needle Roller Bearings |
| DimensionUnit | inch |
| GTIN, UPC | None |
| GraingerSku | 35UF32 |
| UnitOfMeasure | EA |
| Weight | 0.02 0.1 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Contains_liquid_contents, Memorabilia, TradeInEligible | False |
| countryOfOrigin | US |
| height | 1.1 |
| jsonUrlData | 924526ffbdad25e5923b |
| length, width | 2.3 |
| moq, multiple, tierMinQty1, Item_package_quantity, Number_of_items, PackageQuantity | 1 |
| MPN, ModelNumber, Model_number, Mpns, Number, PartNumber, Part_number | M-451 |
| qtyInStock | 0 |
| qtyInStockOverride | Drop Ship |
| SKU | G9141431 |
| tierPrice1 | 7.05 |
| url | https://www.zoro.com/koyo-needle-brg-drawn-cup-bore-0250-in-m-451/i/G9141431/ |
| Bore Dia (In ) | 0.25 in |
| Bore Dia (mm) | 6.35 mm |
| Outside Dia (In ) | 0.438 in |
| Outside Dia (mm) | 11.113 mm |
| Width (In ) | 0.312 in |
| Width (mm) | 7.92 mm |
| Overall Width | 0.313 in |
| Bore Diameter | 1/4 in |
| Outside Diameter | 7/16 in |
| Item | Needle Roller Bearing |
| Type | Drawn Cup Count ean gtin upc |
| Temp Range (F) | -4 Degrees to +248 Degrees F |
| Dynamic Load Capacity (Lb ) | 800 lb |
| Static Load Capacity (Lb ) | 830 lb |
| Static Load Capacity (N) | 3.69 N |
| Cage Material | Steel |
| Max RPM | 10,000 RPM |
| Dynamic Load Capacity (N) | 3.56 N |
| Number of Rows | One |
| Cage Material Grade, Seal Material | Not Applicable |
| Ring Material Grade | SUJ 2 |
| Bearing Industry Number | 451 |
| Lubricant Material | Grease, Oil |
| Asin | B007EDRYLE |
| Bullet_point | Drawn cup needle roller bearing with a closed end for shaft end applications with high dynamic loads Drawn steel outer shell (cup) has a reduced cross-section for use in restricted spaces Full complement of rollers for greater load capacity than caged bearings Meets standards ANSI/ABMA 18.2 and ASTM F2162 for quality assurance Through-hardened, high-carbon chromium steel rollers for heat tolerance and durability under heavy loads |
| ClassificationId | 16411291 |
| DisplayName | Needle |
| Height | 0.3125 0.6999999992859999 1.7779999999999998 1485 433 65 |
| Identifier | 00605790187506 0605790187506 605790187506 |
| IdentifierType | EAN GTIN UPC |
| Included_components | bearing |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | Koyo M-451 Needle Roller Bearing, Drawn Cup, Closed End, Open, Inch, 1/4" ID, 7/16" OD, 5/16" Width, 10000rpm Maximum Rotational Speed |
| Item_package_weight, Item_weight | 0.1 |
| Item_type_keyword | needle-roller-bearings |
| Keyword | M-451-A |
| Length | 0.4375 2.1999999977560005 5.588000000000001 |
| Link | https://m.media-amazon.com/images/I/51fvsVoVuIL._SL75_.jpg https://m.media-amazon.com/images/I/51fvsVoVuIL.jpg https://m.media-amazon.com/images/I/81vu4NhbfzL.jpg https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/16411291 |
| Material | Cageless |
| ProductType | HARDWARE_BEARING |
| Product_site_launch_date | 2012-02-27T19:30:43.145Z |
| Rank | 1135 761259 |
| ReleaseDate | 2017-03-12 |
| Specification_met | Ansi/Abma |
| Street_date | 2017-03-12T00:00:01Z |
| String_value | 1/4 5/16 7/16 |
| StrippedMpns | M451 |
| Supplier_declared_dg_hz_regulation | not_applicable |
| Title | Industrial & Scientific Needle Roller Bearings |
| Unit | centimeters inches pounds |
| Unit_count | 1.0 |
| Variant | MAIN |
| WebsiteDisplayGroup | biss_basic_display_on_website biss_display_on_website |
| WebsiteDisplayGroupName | BISS Basic |
| Width | 0.4375 1713 2.1999999977560005 5.588000000000001 500 75 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G9141431 | 1 | 1 | 1 @ $7.05 | |
| 35UF32 | 1 | 45 | 1 | 1 @ $7.50 | |
| Allied Electronics | 72387234 | 1 | 1 | ||
 simsupply.com | ZO-G9141431 | 1 | 1 | 1 @ $13.40 | |
| us.rs-online.com | 72387234 | 1 | 1 | 1 @ $5.59, 3 @ $5.42 | |
 apexindustrialautomation.com | M-451 | 1 | 1 | ||
| factorysupplyoutlet.com | LM13BB | 1 | day="4" | 1 | 1 @ $12.11 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Koyo M-451 Needle Roller Bearing, Drawn Cup, Closed End, Open, Inch, 1/4" ID, 7/16" OD, 5/16" Width, 10000rpm Maximum Rotational Speed
Brand: Koyo
Details
- Drawn cup needle roller bearing with a closed end for shaft end applications with high dynamic loads
- Drawn steel outer shell (cup) has a reduced cross-section for use in restricted spaces
- Full complement of rollers for greater load capacity than caged bearings
- Through-hardened, high-carbon chromium steel rollers for heat tolerance and durability under heavy loads
- Meets standards ANSI/ABMA 18.2 and ASTM F2162 for quality assurance
