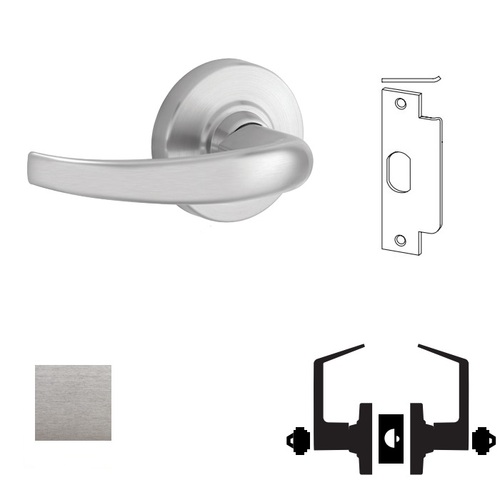

Schlage Commercial ND93PD SPA 626 ND Series Vandlgard Vestibule C123 Keyway Sparta with 13-247 Latch 10-025 Strike Satin Chrome Finish

Vandlgard Vestibule Lock Function, Grade 1, Cylindrical Lock, Conventional Cylinder, S123 Keyway, Sparta Lever, Satin Chrome The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant. A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage? ND family significantly exceeds BHMA Grade 1 requirem

Allegion . ND93PD SPA 626

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Manufacturer ParentAllegion
CategoryIdL3Mechanical Locksets
CategoryL1Windows and Door Hardware
CategoryL2Commercial and Residential Door Hardware
DimensionUnitinch
Extra Product NameSchlage Commercial ND93PD SPA 626 ND Series Vandlgard Vestibule C123 Keyway Sparta with 13-247 Latch 10-025 Strike Satin Chrome Finish
atoms, moq, multiple, tierMinQty11
diameter, height, width3.4375
height_Attrib, width_AttribRose Diameter
length4.5625
length_AttribLever Length-Inches
MPNND93PD SPA 626
qtyInStock-2
qtySourceFieldMap
tierPrice11576.5
FunctionVestibule Vandlguard
DesignSparta
Strike, Strike TypeANSI Strike
Backset2-3/4" Backset
Finish, Finish Description, Finish FamilySatin Chrome
Color Code626/US26D
Fire Rated3 Hours {A}
OriginMexico
BAA QualifiedYes
Package Height4.75
Package Length9.5
Package Volume372.28125
Package Width8.25
HandingReversible
Strike Size1-1/4" x 4-7/8"
Strike Number10-025
Knob/Lever Size4-15/16 Inch
Latch Number13-247
Latch Throw1/2 Inch
Latch TypeDeadlatch
Function DescriptionDeadlocking latch bolt by knob/levers except when outside knob/lever is locked by key inside, then by key outside.
ANSI FunctionF88
GradeANSI/BHMA Grade 1
Sub-SeriesCL_Cylindrical_Locks_schlage_commercial_342
Lever Style FamilyCurved Return Lever
ADA CompliantYES
Keyblank GroupingSCHL-C-6-1
Front Size1-1/8" x 2-1/4"
Latch Bolt MaterialStainless Steel
Cylinder TypeP-6 Pin Conventional (Keyed 5)
Lever Length-Inches4.5625 Inch
Handle TypeLever
Door Cross Bore2.125 Inch
ApplicationHealthcare; Education; Government; Office; Retail; Other Commercial Applications
Keying ChargesCCAM
Trim MaterialPressure Cast Zinc (Lever)
Function FamilyEntry/Apartment
StandardsANSI/BHMA A156.2 Series 4000; ICC A117.1; CA Fire Code; Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) Requirements for Hurricanes; Meets FF-H-106C Series 161
Rose Diameter3-7/16 Inch
Cylinder MaterialBrass
Lever StyleSPA-Sparta
Product TypeCylindrical Lock
Rose/Escutcheon TrimRound Rose
Product Projection3-1/2 Inch
FeaturesHeavy-Duty Cylindrical Lock; Able to Handle any Application; Ideal for Both New Construction and Retrofit Applications
Latch CornerSquare
Warranty10 year mechanical
KeywaySchlage C
Cylinder Type UsedConventional
Strike Lip1-3/16 Inch

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareND93PD SPA 6261-211 @ $1576.50
