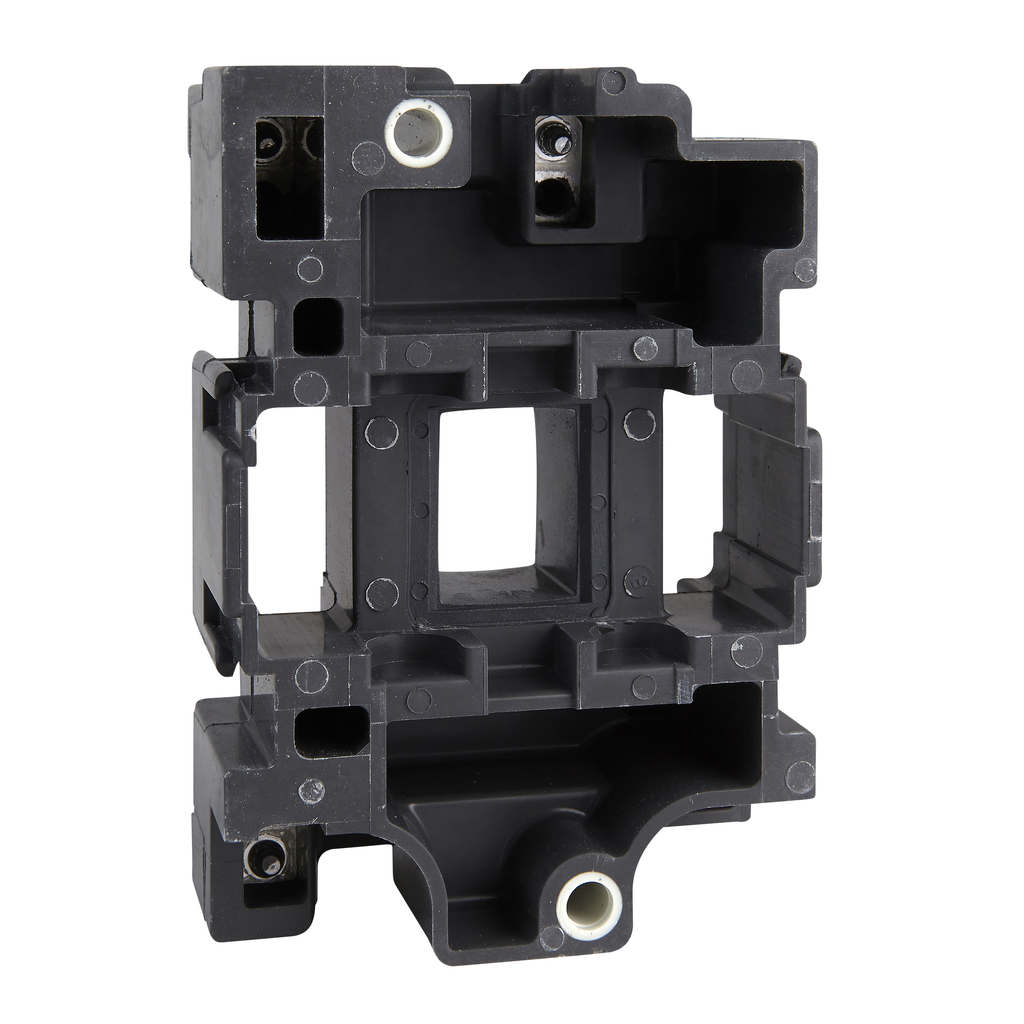

Contactor coil, TeSys Deca, LX1D6, 110V AC 50/60Hz for 80 and 95A contactor | Mayer Electric

Shop SCHNEIDER ELECTRIC at Mayer. TeSys D - contactor coil - LX1D6 - 110 V AC 50/60 Hz for 80 & 95 A contactor

Mayer Electric Supply . LX1D6F7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameContactor coil, TeSys Deca, LX1D6, 110V AC 50/60Hz for 80 and 95A contactor | Mayer Electric
UPC3389110233377
Weight0.28
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-TeSys-D-contactor-coil-LX1D6-110-V-AC-50-60-Hz-for-80-And-95-A-contactor-785901260301
jsonUrlData2633faf5f-4be0-4e15-8c29-abd20062744a
keywordsSQUARE D, Mayer SQUARE D, 785901260301, LX1D6F7
moq, multiple, tierMinQty11
MPNLX1D6F7
qtyInStock0
SKUSQDLX1D6F7
snippetShop SCHNEIDER ELECTRIC at Mayer. TeSys D - contactor coil - LX1D6 - 110 V AC 50/60 Hz for 80 & 95 A contactor
tierPrice158.66
Ambient Air Temperature For Operation-5-60 ?C
Net Weight0.28 kg
Warranty18 months
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP110205EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileN/A
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Control Circuit Voltage Limitsdrop-out 0.3...0.6 Uc 50/60 Hz 55 ?C) || operational 0.8...1.1 Uc 50 Hz 55 ?C) || operational 0.85...1.1 Uc 60 Hz 55 ?C)
Inrush Power In Va245-245 VA 60 Hz 0.75 20 ?C) || 245-245 VA 50 Hz 0.75 20 ?C)
Coil Technologywithout built-in suppressor module
Hold-In Power Consumption In Va26-26 VA 60 Hz 0.3 20 ?C) || 26-26 VA 50 Hz 0.3 20 ?C)
Heat Dissipation6-10 W 50/60 Hz
Average Resistance26 Ohm 20 ?C
[Uc] Control Circuit Voltage110 V AC 50/60 Hz
Control Circuit TypeAC 50/60 Hz
Product Or Component Typecontactor coil
RangeTeSys
Inductance Of Closed Circuit1.7 H
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability4 Mcycles
Product CompatibilityLC1D40 || LC1D50 || LC1D65...D95
Device Short NameLX1D6

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLX1D6F7111 @ $58.66
