Burndy 25019916 Cu Compression Lug, 2 Hole, 500 Kcmil YA382NTCFX. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

Burndy 25019916 Cu Compression Lug, 2 Hole, 500 Kcmil YA382NTCFX. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7

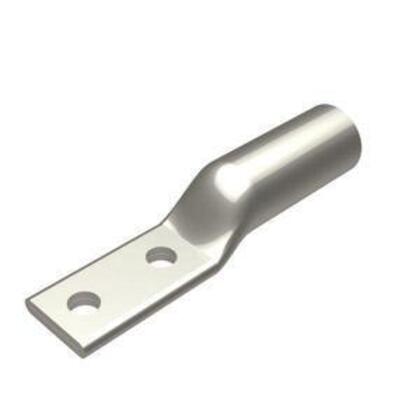

Burndy . YA382NTCFX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitinch
diameter, height, length1.25
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple1
MPN, SKUYA382NTCFX
qtyInStock0
snippetBurndy 25019916 Cu Compression Lug, 2 Hole, 500 Kcmil YA382NTCFX. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width1.84
width_AttribDimension - Pad Width inch
Color CodePink
Connector TypeTerminal
Die IndexL99
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
Trade NameHYLUG™
TypeLong Barrel, Tin Plated
Dimension - B Length fraction2-13/16 in
Dimension - B Length inch2.81 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm172 mm
Dimension - Length Overall inch6.77 in
Dimension - N inch0.63 in
Dimension - Outside Diameter inch1.25 in
Dimension - Pad Width inch1.84 in
Dimension - Strip Length inch3-3/16
Dimension - Z inch0.65 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size, Conductor - Copper DLO Size Range535.3 (1325/#24) DLO
Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range500 kcmil
Certification - CSA Approved, UL ListedYes
Certification - UL Recognized, Certification - cULusNo
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYA382NTCFX11
usmegastore.comYA382NTCFX1-211 @ $91.07
Platt.com209947111
GalcoYA382NTCFX-BURN10101 @ $116.89
Crescent Electric Supply Co275235211
