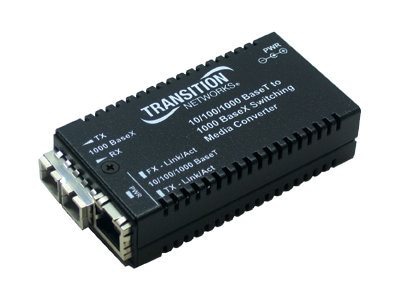

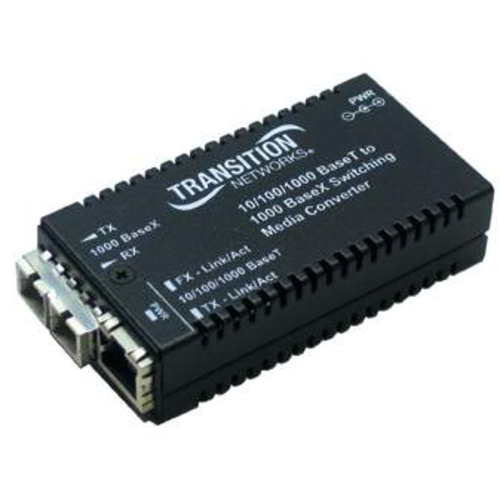

Transition Networks . M/GE-PSW-LX-01-NA

The Transition Networks 2-port RJ-45 to SC mini Gigabit Ethernet media converter is perfect for integrating fiber optic cabling into a 10/100/1000 UTP environment. It features unit and port LEDs for status information. This converter supports auto-negotiation, fixed link pass through and automatic link restoration for efficient troubleshooting. The AutoCross feature in this converter automatically detects and configures the twisted pair port to the correct MDI or MDI-X configuration. - Mini Gigabit Ethernet media converter is a cost-effective method for integrating fiber optic cabling into a 10/100/1000 UTP environment. - Dimensions: 0.85"H x 1.8"W x 3.3"D. - Suitable for use with PC. - Comes in black color. - Interfaces/ports: One 10/100/1000Base-T RJ-45, one single mode SC. - Power supply: Unit accepts 5 - 28 VDC wall mount AC adapter - 12 VDC 400 mA, Consumption: 3.15 W. - LEDs: PWR (power) - (below RJ-45) ON = lit for normal operation, FX-link/act (fiber link/activity) - (upper left on RJ-45), ON = link. - IEEE standards: IEEE 802.3. - Frame size: 1632 bytes untagged, 1628 bytes tagged. - Maximum distance supported: 6.21 mile. - Features auto-MDI/MDIX, auto-negotiation, automatic link restoration, fixed link pass through and space saving design. - Temperature: 0 - 50 deg C operating, -15 - 65 deg C storage, Humidity: 5 - 95 percent non-condensing. - Meets UL, CSA, CISPR22/EN55022 Class A + EN55024, EN60950 Class A, FCC Class A, CE Mark certifications and standards. - Weight: 2 lbs. - Sold as 1 Each.

The mini media converters provide a cost-effective method for integrating fiber optic cabling into a 10/100/1000 UTP environment. With its miniature size, the mini offers a space saving alternative while it converts copper to fiber with the smallest footprint available in the industry.
