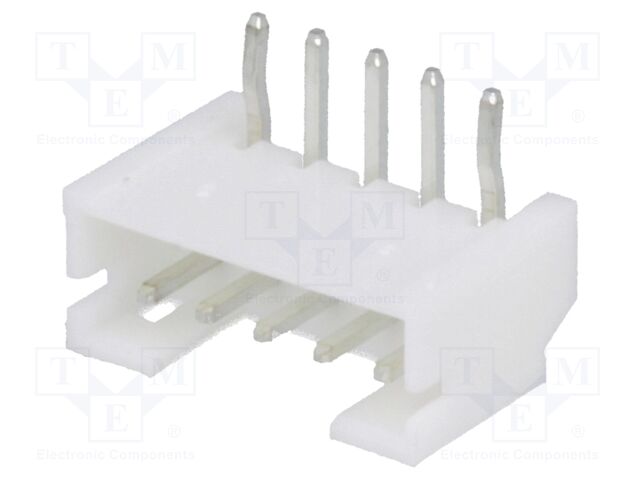

NINIGI NXW-05K | Socket; wire-board; male; 2mm; PIN: 5; THT; 1A; tinned; -25?85?C; 100V
NINIGI NXW-05K | Socket; wire-board; male; 2mm; PIN: 5; THT; 1A; tinned; -25?85?C; 100
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | NINIGI |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Signal connectors |
| CategoryL3 | Raster signal connectors |
| CategoryL4 | Raster signal connectors 2,00mm |
| DimensionUnit | mm |
| Extra Product Name | NINIGI NXW-05K | Socket; wire-board; male; 2mm; PIN: 5; THT; 1A; tinned; -25?85?C; 100V |
| atoms | 1 |
| jsonUrlData | 5d740a138436a95863fb85b4930cb83d.5 |
| jsonUrlData2 | 2917cf0d5fd2f5eeaf85 |
| keywords | NINIGI, NXW-05K, Connectors, Signal connectors, Raster signal connectors, Raster signal connectors 2,00mm |
| moq, multiple, tierMinQty1 | 20 |
| MPN, SKU | NXW-05K |
| qtyInStock | 12080 |
| snippet | NINIGI NXW-05K | Socket; wire-board; male; 2mm; PIN: 5; THT; 1A; tinned; -25?85?C; 100 |
| tierMinQty2 | 100 |
| tierMinQty3 | 500 |
| tierMinQty4 | 2000 |
| tierMinQty5 | 5000 |
| tierPrice1 | 0.0865 |
| tierPrice2 | 0.0692 |
| tierPrice3 | 0.0519 |
| tierPrice4 | 0.04325 |
| tierPrice5 | 0.0346 |
| width | 12.0 |
| width_Attrib | Width |
| Connector | socket |
| Type of connector | wire-board |
| Kind of connector | male |
| Contacts pitch | 2mm |
| Number of pins | 5 |
| Electrical mounting | THT |
| Maximum current | 1A |
| Contact plating | tinned |
| Flammability rating | UL94V-0 |
| Operating temperature | -25...85?C |
| Type of pin configuration | 1x5 |
| Max operating voltage | 100V |
| Max contact resistance: | 20m? |
| Spatial orientation | angled 90? |
| Enclosure material | polyamide |
| Width | 12mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| NXW-05K | 20 | 12080 | 20 | 20 @ $0.09, 100 @ $0.07, 500 @ $0.05, 2000 @ $0.04, 5000 @ $0.03 |
