ZXTN2011GTA Diodes Incorporated | Discrete Semiconductor Products | DigiKey

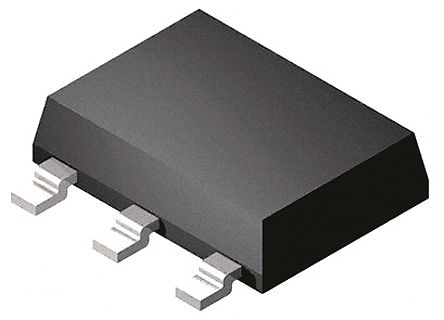

Bipolar (BJT) Transistor NPN 100 V 6 A 130MHz 3 W Surface Mount SOT-223-3
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Diodes Incorporated |
|---|---|
| Extra Product Name | ZXTN2011GTA Diodes Incorporated | Discrete Semiconductor Products | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| MPN | ZXTN2011GTA |
| qtyInStock | 530 |
| SKU | 790202 |
| snippet | Bipolar (BJT) Transistor NPN 100 V 6 A 130MHz 3 W Surface Mount SOT-223-3 |
| tierMinQty2 | 10 |
| tierMinQty3 | 100 |
| tierMinQty4 | 500 |
| tierPrice1 | 1.0005 |
| tierPrice2 | 0.8993 |
| tierPrice3 | 0.700925 |
| tierPrice4 | 0.5790249999999999 |
| Category | Discrete Semiconductor Products |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 6 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 220mV @ 500mA, 5A |
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 2A, 2V |
| Power - Max | 3 W |
| Frequency - Transition | 130MHz |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Base Product Number | ZXTN2011 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 790202 | 1 | 530 | 1 | 1 @ $1.00, 10 @ $0.90, 100 @ $0.70, 500 @ $0.58 |
| Allied Electronics | 70551088 | 50 | 10 | ||
| Hotenda | H2048733 | 1 | 1000 | 1 | 1 @ $0.38 |
| 169-7327 | 1000 | 1000 | 1000 @ $0.35 | ||
| Win Source | ZXTN2011GTA | 1 | 1079 | 1 | |
| Future Electronics | C011944626 | 2000 | 2000 | 2000 @ $0.50 | |
 swatee.com | ZXTN2011GTA | 1 | 652 | 1 | 1 @ $1.87 |
| Digi-Key | 790228 | 1000 | 48 | 1000 | 1 @ $1.00, 10 @ $0.90, 100 @ $0.70, 500 @ $0.58 |
| RS Delivers | 822-2043 | 1 | 1 | 1 @ $0.92 | |
| RS Delivers | 822-2043P | 1 | 1 | 1 @ $0.92 | |
 Newark | 29AK9238 | 1 | 934 | 1 | 1 @ $0.92, 10 @ $0.78, 25 @ $0.73, 50 @ $0.68, 100 @ $0.62, 250 @ $0.56, 500 @ $0.51, 1000 @ $0.45 |
| Digi-Key | 1870276 | 1 | 1 | ||
| TME | ZXTN2011GTA | 1 | 1 | 1 @ $0.76, 5 @ $0.57, 25 @ $0.52, 100 @ $0.46, 500 @ $0.38 |
