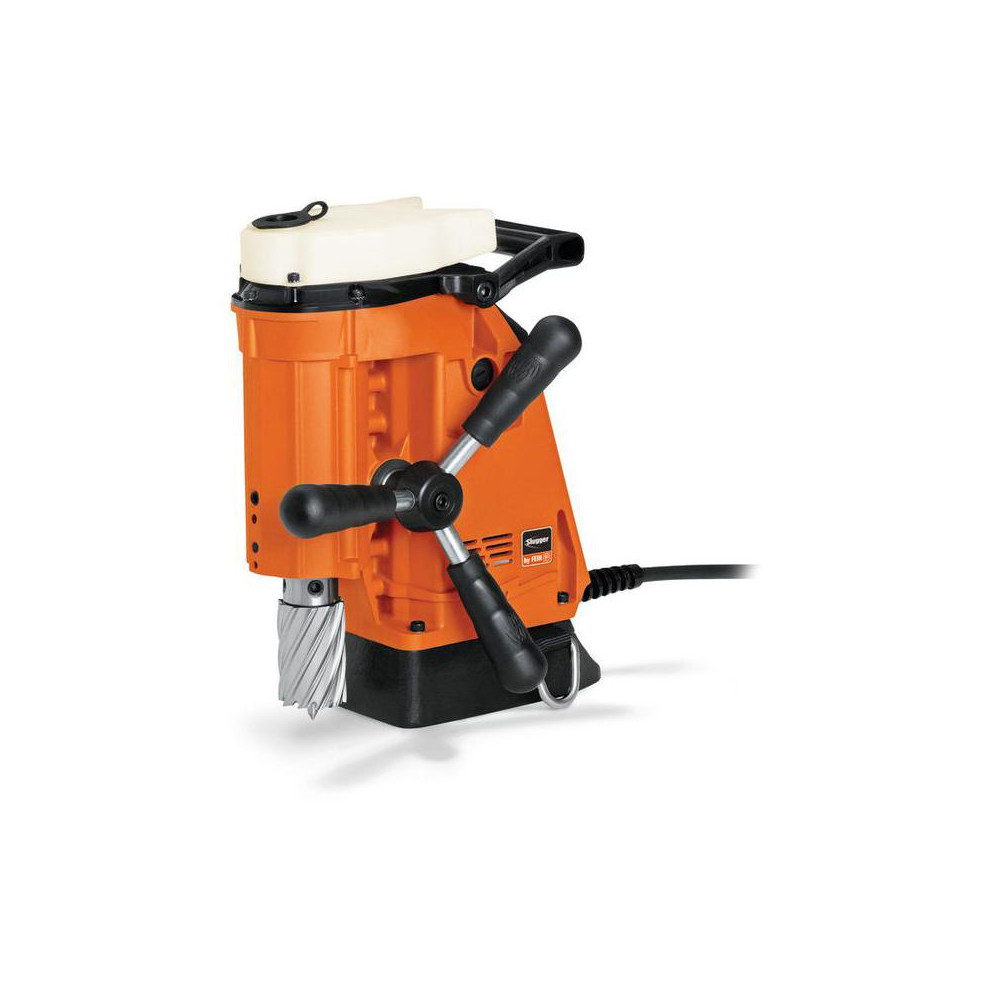

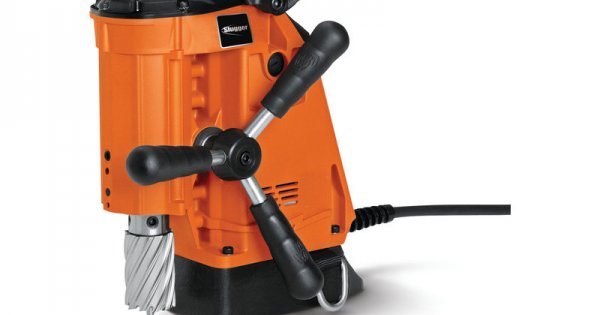

The JHM Magforce is a compact core drilling unit for drilling operations in tight spaces. The JHM Magforce is extremely light and is especially suitable for installation work on site. It is excellent for bridge work, fabrication and plant maintenance.

JHM Magforce Mag Drill unit up to 1-5/8 [40] in[mm] Compact with fixed drill motor for work in confined spaces. More Details Extremely compact with ideal power to weight ratio for work at heights and in confined spaces. Hand feed wheel mounts on either side for use in special situations. Internal motor cable routing prevents unintended threading or hanging up on the workpiece. Internal cooling. Solid die-cast aluminum construction. Stationary drill motor. Quill feed spindle eliminates field maintenance and adjustments and provides positive (mechanical) slug ejection. Power consumption 1,100 W Power output 610 W Full load speed 280 rpm No load speed 450 rpm HSS cutter max. dia. 1-5/8 [40] in[mm] Cutter max. drilling depth 2 [50] in[mm] Cutter holder 3/4" straight shank Stroke 2-9/16 [65] in[mm] Magnetic holding force 2023 [9,000] lbs[N] Cable with plug 13 [3.8] ft[m] Weight 28.88 lbs 1 case 1 coolant tank 1 safety strap 1 chip hook 4 pilot pins 1 allen key 5 mm 1 chip guard
