3M

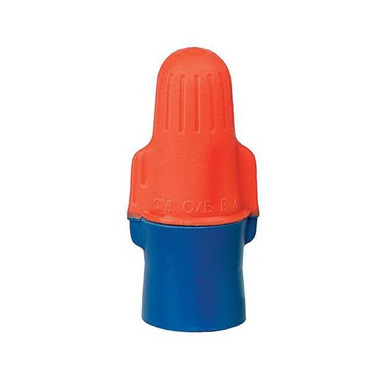

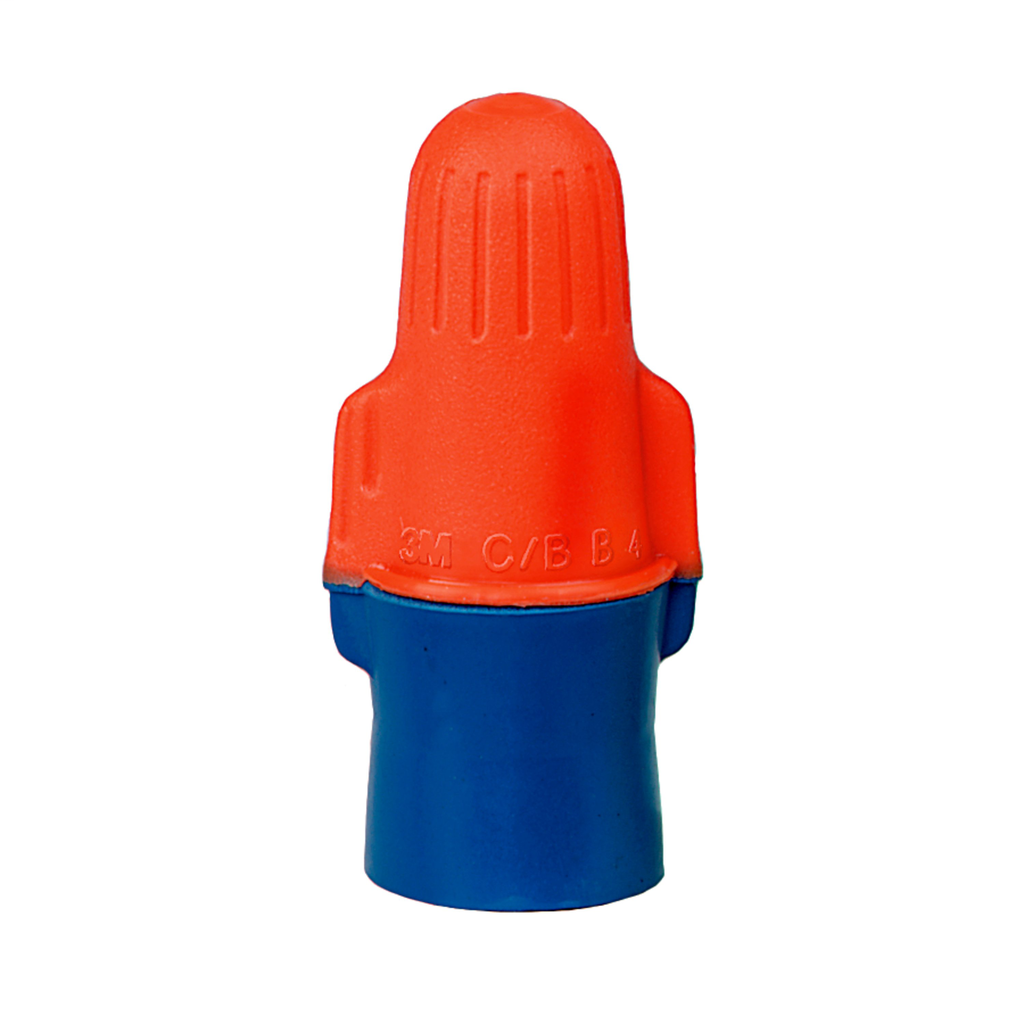

Conn Twist-On Splice 22-12AWG Blue/Orange 3M Performance Plus Wire Connector

3M . O/B+POUCH

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product Name3M
DimensionUnitinch
GraingerSku1DLY8
UPC10054007431524
UnitOfMeasurePK
Weight3.21
WeightUnitlbs
atoms100
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height5.95
jsonUrlData924526ffbdad25e5923b
length8.59
moq, multiple, tierMinQty11
MPNO/B+POUCH
qtyInStock726
qtyInStockOverride-2
SKUG2176657
tierPrice121.93
urlhttps://www.zoro.com/3m-twist-on-wire-connector-22-12-awg-pk100-obpouch/i/G2176657/
width5.88
Promotion RestrictionNot eligible for promotion
ColorBlue/Orange
Min Single Wire Size, Minimum Single Wire Size22 AWG
Max Single Wire Size, Maximum Single Wire Size12 AWG
SeriesPerformance Plus
Max Voltage600V AC
Wire Connector StyleStandard
Min Wire Combination, Minimum Wire Combination(2) 22 AWG
Max Wire Combination, Maximum Wire Combination(3) 12 AWG
Height0.76 in
Width, Overall Width0.49 in
ApplicationWide Range
ItemTwist On Wire Connector
StandardsCE Marking, CSA Certified, UL Listed
Special FeaturesDual Color Coded, Flexible Spring Expands for Freater Wire Range and Reuse, Strong Bite for a Secure, Reliable Connection
Maximum Conductors6
For Wire Size12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG
Insulation MaterialPolypropylene/Thermoplastic Elastomer
Maximum Operating Temperature221 Degrees F
UL 94 Flammability RatingV-2
Overall Height1.03 in
RoHS CompliantYes
High Temperature ApplicationNo
Maximum Voltage600 V
For Conductor MaterialCopper
Wire Size Ranges, Twist-On Wire Size Ranges22 AWG - 12 AWG
Strip Length5/8 in
Contact MaterialSteel
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2176657172611 @ $21.93
Allied Electronics7108417811
Newark13AC7966101010 @ $23.80, 25 @ $21.30, 50 @ $20.74, 100 @ $18.36, 250 @ $16.21, 500 @ $15.87
Digi-Key3M156560-ND1111001 @ $19.38, 10 @ $18.00, 25 @ $16.15, 50 @ $15.69, 100 @ $13.85, 250 @ $12.92, 500 @ $12.65
Hisco00054007431527-3119611
Do It Best50258111
Crescent Electric Supply CoO/B+POUCH11
Platt.com021202011191011 @ $0.21
i-componentsO/B+POUCH1743211 @ $6.53, 10 @ $6.07, 25 @ $5.44, 50 @ $5.29
Butler Supply878411
sustainablesupply.comC11653041-211 @ $22.53
Dale-ElectricO/B+BOX11
kirbyrisk.com329841010016001001 @ $0.24
simsupply.comZO-G217665715711 @ $28.81
standardelectricsupply.com233905211
jensentools.com10020585110011 @ $0.20
All-Spec00054007431527-31196111 @ $17.78
mayerelectric.comMMMOB+POUCH111 @ $0.13
Graybar9723180510016001001 @ $16.17
ZoroG704421955100010001 @ $0.19
Crescent Electric Supply Co211495711
kirbyrisk.com3579088100010001 @ $0.24
us.rs-online.com7108417812411 @ $23.93, 5 @ $22.97, 10 @ $22.49, 25 @ $22.02, 50 @ $21.54, 100 @ $21.06
Dale-ElectricO/B+POUCH111
