Osg

http://cdn.shopify.com/s/files/1/0332/9992/2988/products/34ZG65_AS01_6f99732b-7a98-4699-83a6-94f87fbe5e10_1024x.jpg

Osg . 859515511

Gallery

Attributes

Brand name, Manufacturer name, Extra Product NameOsg
ManufacturerOsg OSG
DimensionUnitinch
GraingerSku34ZD22
UPCNone
UnitOfMeasureEA
Weight0.1
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginJP
height, width0.5
jsonUrlData924526ffbdad25e5923b
length2.25
moq, multiple, tierMinQty1, Case, PackageQuantity1
MPN, Part Number, PartNumber859515511
qtyInStock, Number of Flutes2
qtyInStockOverride-2
SKUG1759269
tierPrice117.59
urlhttps://www.zoro.com/osg-screw-machine-drill-bit-155-mm-size-140-degrees-point-angle-high-speed-steel-tialn-finish-859515511/i/G1759269/
Product Group, ProductGroupBISS
ItemScrew Machine Drill Bit
Drill Bit GroupingDrill Bit
Drill Bit Dimension Type, Measurement SystemMetric
Drill Bit Size1.55 mm
Decimal Equivalent0.0610
Drill Bit Point Angle140 Degrees
Drill Bit Material, Material - MachiningHigh Speed Steel
Drill Bit Finish, Finish - MachiningTiAlN
Flute TypeFast Spiral
Flute Length, Maximum Drilling Depth10.00 mm
Shank Dia3.00 mm
Sizes Included1.55mm
List Number1100
Overall Length42.00 mm
ApplicationFor Drilling Aluminum Alloys, Aluminum Casting, Low Carbon Steel, 300 Stainless Steel and 400 Stainless Steel
Depth:Dia Ratio, Depth x Dia Ratio3xD
Grade, Material Grade - MachiningGeneral Purpose
Coolant Through, Sheeter DrillNo
Point TypeFour Facet Point
Cutting DirectionRight Hand
StandardsNot Rated
Coolant FedNon-Coolant Through
SeriesEX-SUS-Gold
Drill Diameter Tolerance+0.000/-0.014mm
Primary Material ApplicationAluminum, Stainless Steel, Steel
Drill Bit Point Type4 Facet Point
Primary Material Application ISO CodeM, N, P
Drill Length ClassScrew Machine Length
Secondary Material Application ISO CodeM, P
Secondary Material ApplicationMedium Carbon Steel, Stainless Steel
Shank Type - MachiningStraight
Shank Length32.00 mm
Country of Origin (subject to change)Japan
AsinB071VDGPGK
Brand, Label, Man, Publisher, StudioOSG
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161
CatalogNumberListZO G1759269
FeaturePrice For: Each Coolant Through: No Drill Bit Grouping: Drill Bit Item: Screw Machine Drill Bit Drill Bit Finish: TiAlN Grade: General Purpose Application: For Drilling Aluminum Alloys, Aluminum Casting, Low Carbon Steel, 300 Stainless Steel and 400 Stainless Steel Point Type: Four-Facet Point Overall Length: 42.00mm Decimal Equivalent: 0.0610 Drill Bit Point Angle: 140 Degrees
ProductTypeNameELECTRONIC_COMPONENT

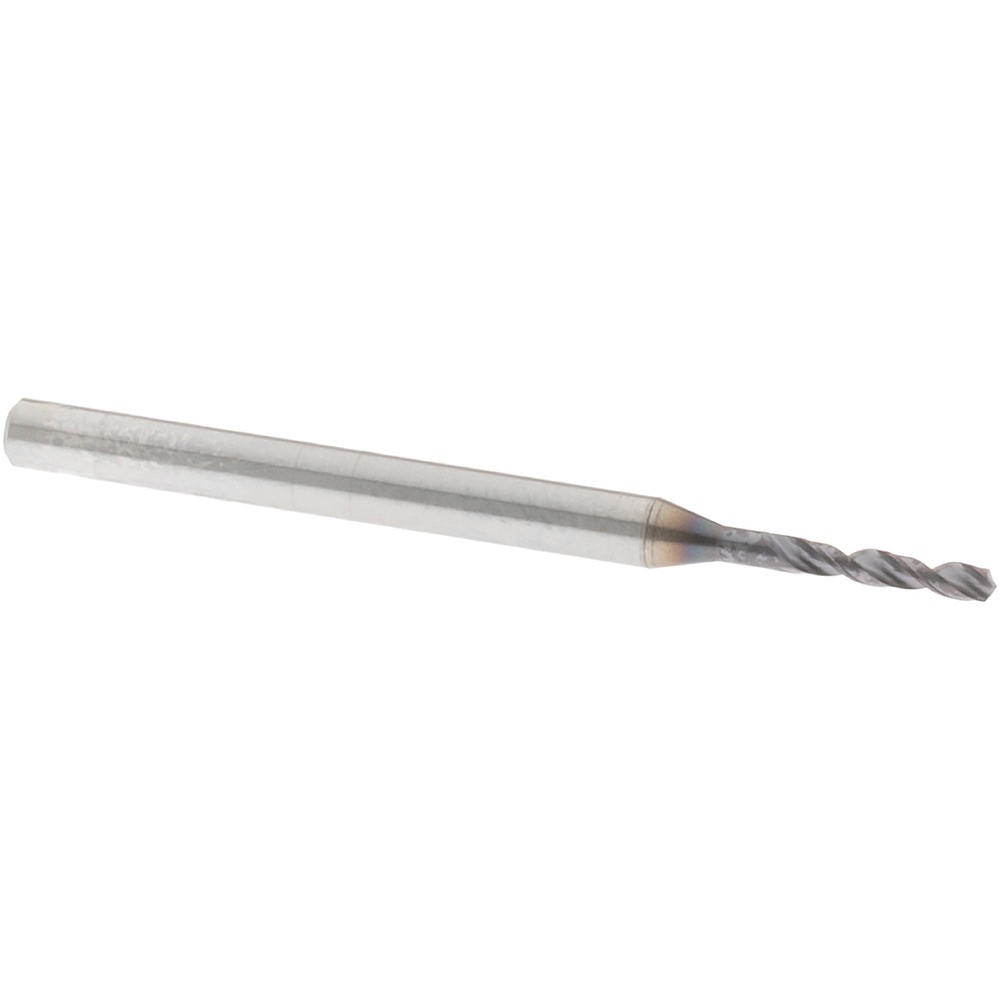

TitleScrew Machine Drill, 1.55mm, HSSE, TiAlN

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG17592691211 @ $17.59
sustainablesupply.comC27988221-211 @ $22.94
tmttoolbox.com8595155111-211 @ $20.14
National Supply Network685831291-211 @ $17.12

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Screw Machine Drill, 1.55mm, HSSE, TiAlN
Brand: OSG
Catalog
FeaturePrice For: Each Coolant Through: No Drill Bit Grouping: Drill Bit Item: Screw Machine Drill Bit Drill Bit Finish: TiAlN Grade: General Purpose Application: For Drilling Aluminum Alloys, Aluminum Casting, Low Carbon Steel, 300 Stainless Steel and 400 Stainless Steel Point Type: Four-Facet Point Overall Length: 42.00mm Decimal Equivalent: 0.0610 Drill Bit Point Angle: 140 Degrees
CategoryIndustrial & Scientific
MPN859515511
Product groupBISS
Product typeELECTRONIC_COMPONENT
ManufacturerOSG
