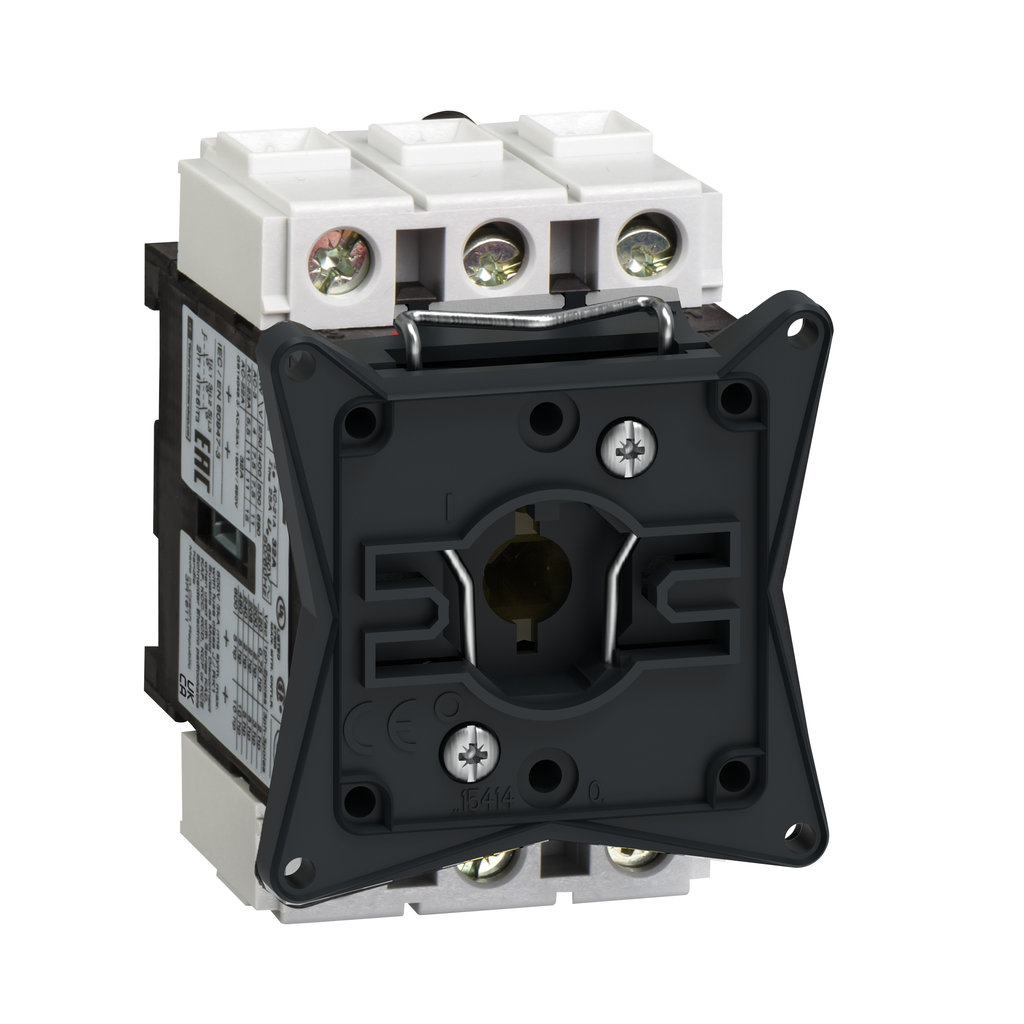

As an Amazon Associate, we earn from qualifying purchases. Home » Mayer Electric Supply » V02 TeSys VARIO - Switch body for switch-disconnector - 3 poles - 12 A | Mayer Electric Mayer Electric Supply . V02 Gallery Attributes Brand name, Manufacturer name, ManufacturerMayer Electric Supply DimensionUnitmm Extra Product NameTeSys VARIO - Switch body for switch-disconnector - 3 poles - 12 A | Mayer Electric UPC785901696650 Weight0.2 WeightUnitkg Weight_AttribNet Weight depth, length60.0 height74.0 height_AttribHeight jsonUrlData/Product/SCHNEIDER-ELECTRIC-TeSys-VARIO-Switch-body-for-switch-disconnector-3-poles-12-A-785901696650 jsonUrlData23a2df548-c9ab-49a4-bf1a-abd200634b94 length_AttribDepth moq, multiple, tierMinQty11 MPNV02 qtyInStock0 SKUSQDV02 tierPrice162.97 width55.0 width_AttribWidth Product Or Component Typeswitch body Product NameTeSys VARIO RangeTeSys Device Short NameV Warranty18 months Network Frequency50/60 Hz [Ue] Rated Operational Voltage690 V AC 50/60 Hz Height74 mm Intermittent Duty Class30 [Ith] Conventional Free Air Thermal Current12 A Mounting Supportplate || symmetrical rail Network TypeAC || DC [Ithe] Conventional Enclosed Thermal Current10 A Net Weight0.2 kg Performance Levelhigh performance [Uimp] Rated Impulse Withstand Voltage8 kV Making Capacity120 A 400 V AC-21A || 120 A 400 V AC-22A || 120 A 400 V AC-23A Connections - Terminalspower circuit screw clamp terminals 10-10 mm? solid || power circuit screw clamp terminals 6-6 mm? flexible - with cable end Contacts Type And Composition3 NO [Icm] Rated Short-Circuit Making Capacity1 kA 400 V at Ipeak Electrical Durability100000 cycles AC-21 || 30000 cycles DC-1 || 30000 cycles DC-2 || 30000 cycles DC-3 || 30000 cycles DC-4 || 30000 cycles DC-5 Suitability For Isolationyes [Ie] Rated Operational Current : 8 1 A AC-23 Ue400 V Mechanical Durability100000 cycles Poles Description3P Width55 mm Tightening Torquepower circuit 2.1-2.1 N.m screw clamp terminals Depth60 mm Breaking Capacity120 A 400 V AC-21A) || 120 A 400 V AC-22A) || 120 A 400 V AC-23A) Rated Operational Power In W3 kW 400...415 V AC-3) || 4 kW 500 V AC-3) || 1.5 kW 230...240 V AC-3) || 5.5 kW 500 V AC-23A) || 5.5 kW 690 V AC-3) || 7.5 kW 690 V AC-23A) || 3 kW 230...240 V AC-23A) || 4 kW 400...415 V AC-23A) Rated Conditional Short-Circuit Current10 kA 400 V 12 A aM || 10 kA 400 V 12 A gG [Icw] Rated Short-Time Withstand Current300 A 400 V 1 s Rohs Exemption Information, Mercury Free, Pvc Free, Toxic Heavy Metal FreeYes Environmental DisclosureENVPEP110227EN Sustainable Offer StatusGreen Premium product Reach RegulationReference contains Substances of Very High Concern above the threshold WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information. Eu Rohs DirectiveCompliant Halogen Content PerformanceHalogen free product Product CertificationsUL || CSA || GL || UKCA Ambient Air Temperature For Operation-20-50 ?C StandardsIEC 60947-3 Ip Degree Of ProtectionIP20 conforming to IEC 60529 Protective TreatmentTC Mechanical Robustnessvibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27 Fire Resistance960 ?C IEC 60695-2-1 Distributor offers SellerSKUMOQIn stockMultiplePrices mayerelectric.comSQDV02111 @ $62.97
