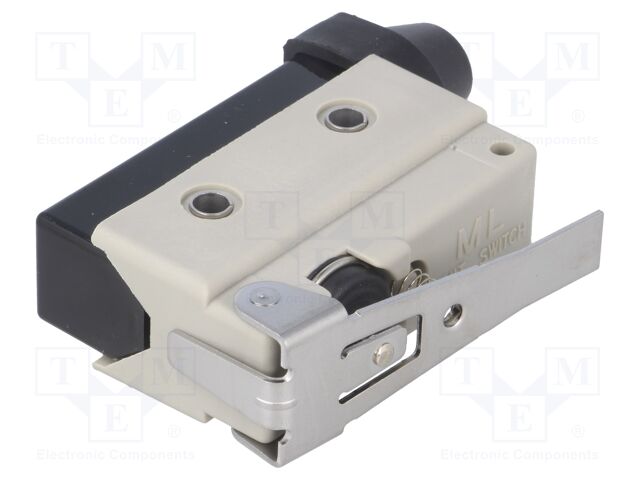

PANASONIC AZ7140 | Limit switch; angled lever; SPDT; 10A; max.250VAC; max.125VDC
PANASONIC AZ7140 | Limit switch; angled lever; SPDT; 10A; max.250VAC; max.125VD
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | PANASONIC |
|---|---|
| CategoryL1 | Automation |
| CategoryL2 | Regulation and Control |
| CategoryL3 | Limit Switches |
| Extra Product Name | PANASONIC AZ7140 | Limit switch; angled lever; SPDT; 10A; max.250VAC; max.125VDC |
| atoms, moq, multiple | 1 |
| jsonUrlData | 5ccb6ccdf7bf96ad2b1cfef3ad65b908. |
| jsonUrlData2 | 260e12a0b6de776909ec |
| keywords | PANASONIC, AZ7140 |
| MPN, SKU | AZ7140 |
| qtyInStock | 0 |
| snippet | PANASONIC AZ7140 | Limit switch; angled lever; SPDT; 10A; max.250VAC; max.125VD |
| Type of sensor | limit switch |
| Kind of actuator | angled lever |
| Output configuration | SPDT |
| Contact current max | 10A |
| Switched voltage | max. 125V DC, |
| Connection | screw terminals |
| IP rating | IP64 |
| Body dimensions | 21.4x51x54mm |
| Number of mounting holes | 2 |
| Operating temperature | -20...60?C |
| Body material | metal, |
| AC contacts rating @R | 10A / 250V AC |
| DC contacts rating @R | 0.4A / 115V DC |
| Mounting holes pitch | 25mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ7140 | 1 | 1 |
