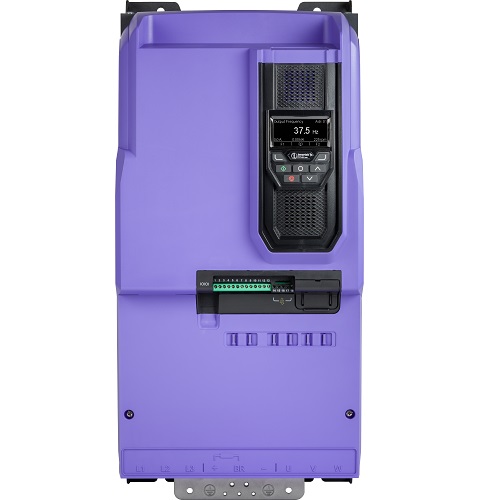

Invertek ODP-2-64060-3HF42-MN 45kW 60Hp 90A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP20 OptiDrive P2 Performance VFD

Shop Invertek ODP-2-64060-3HF42-MN and trust MRO to be your reliable Invertek supplier to experience the difference that quality and expertise can make. Trusted since 1898. Fast, Free Shipping.

Invertek . ODP-2-64060-3HF42-MN

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerInvertek
CategoryL1Automation
CategoryL2Speed Controllers & VFDs
CategoryL3AC Vector Drives
CategoryL4Three Phase
DimensionUnitinch
Extra Product NameInvertek ODP-2-64060-3HF42-MN 45kW 60Hp 90A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP20 OptiDrive P2 Performance VFD
Voltage, Input voltage380/480V
Weight35
WeightUnitlbs
Weight_AttribPackaged dimensions weight
depth, length12.6
height24.1
height_AttribHeight
length_AttribDepth
moq, multiple, tierMinQty11
MPNODP-2-64060-3HF42-MN
qtyInStock0
SKU6092866
snippetShop Invertek ODP-2-64060-3HF42-MN and trust MRO to be your reliable Invertek supplier to experience the difference that quality and expertise can make. Trusted since 1898. Fast, Free Shipping.
tierPrice14032.04
width14.763779527559056
width_AttribPackaged dimensions width
Frame, Drive dimensions size6A
Height24.1 in
Depth12.6 in
Rated power45 kW/60 HP
Phase, Input phases3
Width (in)11.3
Supply fuse or MCB (type B)125 A
Packaged dimensions depth780 mm (30.71 in)
Supply current continuous83.5 A
Drive dimensions weight32 kg (70.55 lbs)
Max motor cable size, Max supply cable size150 mm? (0.23 in?)
Brake transistorInternal
Supply voltage380-480 V
Output current90 A
Drive dimensions fixings-
Drive dimensions depth320 mm (12.6 in)
Packaged dimensions weight35 kg (77.16 lbs)
Max motor cable length100 m (328 ft)
Output voltage0 - supply voltage
Drive dimensions height614 mm (24.17 in)
EMC filterInternal EMC
DisplayTFT display
Packaged dimensions height380 mm (14.96 in)
Motor output rating45 kW (60 HP)
Drive dimensions width286 mm (11.26 in)
PCB coatingStandard
EnclosureIP20
Packaged dimensions width375 mm (14.76 in)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply6092866111 @ $4032.04
vfds.comODP-2-64060-3HF42-MN111 @ $4950.00
driveswarehouse.comODP-2-64060-3HF42-MN1-211 @ $4032.04
