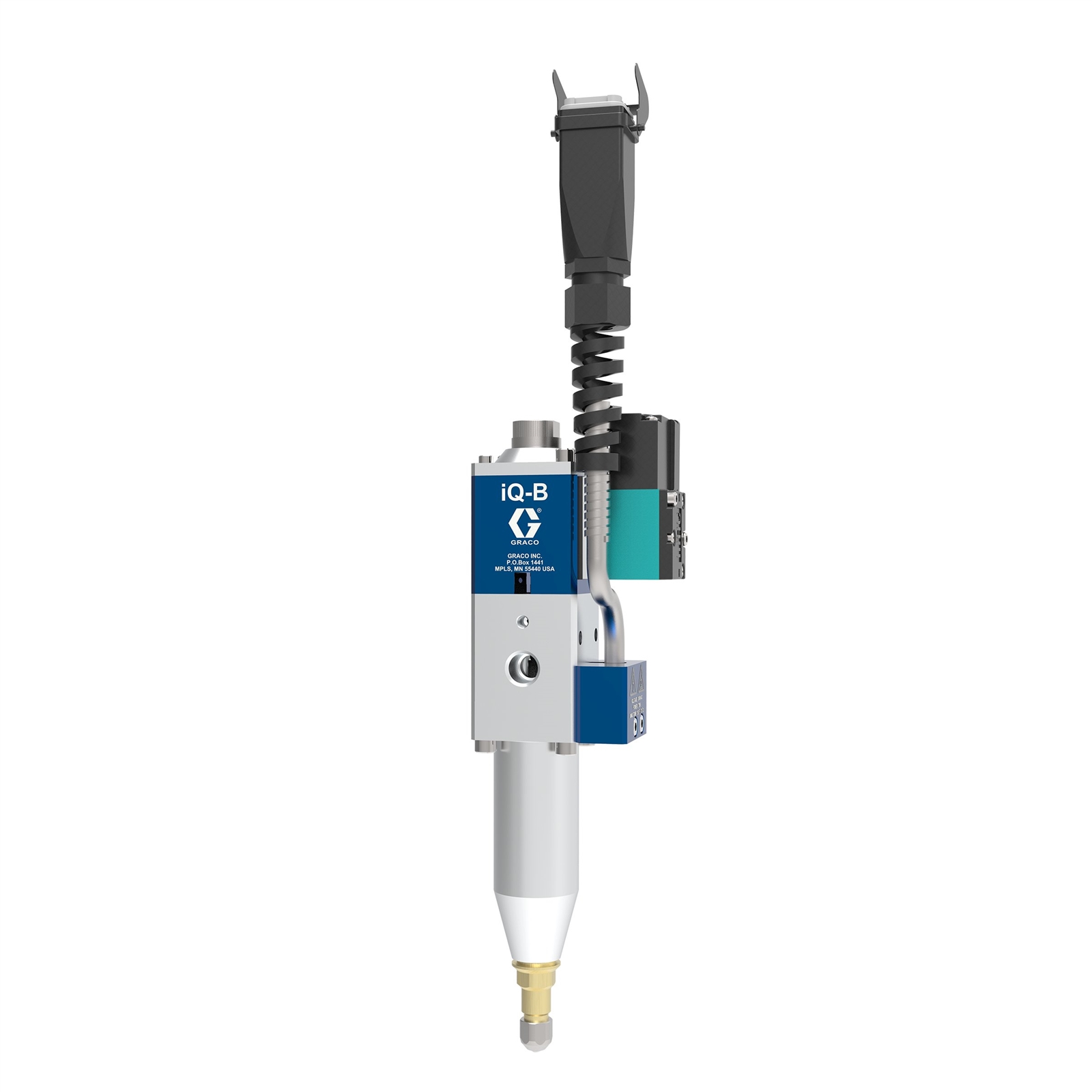

GRACO . V25DB060BB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerGRACO
Extra Product NameSunSource | V25DB060BB GRACO Lubrication | SunSource.com
Weight, Nozzle size (mm), Weight (kg)1.0
WeightUnitkg
Weight_AttribWeight (kg)
jsonUrlData8221bd4d-c891-417d-925b-ae4e00ec1db8
keywordsVALVE,25,1.0/B,060,ADJ/SOL,WEL V25DB060BB
moq, multiple, tierMinQty1, Phase1
MPN, SKUV25DB060BB
qtyInStock, tierPrice10
snippetV25DB060BB GRACO | Search our online catalog of Lubrication. Start your quote online to connect with our team of technical experts for support.
Air inlet size (in)5/16
Air inlet thread typePush-to-Connect
Ambient/warm melt/hot meltWarm Melt
Applicator typeBall/Seat
Component typeSingle Component
Dimension uom codeIN
Division codeAFTD
Fluid inlet size (in)1/4
Fluid inlet thread genderFemale
Fluid inlet thread typeNPT
Gun activationAutomatic
Maximum air pressure (bar)8.3
Maximum air pressure (mpa)0.83
Maximum air pressure (psi)120
Maximum fluid pressure (bar)276
Maximum fluid pressure (mpa)28
Maximum fluid pressure (psi)4000
Maximum operating temperature (?c)70
Maximum operating temperature (?f)158
Mount locationDirect Mount Solenoid
Nozzle size (in)0.039
Outlet block length (in)2.4
Outlet block length (mm)60
Power rating (w)75
Rtd type100 OHM - Platinum
Solenoid valve voltage rating (v dc)24
Split 4ADJ/SOL
Split 5WEL
TypeDispense Valve
Voltage (v ac)240
Weight (lb)2.2
Wetted MaterialAluminum;UHMWPE;17-4 Stainless Steel;PEEK;Chemical Resistant O-Rings;Silicone Nitride;CA 360 Brass;Coated Tool Steel;C2 Carbide with Cobalt Binder

Distributor offers

SellerSKUMOQIn stockMultiplePrices
sun-source.comV25DB060BB111 @ $0.00
