Parker

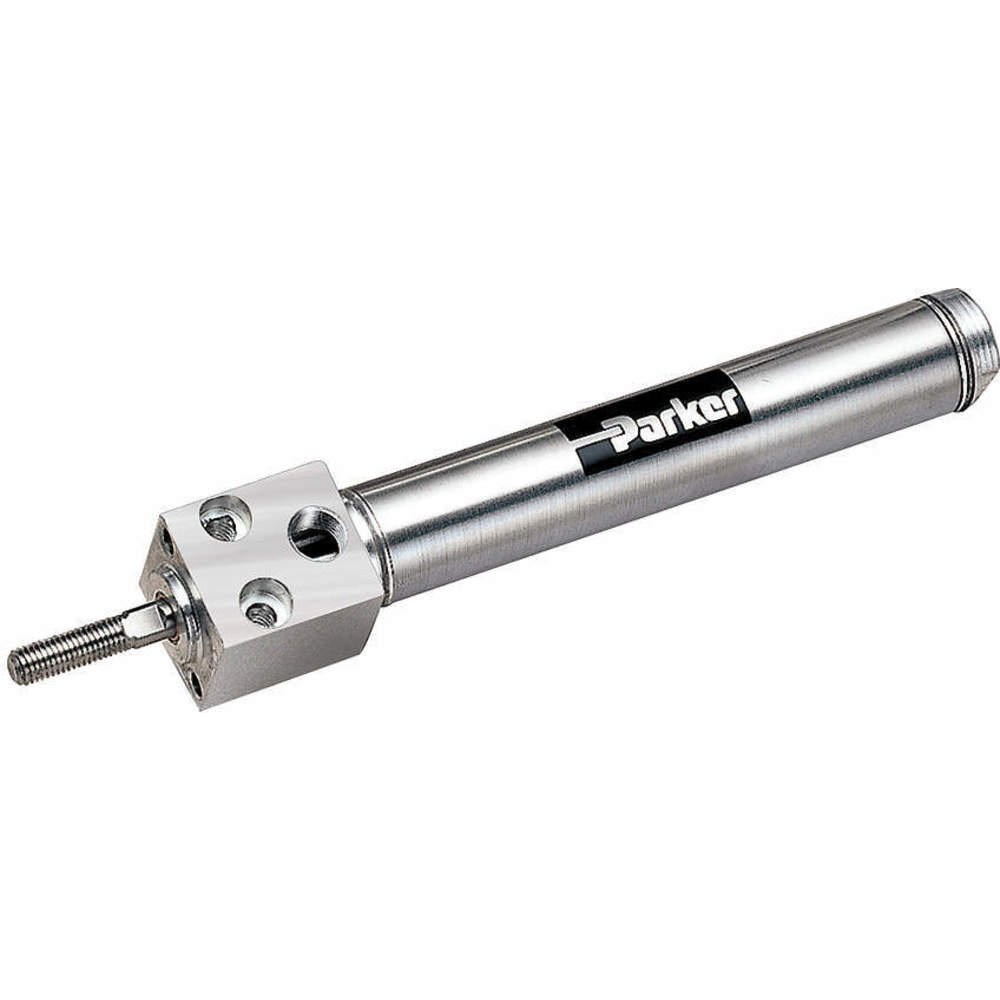

Round Air Cylinder 5/16 Inch Bore 1 Inch Stroke | 20XR39 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.31BFDSR01.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku20XR39
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.04
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
extendedLead26
extendedQty-2
height, width0.5
jsonUrlData924526ffbdad25e5923b
length2.72
moq, multiple, tierMinQty11
MPN0.31BFDSR01.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG6205263
tierPrice129.69
urlhttps://www.zoro.com/parker-air-cylinder-516-in-bore-1-in-stroke-round-body-double-acting-031bfdsr0100/i/G6205263/
Cylinder Action, Single Acting/Double ActingDouble Acting
ItemAir Cylinder
Bore Dia5/16 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Dimension Cc0.125 in
Overall Length3.1 in
Rod Thread Length0.38 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke1 in
Mount, Air Cylinder MountFront Block
Port Size#10-32 UNF
Air Cylinder TypeRound Body
Dimension F0.41 in
Dimension Kk, Rod Thread Size#5-40 UNC
Temp Range-10 Degrees to 165 Degrees F
FinishSilver
FeaturesNon-Switch Ready
Dimension A19/50 in
End Cap Material, Piston MaterialAluminum
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG6205263111 @ $29.69
Raptor SuppliesAG9MQU111 @ $63.14
Applied Industrial11623381411
sustainablesupply.comC16652981-211 @ $45.56
Radwell0.31BFDSR01.001711
