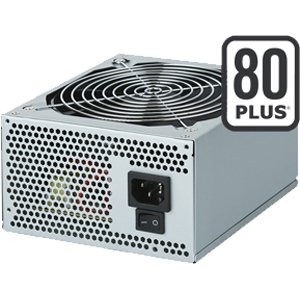

General Information Coolmax ZX series offer 80 PLUS levels of energy efficiency, massive 12V single rail output gave you the power you needs and super quiet 140mm ball bearing fan create a proper airflow inside the case. 6+2 PCI-E connector is suitable for most demanding SLI or CrossFire systems. Technical Information Specification Compliance: ATX12V/EPS12V Efficiency: 80% Power Factor Correction (PFC): Active Number of Fans: 1 Protection Type: Over Current Protection Type: Over Voltage Protection Type: Short Circuit Protection Type: Over Power Protection Type: Over Temperature ATI CrossFire Supported: Yes NVIDIA SLI Supported: Yes Power Description Input Voltage Type: AC Input Voltage: 110 V AC Input Voltage: 220 V AC Input Voltage Range: 100 V AC to 240 V AC Number of +12V Rails: 1 Output Voltage: 3.3 V DC @ 25 A Output Voltage: 5 V DC @ 25 A Output Voltage: 12 V DC @ 56 A Output Voltage: -12 V DC @ 800 mA Output Voltage: 5 V DC @ 3 A Output Power: 700 W Interfaces/Ports Plug/Connector: On/Off Switch Receptacles: 1 x 20+4pin ATX Motherboard Receptacles: 5 x 15-pin Serial ATA Receptacles: 5 x 4-pin LP4 Peripheral Device Receptacles: 1 x 4-pin SP4 Floppy Drive Receptacles: 1 x 6-pin PCI-E Receptacles: 1 x 6+2pin PCI-E Receptacles: 1 x 4+4pin ATX12V Motherboard Physical Characteristics Form Factor: Internal Height: 3.3" Width: 5.9" Depth: 6.5" Weight (Approximate): 3.74 lb Miscellaneous Package Contents: ZX-700 ATX12V & EPS12V Power Supply Power Cord Environmentally Friendly: Yes Environmental Certification: 80 Plus Warranty Limited Warranty: 2 Year
