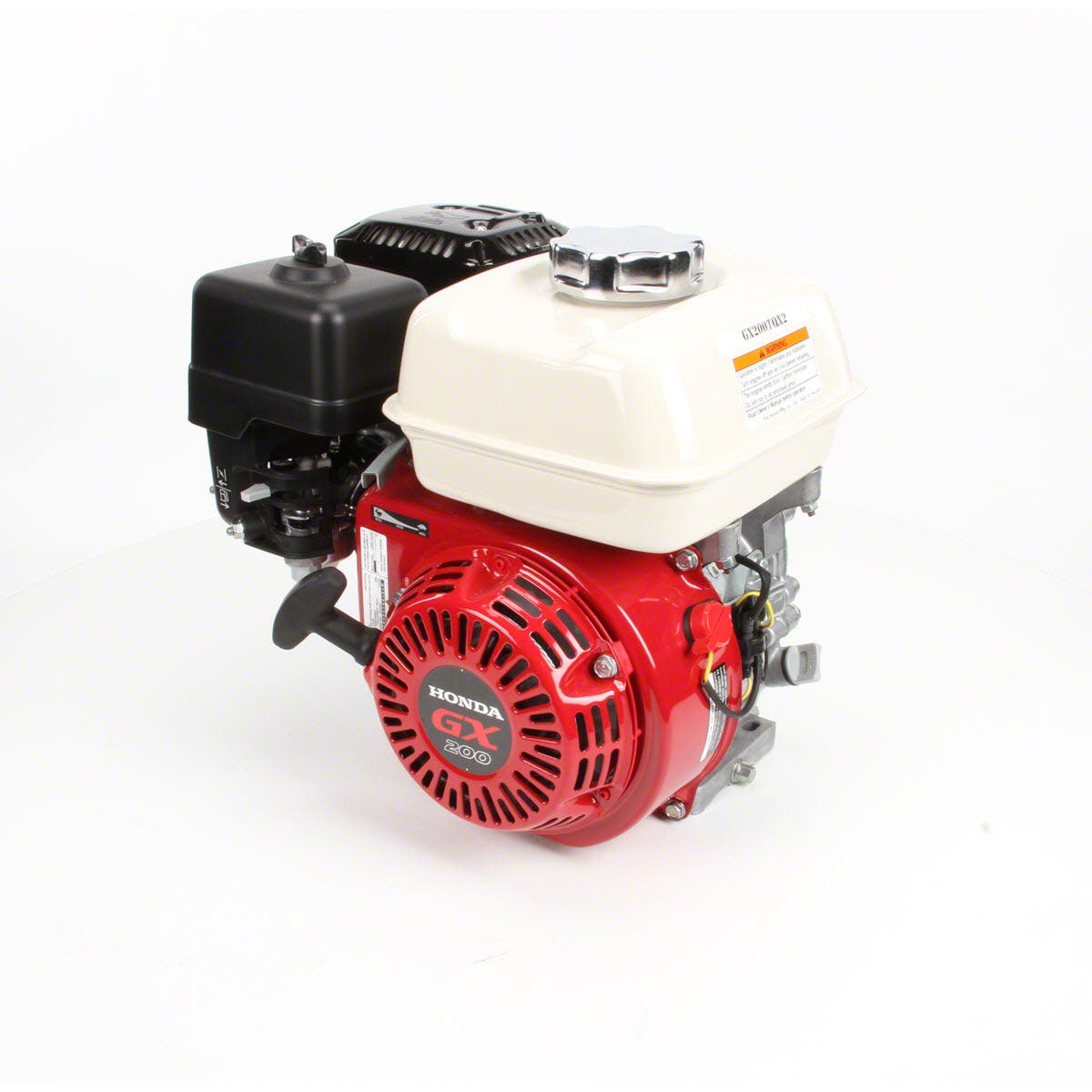

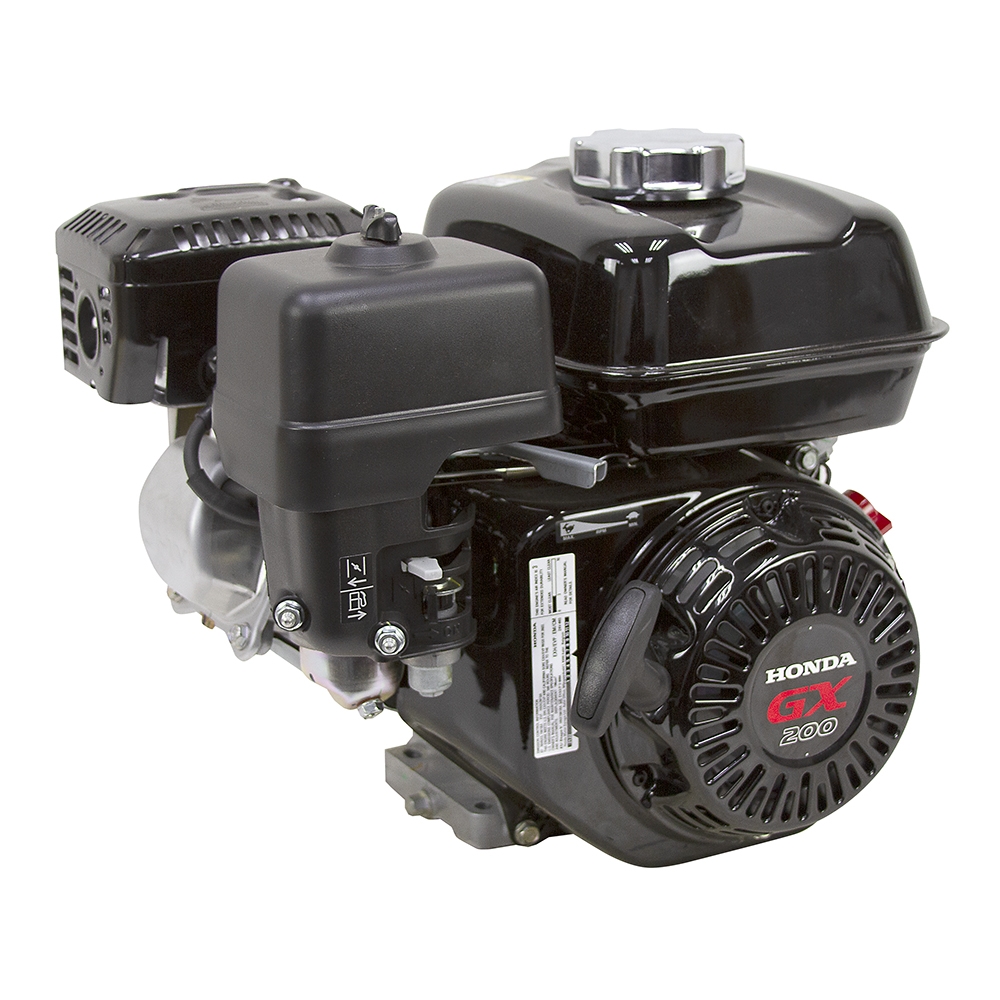

Honda Engines . GX200UT2QX2
5.5 HP 196cc GX200 HONDA GX200UT1QX2B Horizontal Shaft Engine Recoil Start, Horizontal Shaft Engines, 5.5 HP HORIZONTAL SHAFT HONDA GX200 RECOILHonda,GX200UT2QX2,
Attributes
| Brand name, Manufacturer name | Honda Engines |
|---|---|
| Manufacturer, Brand | Honda Engines Honda |
| Weight | 40.0 0.000625 |
| WeightUnit | lbs |
| moq, multiple, tierMinQty1, Cylinders (qty ), PackageQuantity | 1 |
| MPN, Keyword, PartNumber, Part_number | GX200UT2QX2 |
| qtyInStock | -2 |
| SKU, Item# | 6067 |
| Manufacturer's Warranty | 3 year limited warranty |
| Ship Weight | 40.0 lbs |
| Engine Displacement (cc) | 196 |
| Start Type | Recoil |
| Application | Pressure washer, compressor, log splitter |
| Engine Type | GX series OHV commercial-duty |
| Net Power Output (HP) | 5.5 (4.1 kW) at 3,600 RPM |
| Net Torque (lbs /ft ) | 9.1 (12.4 Nm) at 2,500 RPM |
| Shaft Output | Horizontal |
| Crankshaft | Q-type |
| Shaft Diameter (in ) | 3/4 |
| Shaft Length (in ) | 2 7/16 |
| Shaft Keyway (in ) | 3/16in.; 4.78mm x 4.78mm x 38mm |
| Shaft Rotation (From PTO Shaft Side) | Counterclockwise |
| PTO Height (in ) | 4 11/64 |
| Cylinder Bore | Cast iron |
| Bore x Stroke (in ) | 2.7 x 2.1 |
| Compression Ratio | 8.5:1 |
| Cooling System | Air cooled |
| Air Cleaner Type | Dual element |
| Fuel Tank | Standard |
| Fuel Type | Gasoline |
| Fuel Tank Capacity (qt ) | 3.3 |
| Oil Capacity (qt ) | 0.63 |
| Lubrication System | Forced splash |
| Low Oil Alert, Low Oil Shutdown, Auto Compression Release, EPA/CARB Approval (California Air Resource Board) | Yes |
| Ignition System | Electronic |
| Governor System | Centrifugal mechanical |
| Carburetor | Float |
| Throttle Control | Remote (cable) |
| Choke Control | Manual |
| Max RPM | 3,600 |
| Muffler Included | Standard, spark arrester |
| Bolt Circle (in ) | 3 5/8 |
| Mounting Base L x W (in ) | 6 3/8 x 3 5/32 to 3 11/32 |
| Dimensions L x W x H (in ) | 12 5/8 x 14 13/16 x 13 3/16 |
| ASIN, Asin | B00PYUEE3A |
| AdultProduct, Autographed, Batteries_included, Batteries_required, Memorabilia, TradeInEligible | False |
| Aspect | exception proper_shipping_name transportation_regulatory_class united_nations_regulatory_id |
| Bullet_point | Brand New Honda GX200UT2QX2 Horizontal OHV Engine 196cc GX Series 3/4in. x 2 7/16in. Shaft... Cast iron cylinder sleeve Genuine Honda Part # GX200UT2QX2 OHV design for increased efficiency and optimal power transfer Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy |
| Compliance_type | on_product_combined_cancer_reproductive |
| Hazmat | 3 AE_NoAir AU_NoAir BR_NoAir CA_NoAir CN_NoAir DE_NoAir EG_NoAir ENGINE, INTERNAL COMBUSTION, FLAMMABLE LIQUID POWERED ES_NoAir FR_NoAir GB_NoAir IN_NoAir IT_NoAir JP_NoAir MX_NoAir NL_NoAir PL_NoAir SA_NoAir SE_NoAir SG_NoAir TR_NoAir UN3528 US_NoAir |
| Height | 1000 1100 355 363 500 53 54 75 |
| Identifier | 0728028228908 728028228908 |
| IdentifierType | EAN UPC |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | Honda GX200UT2QX2 Engine Genuine Original Equipment Manufacturer (OEM) Part |
| Item_type_keyword | other-products |
| Item_weight | 0.01 |
| Label, Publisher, Studio | Honda |
| Link | https://m.media-amazon.com/images/I/41O76QtMplL._SL75_.jpg https://m.media-amazon.com/images/I/41O76QtMplL.jpg https://m.media-amazon.com/images/I/41uDFxMzASL._SL75_.jpg https://m.media-amazon.com/images/I/41uDFxMzASL.jpg https://m.media-amazon.com/images/I/516eXCFo3hL._SL75_.jpg https://m.media-amazon.com/images/I/516eXCFo3hL.jpg https://m.media-amazon.com/images/I/517G1YFB+UL._SL75_.jpg https://m.media-amazon.com/images/I/517G1YFB+UL.jpg https://m.media-amazon.com/images/I/517TSxK1yWL._SL75_.jpg https://m.media-amazon.com/images/I/517TSxK1yWL.jpg https://m.media-amazon.com/images/I/51BP4iHLOvL._SL75_.jpg https://m.media-amazon.com/images/I/51BP4iHLOvL.jpg https://m.media-amazon.com/images/I/51OYIrSYneL._SL75_.jpg https://m.media-amazon.com/images/I/51OYIrSYneL.jpg https://m.media-amazon.com/images/I/51SScLRqwbL._SL75_.jpg https://m.media-amazon.com/images/I/51SScLRqwbL.jpg https://m.media-amazon.com/images/I/51pQUmWFoUL._SL75_.jpg https://m.media-amazon.com/images/I/51pQUmWFoUL.jpg https://m.media-amazon.com/images/I/61Ujzlse8xL.jpg https://m.media-amazon.com/images/I/61doRFcwMvL.jpg |
| Marking_type | epa_registration_number |
| ProductGroup, WebsiteDisplayGroupName | Single Detail Page Misc |
| ProductType, ProductTypeName | MISC_OTHER |
| Product_description | Brand New Honda GX200UT2QX2 Horizontal OHV Engine 196cc GX Series 3/4in. x 2 7/16in. Shaft... Genuine Honda Part # GX200UT2QX2 Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy OHV design for increased efficiency and optimal power transfer Cast iron cylinder sleeve Low vibration from precision-engineered components Ball bearing-supported crankshaft for greater stability Large capacity, multi-chamber exhaust system for a low noise level Sophisticated air intake system Oil Alert for extra engine protection Carburetor filter and chamber coating help protect against fuel impurities |
| Registration_status | fifra_not_considered_pesticide |
| Supplier_declared_dg_hz_regulation | unknown |
| Title | Honda GX200UT2QX2 Horizontal OHV Engine 196cc GX Series 3/4in. x 2 7/16in. Shaft |
| Type | ean upc |
| URL | https://m.media-amazon.com/images/I/51SScLRqwbL._SL75_.jpg |
| Unit | ounces pounds |
| Units | pixels |
| Variant | MAIN PT01 PT02 PT03 PT04 PT05 PT06 PT07 PT08 |
| WebsiteDisplayGroup | sdp_misc_display_on_website |
| Width | 1100 365 452 462 500 55 68 69 730 75 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Northern Tool | 6067 | 1 | -2 | 1 | |
 JN Equipment | GX200UT2QX2 | 1 | 1 | 1 @ $399.99 | |
| toolfetch.com | GX200UT2QX2 | 1 | 1 | ||
| sceclean.com | GX200UT2QX2 | 1 | 1 | 1 @ $670.00 | |
| 28-1912-B | 1 | 165 | 1 | 1 @ $487.50 | |
| GX200UT2QX2 | 1 | 38 | 1 | 1 @ $675.00 |
