Z15J Switchcraft Inc. | Connectors, Interconnects | DigiKey

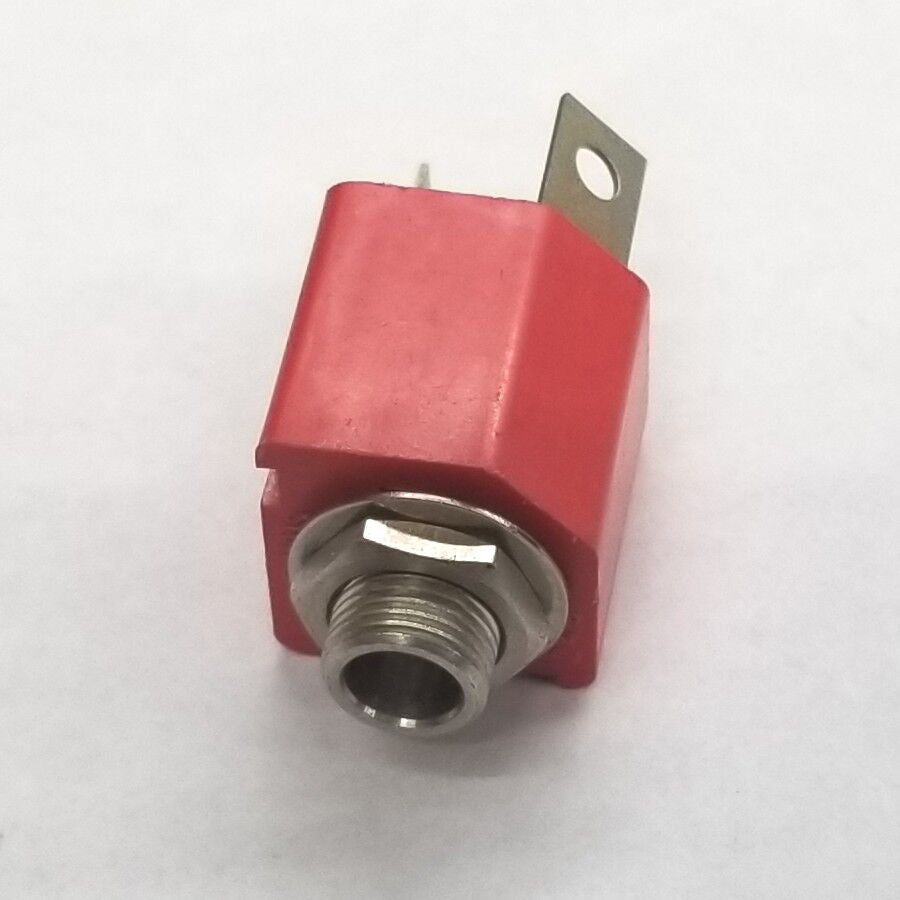

High power 2-conductor speaker jack carries 15A (continuous) audio speaker current levels. Jack Number Z15J has positive detent for plug retention. Terminations are solder lug; wires accepted are up to 10 AWG. Red housing indicates high current rating. Recommended mating plugs: 70, 184, 187 series.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Switchcraft Inc. |
|---|---|
| Extra Product Name | Z15J Switchcraft Inc. | Connectors, Interconnects | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | Z15J |
| qtyInStock | 9 |
| SKU | SC2046-ND |
| Series, Features, Insulation Color, Mating Length/Depth, Cable Opening, Panel Hole Size, Thread Size | - |
| Part Status | Active |
| Connector Type | Phone Jack |
| Gender | Female |
| Signal Lines | Mono |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Actual Diameter | 0.253" (6.43mm) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Panel Mount |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Operating Temperature | -20?C ~ 65?C |
| Voltage - Rated | 25VDC |
| Contact Material - Plating | Nickel |
| Body Material, Contact Material | Copper Alloy |
| Body Color | Silver, Red |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material | Thermoplastic, Glass Filled |
| Current Rating (Amps) | 15 A |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | SC2046-ND | 1 | 9 | 1 | |
| SWZ15J | 1 | 1 | 1 @ $2.76 | ||
| SWZ15J | 1 | 1 | 1 @ $2.95 | ||
| Z15J | 1 | 1 | 1 @ $5.45 | ||
| Hotenda | H709688 | 1 | 1 | 1 @ $3.90, 10 @ $3.15, 25 @ $2.89, 50 @ $2.76, 100 @ $2.62, 250 @ $2.56 | |
| Hawk Electronics | Z15J | 100 | 100 | 100 @ $3.62, 200 @ $3.55, 300 @ $3.51, 400 @ $3.47, 500 @ $3.06, 1000 @ $2.82 | |
 AmazonTP | B078RBWWFG | 1 | 1 | 1 @ $23.32 | |
 Newark | 27B9245 | 100 | 100 | 100 @ $3.61 | |
| AmazonSC | B078RBWWFG | 1 | 1 | ||
| Electroshield | Z15J | 100 | 1 | ||
| Digi-Key | 1289208 | 1 | 1 | ||
 Onlinecomponents.com | Z15J | 5 | 167 | 1 | 5 @ $5.28, 100 @ $3.81, 1000 @ $3.75, 10000 @ $3.72 |
| Mouser | 502-Z15J | 1 | 44 | 1 | 1 @ $4.74, 10 @ $4.55, 100 @ $3.79, 1000 @ $2.96, 10000 @ $2.81 |
| Z15J | 1 | -2 | 1 | 1 @ $4.09 | |
| 093-1056 | 1 | 91 | 1 | 1 @ $4.70, 100 @ $4.42, 250 @ $4.28 | |
| proaudiosolutions.com | Z15J | 1 | 1 | ||
| avalive.com | 130902 | 1 | -2 | 1 | |
| 104236 | 1 | 7 | 1 | 1 @ $4.85 |
