Parker

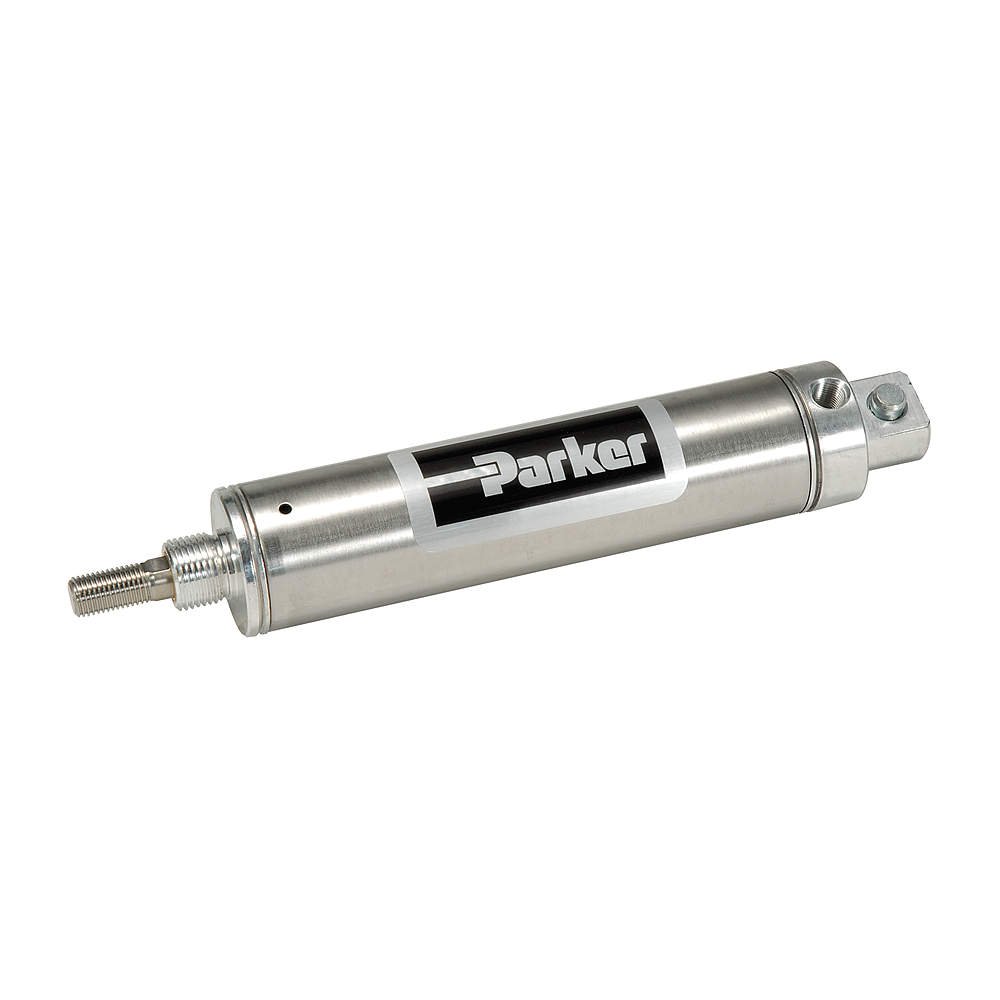

Round Air Cylinder 3/4 Inch Bore 1 Inch Stroke | 49J680 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.75PSRM01.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J680
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.19
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
extendedLead26
extendedQty-2
height, width0.86
jsonUrlData924526ffbdad25e5923b
length5
moq, multiple, tierMinQty11
MPN0.75PSRM01.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG6093105
tierPrice131.50
urlhttps://www.zoro.com/parker-air-cylinder-34-in-bore-1-in-stroke-round-body-single-acting-075psrm0100/i/G6093105/
Cylinder Action, Single Acting/Double ActingSingle Acting
ItemAir Cylinder
Bore Dia, Air Cylinder Bore Dia3/4 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Dimension Cc, Dimension Cd0.25 in
Overall Length5 in
Rod Thread Length0.5 in
Pivot Hole Dia0.251 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonYes
Stroke1 in
Mount, Air Cylinder MountPivot
Port Size1/8 in FNPT
Air Cylinder TypeRound Body
Piston Material, End Cap MaterialAluminum
Dimension E, Dimension Cb0.38 in
Dimension N1, Nose Mount Thread1/2"-20
Spring Retraction Force3 lb
Rod Thread Size1/4-28 UNF
Dimension Kk1/4"-28 UNF
FeaturesSwitch Ready
Temp Range14 Degrees to 140 Degrees F
Dimension B0.499 in
Dimension L0.34 in
Dimension A1/2 in
FinishSilver
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG6093105111 @ $31.50
Raptor SuppliesAJ2EDH111 @ $74.43
AmazonB074JF78YP1-211 @ $48.49
Applied Industrial11623575011
sustainablesupply.comC16852431-211 @ $47.63
Radwell0.75PSRM01.001711
