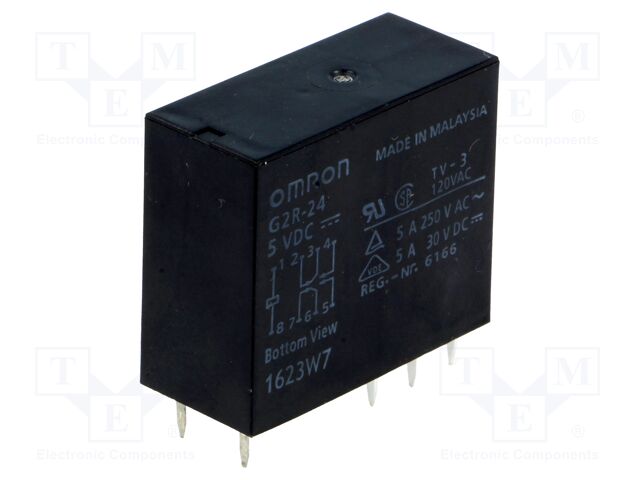

OMRON OCB G2R-24 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 4A; PCB
OMRON OCB G2R-24 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 4A; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2R-24 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 4A; PCB |
| atoms, moq, multiple | 1 |
| jsonUrlData | 83ff67c9b797bceeb4a637f50ddc4c6b. |
| jsonUrlData2 | ac106b63abe0bea21371 |
| keywords | OMRON OCB, G2R-24 5VDC, G2R-24-5DC |
| MPN | G2R-24 5VDC |
| qtyInStock | 0 |
| SKU | G2R-24-5DC |
| snippet | OMRON OCB G2R-24 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 4A; PC |
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 5V DC |
| Contact current max | 4A |
| AC contacts rating @R | 4A / 250V AC |
| DC contacts rating @R | 4A / 30V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | miniature, |
| Mounting | PCB |
| Coil resistance | 47? |
| Operate time | 15ms |
| Body dimensions | 29x13x25.5mm |
| Release time | 5ms |
| Operating temperature | -40...70?C |
| Relay series | G2R |
| Contact resistance | 50m? |
| Terminal pitch | 5mm |
| Coil current | 106mA |
| Enclosure description | hermetic seal |
| Leads | for PCB |
| Related items | PODST-3 |
