Where can I buy YA282N90?

YA282N90 is available from Megadepot, usmegastore.com, Crescent Electric Supply Co, Crescent Electric Supply Co, Platt.com. See pricing comparison above.

What is the price of YA282N90?

Pricing ranges from $36.36 to $46.66 depending on quantity and distributor.

Is YA282N90 in stock?

Yes, YA282N90 is currently in stock at multiple distributors with immediate availability.

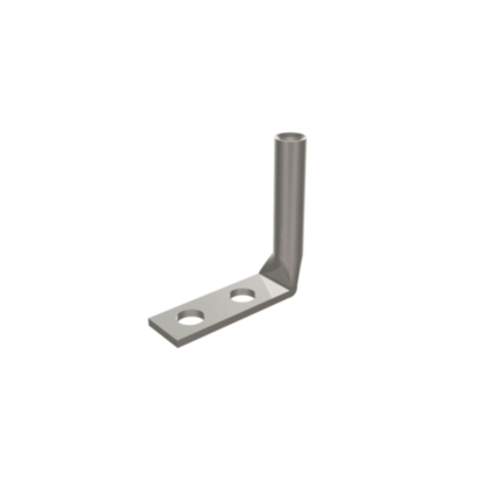

Burndy 502056 Copper Compression Lug, 2 Hole, 4/0 AWG YA282N90. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM

Name: Burndy 502056 Copper Compression Lug, 2 Hole, 4/0 AWG YA282N90. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
Brand: Burndy
Availability: OutOfStock

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer	Burndy
DimensionUnit	inch
diameter, height, length	0.69
height_Attrib, length_Attrib	Dimension - Outside Diameter inch
moq, multiple	1
MPN, SKU	YA282N90
qtyInStock	0
snippet	Burndy 502056 Copper Compression Lug, 2 Hole, 4/0 AWG YA282N90. ✅Burndy authorized distributor ✅. ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width	1.02
width_Attrib	Dimension - Pad Width inch
Color Code	Purple
Connector Type	Terminal
Die Index	15
Feature - Barrel Style	Chamfered
Feature - Barrel Type	Long
Material, Conductor - Material	Copper
Physical Attribute - Number of Holes	2
Physical Attribute - Tongue Type	90 degree
Plated	Y
Plating Type	Tin plated
Type	Long Barrel, Tin Plated
Dimension - B Length fraction	1 - 5/8"
Dimension - B Length inch	1.62 in
Dimension - Bolt Hole Size inch	0.52 in
Dimension - Bolt Size fraction	1/2"
Dimension - Hole Size inch	0.56 in
Dimension - Hole Size mm	14 mm
Dimension - L Length Overall mm	87 mm
Dimension - Length Overall inch	3.49 in
Dimension - N inch	0.63 in
Dimension - Outside Diameter inch	0.69 in
Dimension - Pad Width inch	1.02 in
Dimension - Strip Length inch	1-11/16
Dimension - Thread Size	1/2
Dimension - Z inch	0.64 in
Physical Attribute - Tongue Angle	90 Degree
Rating - KVA	35 kV
Rating - Minimum Voltage	600
Voltage - Maximum	35000
Conductor - Copper DLO Size Range	N/A
Conductor - Copper Str Navy Size	200 (61) Navy
Conductor - Copper Str Size	4/0 AWG

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Megadepot	YA282N90	1		1
usmegastore.com	YA282N90	1	-2	1	1 @ $36.36
Crescent Electric Supply Co	2061078	1		1
Crescent Electric Supply Co	YA282N90	1		1
Platt.com	2099579	1		1
Galco	YA282N90-BURN	10		10	1 @ $46.66
