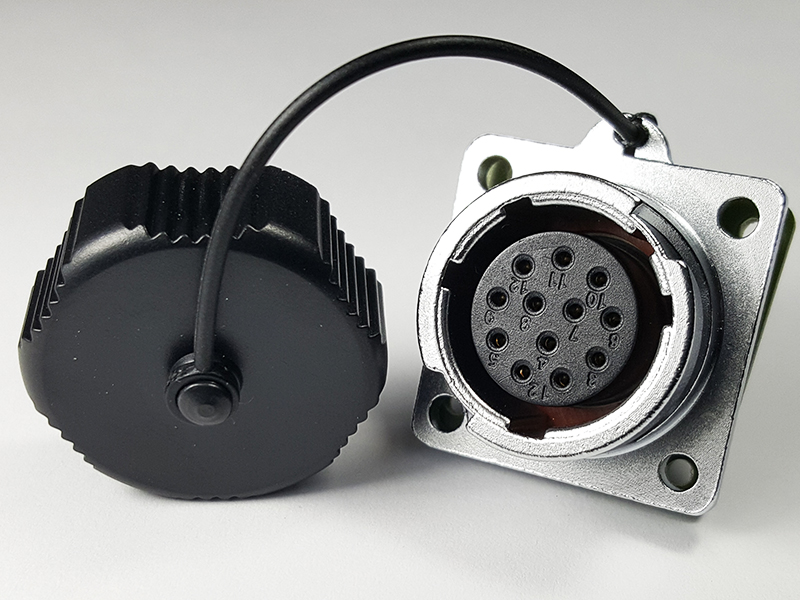

#EEC1013 - 12 Pins waterproof quick-connect female circular connector socket

#EEC1013 - 12 Pins waterproof quick-connect female circular connector socket

Cnlinko . YZ-20-J12SX-01-001

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCnlinko
keywordsYZ-20-J12SX-01-001, 12 Pins quick-connect female circular connector socket, industrial metal connector, 12 pins connector
moq, multiple, tierMinQty11
MPNYZ-20-J12SX-01-001
qtyInStock9
SKUCNLINKO - 12 PINS WATERPROOF QUICK-CONNECT FEMALE CIRCULAR CONNECTOR SOCKET #EEC1013
snippet#EEC1013 - 12 Pins waterproof quick-connect female circular connector socket
tierPrice19.09
Cable specification0.15mm??0.2mm?/26?24 AWG
Working temperature-40?F~176?F (-40??80?)
Diameter range?5.5mm??7mm
Connecting mode1/4 bayonet connect
Contact diameter ? number?1.0?12
Assembly wireSolder
Rated Current (A)5A
Housing, the insulating partsHigh-performance engineering plastics
Operating voltage (AC V rms)400V
HardwareZinc Alloy (pearl hard chrome)
Contact resistance<5m?
Pins materialCopper alloy (gold-plated 2U)
Withstanding Voltage (AC V) 1 minute1500V
Waterproof circleSilica gel
Insulation resistance?500M?
Flammability ratingUL94-V0
Protection levelIP65/IP67

Distributor offers

SellerSKUMOQIn stockMultiplePrices
hyperton.comCNLINKO - 12 PINS WATERPROOF QUICK-CONNECT FEMALE CIRCULAR CONNECTOR SOCKET #EEC10131911 @ $9.09
