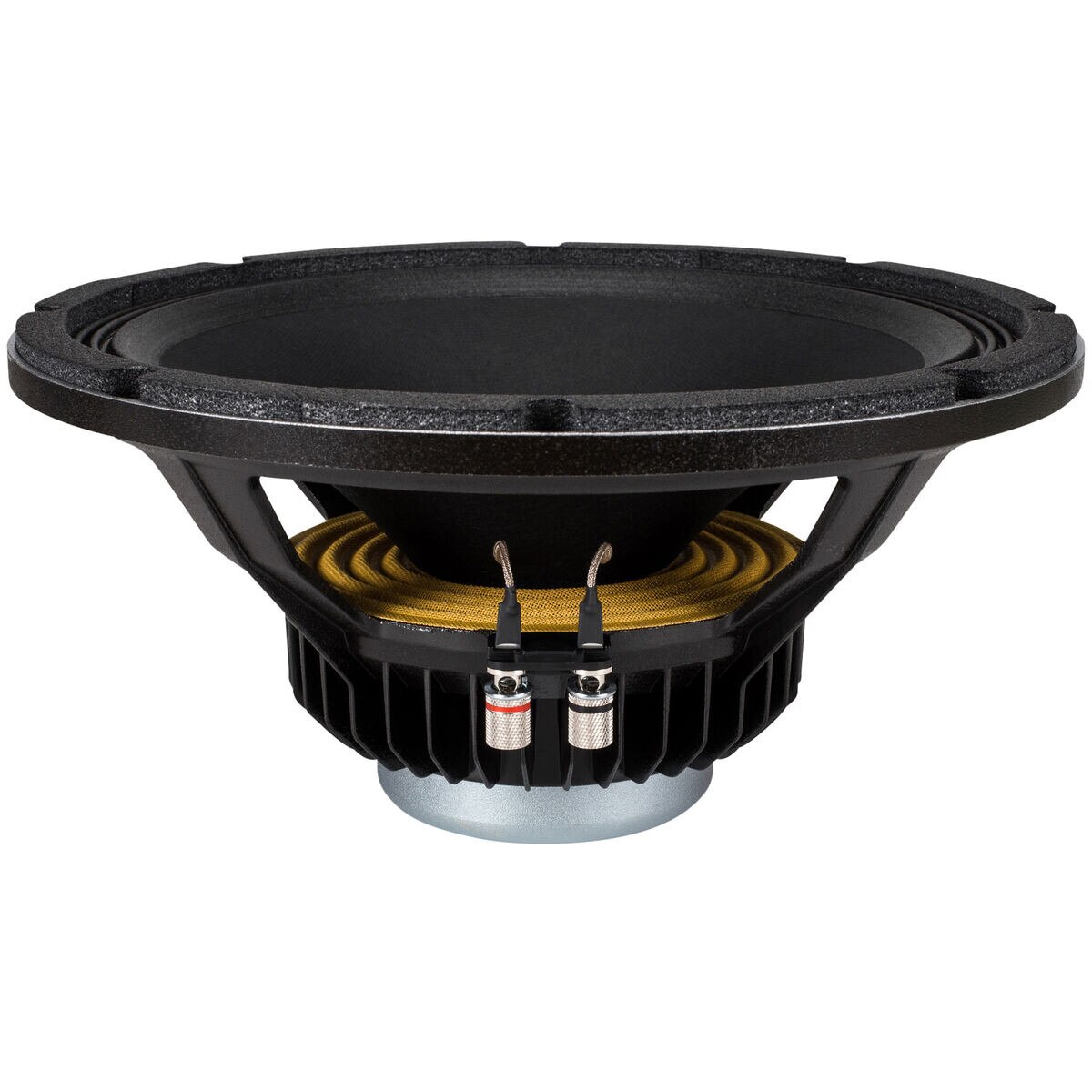

Eminence Kappalite 3012LF-4 High Power Neo 12" Subwoofer 4 Ohm

Eminence Kappalite 3012LF-4 High Power Neo 12" Subwoofer 4 Ohm. Part Number: 290-4518 by Eminence Speaker.

Eminence Speaker . KAPPALITE 3012LF-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandEminence Speaker
DimensionUnitinch
Extra Product NameEminence Kappalite 3012LF-4 High Power Neo 12" Subwoofer 4 Ohm
UPC876358002702
Weight8.5
WeightUnitlbs
depth, length6.0
diameter, height, width12.38
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPNKAPPALITE 3012LF-4
qtyInStock0
SKU, Part Number290-4518
snippetEminence Kappalite 3012LF-4 High Power Neo 12" Subwoofer 4 Ohm. Part Number: 290-4518 by Eminence Speaker.
ModelKappalite 3012LF-4
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.62
Power Handling (RMS)550 Watts
Power Handling (MAX)1100 Watts
Impedance4?
Frequency Response41 to 2,000Hz
Sensitivity92.9dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)36Hz
DC Resistance (Re)3.89?
Voice Coil Inductance (Le)0.66mH
Mechanical Q (Qms)8.38
Electromagnetic Q (Qes)0.32
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)3.79ft?
Mechanical Compliance of Suspension (Cms)0.26mm/N
BL Product (BL)14.27T?m
Maximum Linear Excursion (Xmax)9.1mm
Surface Area of Cone (Sd)545.4cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter12.38"
Baffle Cutout Diameter11.06"
Depth6"
# Mounting Holes8
Sealed Volume1ft?
Sealed F390Hz
Vented Volume1.5ft?
Vented F358Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com290-451811
