Fuji Electric

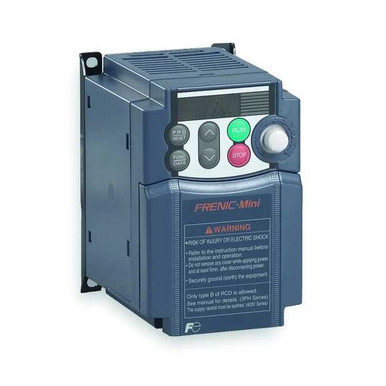

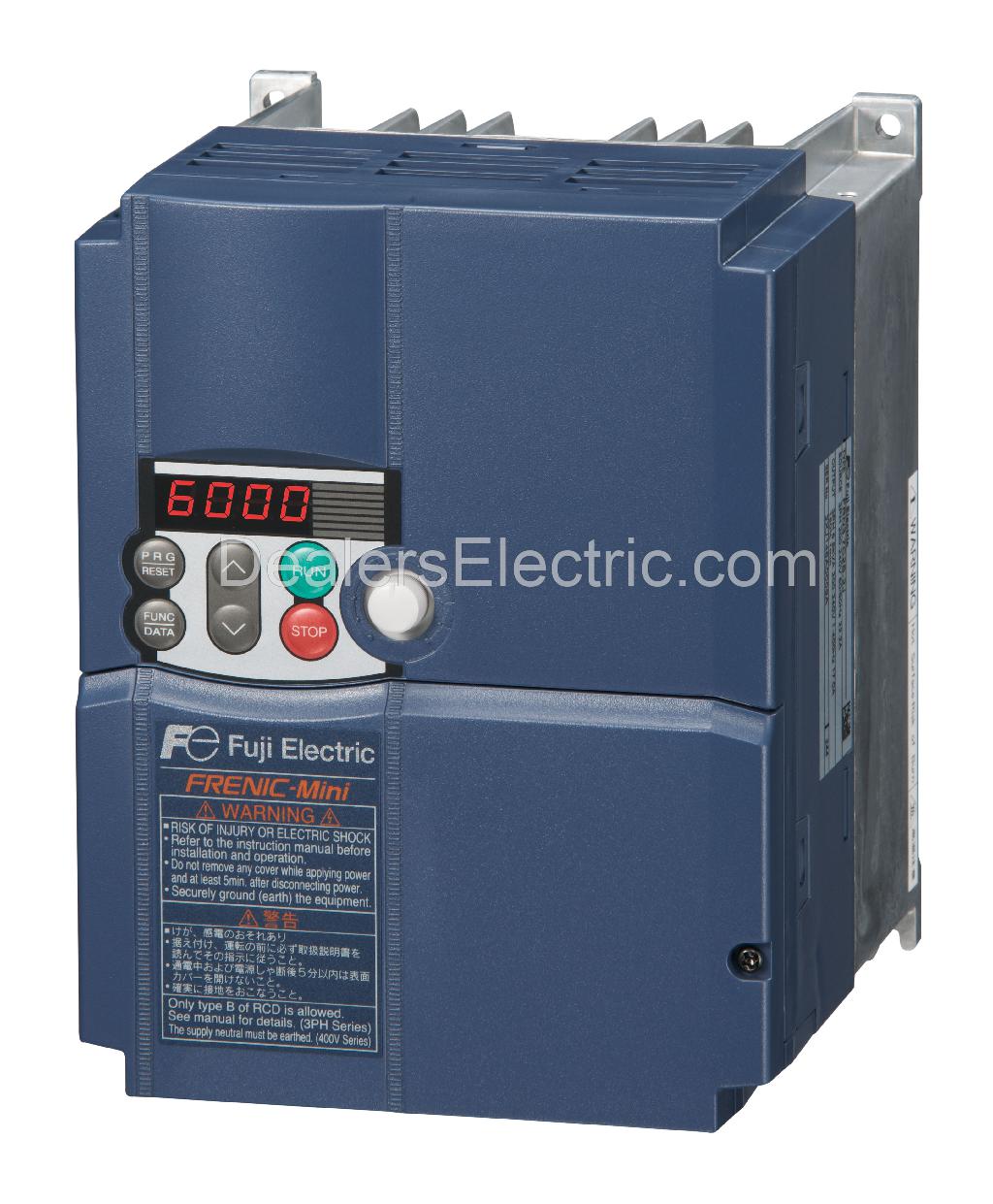

Variable Frequency Drive 5 HP 380-480V | 3XA44 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Fuji Electric . FRN0011C2S-4U

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameFuji Electric
DimensionUnitinch
GraingerSku3XA44
UPCNone
UnitOfMeasureEA
Voltage, Input Voltage460V
Weight6
WeightUnitlbs
cali_prop65_messageWARNING: Cancer - www.P65Warnings.ca.gov
cali_prop65_orglabelFalse
cali_prop65_warnmsgscenario5
cali_prop65_whtlabelTrue
countryOfOriginZZ
extendedLead10
height7.6
jsonUrlData924526ffbdad25e5923b
length8.7
moq, multiple, tierMinQty11
MPNFRN0011C2S-4U
qtyInStock, qtyInStockOverride0
qtySourceqtyInStockOverride
SKUG1668414
tierPrice1456.17
urlhttps://www.zoro.com/fuji-electric-variable-frequency-drive-5-hp-380-480v-frn0011c2s-4u/i/G1668414/
width6.5
ItemMini Inverter
Max HP, Maximum Output Power5 hp
Output Voltage380 to 480V
Input Phase AC, Output Phase ACThree
EnclosureOpen
Max Output Amps9 A
With Bypass / No BypassNo Bypass
With Line Contactor / No Line ContactorNo Line Contactor
Input Frequency50/60 Hz
Height7.09 in
Output Frequency Range0.1 to 400 Hz
Control Method, Control TypeKeypad
StandardsCE, EN61800-5-1, UL 508C
Accepts Input Control Signal0-10V DC, 0-5V DC or 4 to 20mA
ProtectionExternal alarm input, Ground fault, Input phase loss, Output phase loss detected, Overcurrent, Overheating, Overload, Overvoltage, Short-circuit, Undervoltage
Depth5.47 in
Width5.51 in
Display Type, DisplaysLED
Adjustable Deceleration Time, Adjustable Acceleration Time0 to 3600 sec
Overall Depth5 7/16 in
Torque @ 1 Hz, Starting Torque150%
Digital ReadoutCurrent, Frequency, PID Operating Data, Speed, Voltage Output
ApplicationCentrifugal Separators, Conveyors, Fans, Food Processing Machines, Pumps
Ethernet Port IncludedNo
Enclosure RatingNEMA 1
Output Voltage Range0V - 460V AC
Overall Width5 1/2 in
Number of Outputs(2) Digital; (1) Analog
Maximum Output Current10.5 A
StyleHeat Sink
Number of Inputs(5) Digital; (2) Analog
SeriesFRENIC Mini-C2
Input Voltage Range380V-480V AC +10% / -15%
Overall Height7 1/16 in
Start/Stop ControlProgrammable
Color, Color (merch)Black/Blue/Gray
Input Type, Output TypeAnalog, Digital
Brake Chopper Included, Dynamic BrakingYes
Torque ApplicationConstant Torque
Country of Origin (subject to change)Multiple

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG1668414111 @ $456.17
Grainger3XA441411 @ $905.00
RadwellFRN0011C2S-4U11
Raptor SuppliesAD2ZPK111 @ $974.22
Allied Electronics7207952311
AmazonSCB01LYUNQN711
Dealers ElectricFRN0011C2S-4U111 @ $461.25
sustainablesupply.comC15584561Add to Cart11 @ $790.00
simsupply.comZO-G166841413011 @ $529.25
grainger.caWWG3XA44111 @ $618.55
us.rs-online.com720795231211 @ $504.90, 5 @ $466.07
GalcoFRN0011C2S-4U-FUIC1111 @ $400.78
