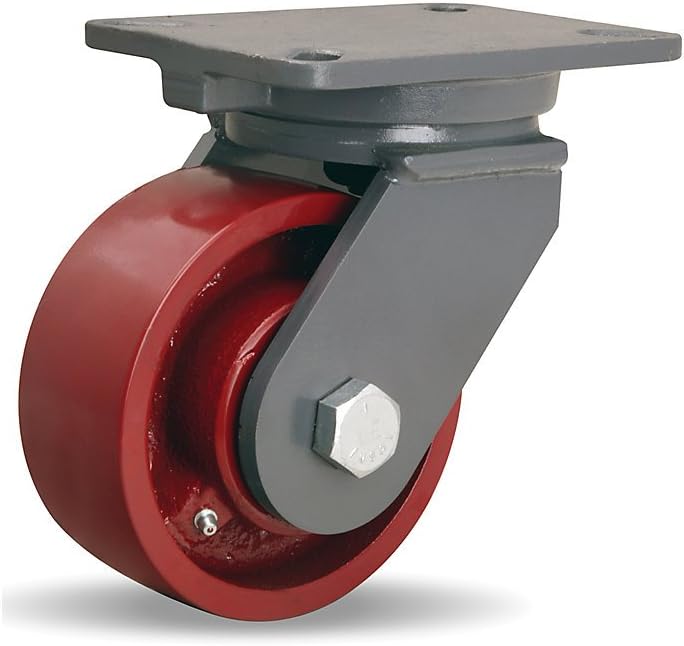

Champion Swivel Caster, 6" x 2-1/2" Metal Wheel, 3/4" Precision Tapered Bearing

The Hamilton S-CH-6MT caster features a 6-inch diameter metal wheel with a 2.5-inch width. It is equipped with a -3/4" precision tapered roller bearing and a swivel design.

HAMILTON Champion Casters offer superior performance and reliable service. A variety of wheel types to meet your needs. Features a 1" integrally-forged steel kingpin that is extremely durable and strong. -1/2" thick drop forged steel mounting plate with -3/8x3" plate steel legs are welded inside and outside to forged steel horn base. CNC-machined main load bearingA with 3-3/4" diameter raceway; 1" precision tapered thrust secondary load bearing counteracts radial thrust. Ball-check type lubrication fittings in swivel assembly and in wheel hubs with tapered or straight roller bearings.

Hamilton . S-CH-6MT

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Man, Publisher, StudioHamilton
CategoryId, CategoryIdL46740
CategoryIdL1, CategoryIdL214394
CategoryIdL34473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
GraingerSku, MPN, Part Number, Model, Keyword, ModelNumber, Model_number, PartNumber, Part_number, SkuS-CH-6MT
Extra Product NameChampion Swivel Caster, 6" x 2-1/2" Metal Wheel, 3/4" Precision Tapered Bearing
UPCNone
UnitOfMeasureEA
Weight26 26.0 26.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
extendedLead15
extendedQty-2
height, length, moq, multiple, tierMinQty1, width, Number of Wheels, Case, NumberOfItems, Number_of_items1
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3739609
tierPrice1235.13
urlhttps://www.zoro.com/hamilton-champion-swivel-caster-6-x-2-12-metal-wheel-34-precision-tapered-bearing-s-ch-6mt/i/G3739609/
Product GroupHome Improvement
Wheel Dia6
Wheel Width2.5
Plate Size5 1/4 x 7 1/4
Mounting Bolt Dia0.5
Mounting Height8
Caster Wheel ShapeStandard
Caster Wheel/Tread Material, Caster Core MaterialMetal
Load Rating200
Caster Frame MaterialForged Steel
Caster Plate Hole PatternA
Non-Marking, Thread GuardsNo
Outside Bolt Hole Spacing4 1/8 x 6 1/8
Inside Bolt Hole Spacing3 3/8 x 5 1/4
Replacement WheelW-625-MT-3/4
Caster Temp Range-40 to 320 deg(F)
Core ColorCrimson Red
Frame FinishPowder Coat
Caster Wheel BearingsTapered
StandardsICWM
Caster Product Group, ItemSwivel Caster
ASIN, AsinB00UJOTZ44
BindingMisc.
Bullet_point-3/4" Precision Tapered Roller Bearing Capacity: 2200 lbs. Overall Height: 8" Wheel Dia.xW: 6x2.5" Wheel Type: Metal
CatTools & Home Improvement
CatId228013
CatTree228013 468240 551240
ClassificationId511228
DisplayNameHardware
FeatureWheel Type: Metal
Height1000 3.0 3.00 500 75 8.0 8.00
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleHamilton Champion Casters - 6"Dia.X2.5"W Metal Wheel - -3/4" Precision Tapered Roller Bearing - Swivel
Item_package_weight, Item_weight26.0
Item_type_keywordplate-casters
Length0.0 0.00 6.0 8.0 8.00
Linkhttps://m.media-amazon.com/images/I/41YRve+5-fL._SL75_.jpg https://m.media-amazon.com/images/I/41YRve+5-fL.jpg https://m.media-amazon.com/images/I/51vnbATE9vL.jpg
ProductGroupBISS Basic Home Improvement
ProductTypeINDUSTRIAL_CASTERS
ProductTypeNameINDUSTRIAL_CASTERS TOOLS
Product_descriptionHAMILTON Champion Casters offer superior performance and reliable service. A variety of wheel types to meet your needs. Features a 1" integrally-forged steel kingpin that is extremely durable and strong. -1/2" thick drop forged steel mounting plate with -3/8x3" plate steel legs are welded inside and outside to forged steel horn base. CNC-machined main load bearingA with 3-3/4" diameter raceway; 1" precision tapered thrust secondary load bearing counteracts radial thrust. Ball-check type lubrication fittings in swivel assembly and in wheel hubs with tapered or straight roller bearings.
Product_site_launch_date2015-03-11T13:59:47.807Z
URLhttp://ecx.images-amazon.com/images/I/41YRve%2B5-fL._SL75_.jpg https://m.media-amazon.com/images/I/41YRve+5-fL._SL75_.jpg
Unitinches pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width0.0 0.00 1000 3.0 500 6.0 6.00 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3739609111 @ $235.13
ZoroG908893711
AmazonB00UJOTZ4411
National Supply Network172390211
motionindustries.com02323353111 @ $388.42
ZoroG3282539111 @ $199.51

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Hamilton Champion Casters - 6"Dia.X2.5"W Metal Wheel - -3/4" Precision Tapered Roller Bearing - Swivel
Brand: Hamilton
HAMILTON Champion Casters offer superior performance and reliable service. A variety of wheel types to meet your needs. Features a 1" integrally-forged steel kingpin that is extremely durable and strong. -1/2" thick drop forged steel mounting plate with -3/8x3" plate steel legs are welded inside and outside to forged steel horn base. CNC-machined main load bearingA with 3-3/4" diameter raceway; 1" precision tapered thrust secondary load bearing counteracts radial thrust. Ball-check type lubrication fittings in swivel assembly and in wheel hubs with tapered or straight roller bearings.
Details
  • Wheel Type: Metal
  • Wheel Dia.xW: 6x2.5"
  • Capacity: 2200 lbs.
  • Overall Height: 8"
  • -3/4" Precision Tapered Roller Bearing
Listing
BindingMisc.
Product groupHome Improvement
Product typeTOOLS
ModelS-CH-6MT
Part numberS-CH-6MT
Items per pack1
LabelHamilton
ManufacturerHamilton
Catalog
FeatureWheel Type: Metal
CategoryTools & Home Improvement
MPNS-CH-6MT
Product groupHome Improvement
Product typeTOOLS
ManufacturerHamilton
