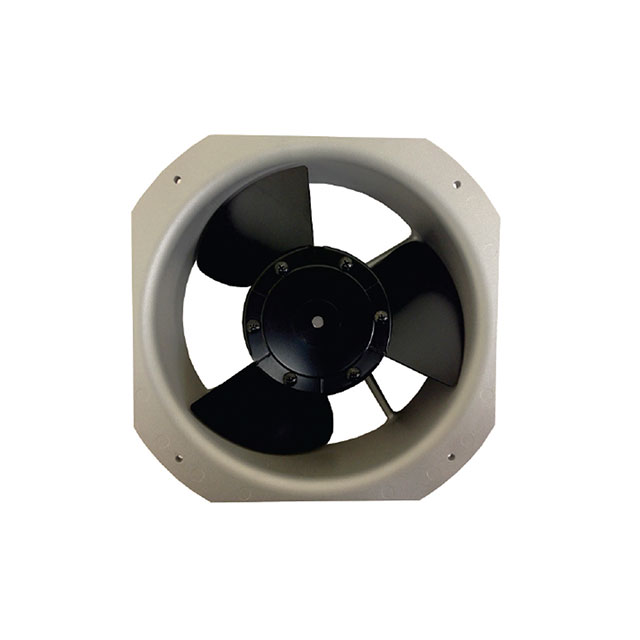

FDA2-22580NBHK4F-SF Qualtek | Fans, Thermal Management | DigiKey
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Qualtek |
|---|---|
| Extra Product Name | FDA2-22580NBHK4F-SF Qualtek | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | FDA2-22580NBHK4F-SF |
| qtyInStock | 0 |
| SKU | FDA2-22580NBHK4F-SF-ND |
| Part Status, Voltage Range, Lifetime @ Temp | - |
| Voltage - Rated | 115VAC |
| Size / Dimension | Square - 260mm L x 260mm H |
| Width | 80.00mm |
| Air Flow | 670.0 CFM (18.76m?/min) |
| Static Pressure | 0.807 in H2O (201.0 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Salt Fog Rated, Thermal Overload Protector (TOP) |
| Noise | 71.0dB(A) |
| Power (Watts) | 68.0W |
| RPM | 3200 RPM |
| Termination | Terminal Block |
| Ingress Protection | IP56M - Dust Protected, Water Resistant |
| Operating Temperature | -4 ~ 158?F (-20 ~ 70?C) |
| Approval Agency | CE, cURus, TUV |
| Weight | 6.2 lbs (2.8 kg) |
| Current Rating (Amps) | 0.620A |
| Material - Frame | Aluminum |
| Material - Blade | Steel |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| FDA2-22580NBHK4F-SF-ND | 1 | 1 | |||
| Digi-Key | 5768302 | 1 | 1 |
