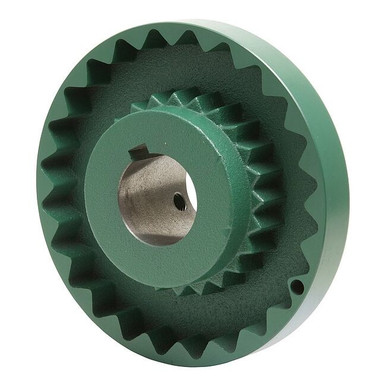

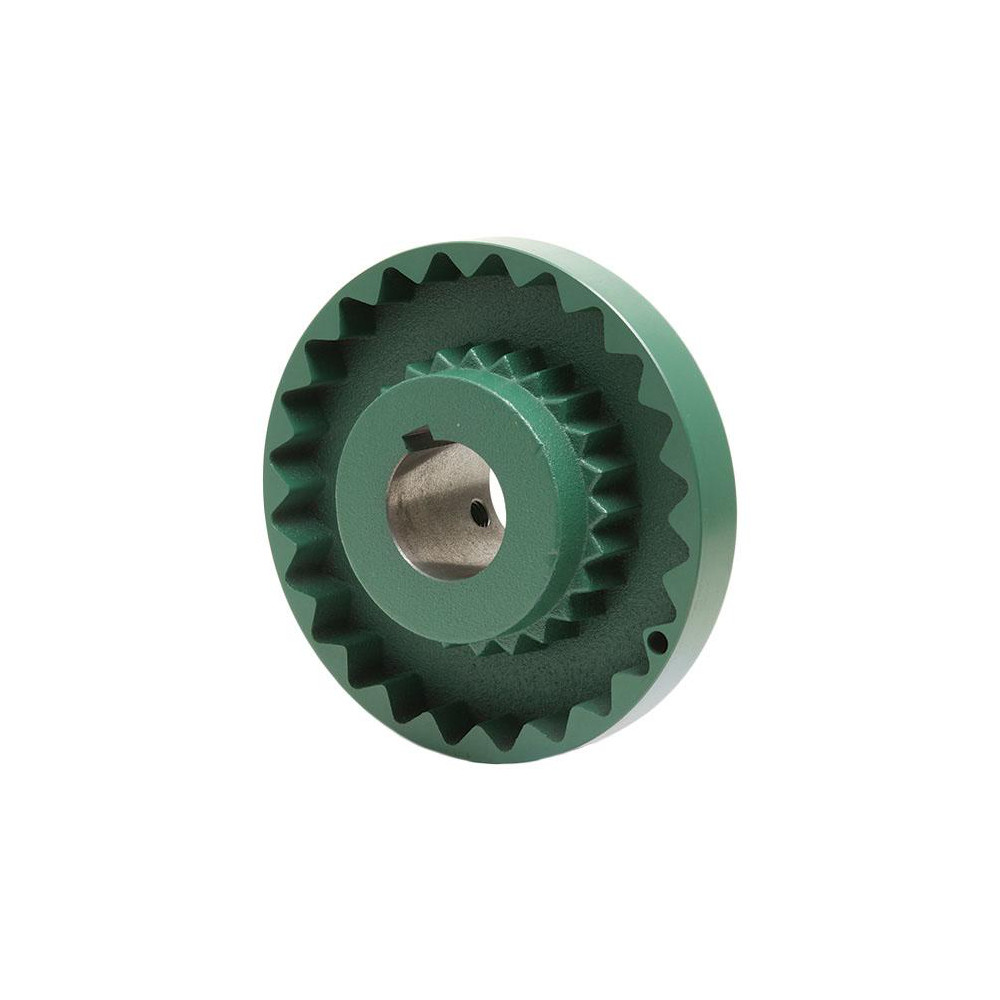

9S114 9SX1 1/4 SF FLANGE

Shop TB Woods 9S114 and trust MRO to be your reliable TB Woods supplier to experience the difference that quality and expertise can make. Trusted since 1898. Fast, Free Shipping.

TB Woods . 9S114

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTB Woods
CategoryL1Shaft Couplings and Collars
CategoryL2Gear Couplings
CategoryL3Complete Units
Extra Product Name9S114 9SX1 1/4 SF FLANGE
moq, multiple, tierMinQty1, Setscrew length (in), Setscrew length1
MPN9S114
qtyInStock0
SKU340466
snippetShop TB Woods 9S114 and trust MRO to be your reliable TB Woods supplier to experience the difference that quality and expertise can make. Trusted since 1898. Fast, Free Shipping.
tierPrice175.85
Bore size1 1/4 in
Dimension (in) (S)3/8
Set screw distance0.375
Setscrew size, location3/8 16 UNC, One over KS and at 90 Degrees
Max speed, Max RPM3750
Max angular gap misalignment0.109 (in) with EPDM/Neoprene Sleeves and 0.028 (in) with Hytrel Sleeves
Dimension (in) (D), Outside diameter, Flange diameter6.35
SF hub diameter3.625
Material typeHigh Strength cast iron
Setscrew Torque Requirment (ft lbs), Setscrew torque requirement23
Horsepower Rating at 100 RPM57
Min compatible bore size0.4375
Power rating at 100 RPM2.8 kW with EPDM or Neoprene sleeve, 8.5 kW with Hytrel sleeve
Screw sizeSetscrew
Max parallel misalignment11
Dimension (in) (T)1 1/32
Keyseat (in)1/4 x 1/8
Component WR?, Component WR2 (lbs ft2)0.2187
Screw typeFlange, Type S
Torque rate2,340 (in-lbs) with EPDM or Neoprene sleeve; 7,200 (in-lbs) with Hytrel sleeve
SF hub length, Dimension (in ) (E)25/32
Bore tolerance (in)+0.0005 to +0.0015
Dimension (in) (C)2 13/32
Max angular misalignment1? with EPDM/neoprene sleeves and 1/4? with hytrel sleeves
Bore tolerance+.0005 to +.0015
Length through bore2.40625
Coupling size9
Torque2,340 in-lb with EPDM or Neoprene sleeve, 7,200 in-lb with Hytrel sleeve
Bore size (in)1 1/4
Construction typeFinish bore with keyway
Keyseat size1/4 in x 1/8 in
Dimension (in) (H)3 5/8
Max compatible bore size2.875
SF flange length1.03125

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply340466111 @ $75.85
Grainger32ZR5611
Raptor SuppliesAG3EGZ111 @ $189.90
Applied Industrial10081466811
sustainablesupply.comC29325331-211 @ $105.33
Purvis9SX1 1/41-211 @ $103.46
Guardian5390202911
grainger.caWWG32ZR56111 @ $139.79
simsupply.comZO-G85133461911 @ $77.80
ZoroG851334613111 @ $65.65
National Supply Network539020291-211 @ $121.63
