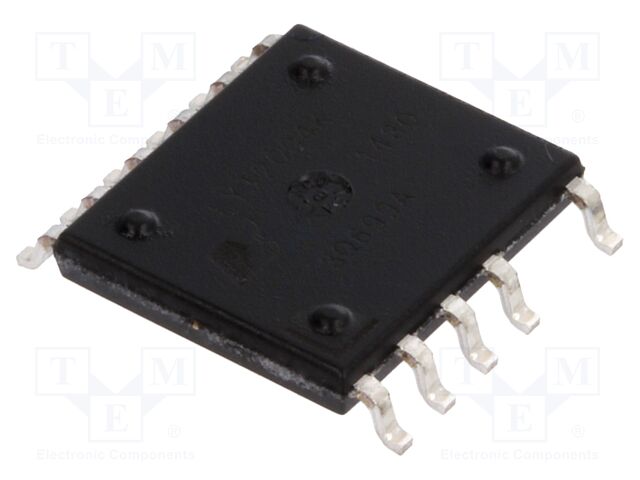

LYT2004K Power Integrations | Integrated Circuits (ICs) | DigiKey
Converter Offline Flyback Topology 85kHz 12-ESOP
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Power Integrations |
|---|---|
| Extra Product Name | LYT2004K Power Integrations | Integrated Circuits (ICs) | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| MPN | LYT2004K |
| packaging, Package | Tube |
| qtyInStock | 66 |
| SKU | 4870616 |
| snippet | Converter Offline Flyback Topology 85kHz 12-ESOP |
| tierMinQty2 | 100 |
| tierMinQty3 | 1,000 |
| tierMinQty4 | 10,000 |
| tierPrice1 | 1.20000 |
| tierPrice2 | 0.99000 |
| tierPrice3 | 0.84000 |
| tierPrice4 | 0.72000 |
| Category | Integrated Circuits (ICs) |
| Series | LYTSwitch?-2 |
| Product Status | Discontinued at Digi-Key |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd), Fault Protection, Control Features | - |
| Duty Cycle | 55% |
| Frequency - Switching | 85kHz |
| Power (Watts) | 10 W |
| Operating Temperature | -40?C ~ 150?C (TJ) |
| Package / Case | 12-BESOP (0.350", 8.89mm Width), 11 Leads, Exposed Pad |
| Supplier Device Package | 12-ESOP |
| Mounting Type | Surface Mount |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 4870616 | 1 | 66 | 1 | 1 @ $1.20, 100 @ $0.99, 1000 @ $0.84, 10000 @ $0.72 |
| Newark | 47Y1110 | 1 | 1 | ||
 iodParts | LYT2004K | 336 | 864 | 336 | 336 @ $0.90, 720 @ $0.87 |
| LYT2004K | 1 | 96 | 1 | 1 @ $0.82, 3 @ $0.82 | |
| Hotenda | H2671105 | 1 | 432 | 1 | 1 @ $1.60, 10 @ $1.44, 25 @ $1.29, 100 @ $1.16, 250 @ $1.03, 500 @ $0.90 |
| RS Delivers | 146-2448 | 1 | 1 | 1 @ $1.82 | |
| RS Delivers | 123-5384 | 5 | 5 | 5 @ $1.22, 15 @ $0.85, 25 @ $0.83, 50 @ $0.81, 100 @ $0.79 | |
| Digi-Key | 4870622 | 1 | 66 | 1 | 1 @ $1.20, 100 @ $0.99, 1000 @ $0.84, 10000 @ $0.72 |
| Digi-Key | 4870628 | 10000 | 66 | 10000 | 1 @ $1.20, 100 @ $0.99, 1000 @ $0.84, 10000 @ $0.72 |
