FG1010-710

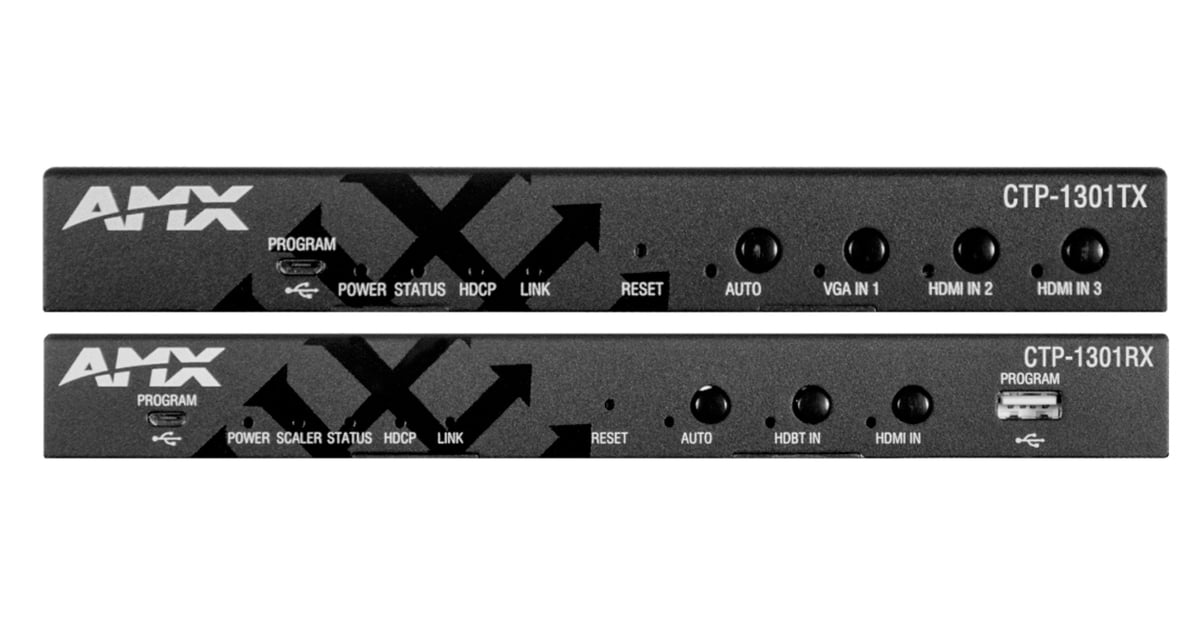

AMX CTP-1301 Presentation Connectivity and Transport Kit; 3x1 4K30 Digital Switcher Transmitter; Receiver Solution; Scaler And Extender The CT Presentation kit was designed to address the needs of simple presentation environments, including 4K switching at the table, transport over category cable, and additional connectivity at the receiver for an AMX Acendo Core or a room PC at the receiver, as well as scaling and output to the display Key Features: -4K30 Support, future proof for 4K source devices and displays -Inputs (TX), transmitter includes 2x HDMI and 1x VGA inputs -Outputs(RX), receiver includes 1x HDMI input and scaled HDMI output -Distance transport, eliminates the need for additional cable extenders by connecting the TX and RX with a single category cable -Simplified room control, control the display or projector and a screen from built-in control ports on the RX; transmitter and receiver connect via a single category cable Specifications: -AMX Products Compatible with HDBaseT Inputs: CTP-1301TX / CTP-1301RX -Airflow Approvals: CTP1301TX - Convection (openings on sides of case), CT1301RX - Convection (openings on top/bottom of case) -Twisted Pair Cable Type: Shielded Cat6, Cat6A and Cat7* / Shielded Cat6A and Cat7 -Twisted Pair Cable Length: Up to 115 ft. (35 m) -Included Accessories: 5 x 3P-3.5MM Phoenix Connectors; 1 x 12V/3APower Adapter; 1 x US AC Cable; 1 x EU AC Cable; 1 x UK AC Cable; 4 x mounting ear; 8 x M2.5 screw (for mounting ears) -Dimensions: 3.70 in (9.4 cm) depth x 7.67 in (19.47 cm) width x 0.98 in (2.5 cm) height -Weight 2.14 lb (0.97kg) -Mounting Options: Includes V-Style surface mount brackets
