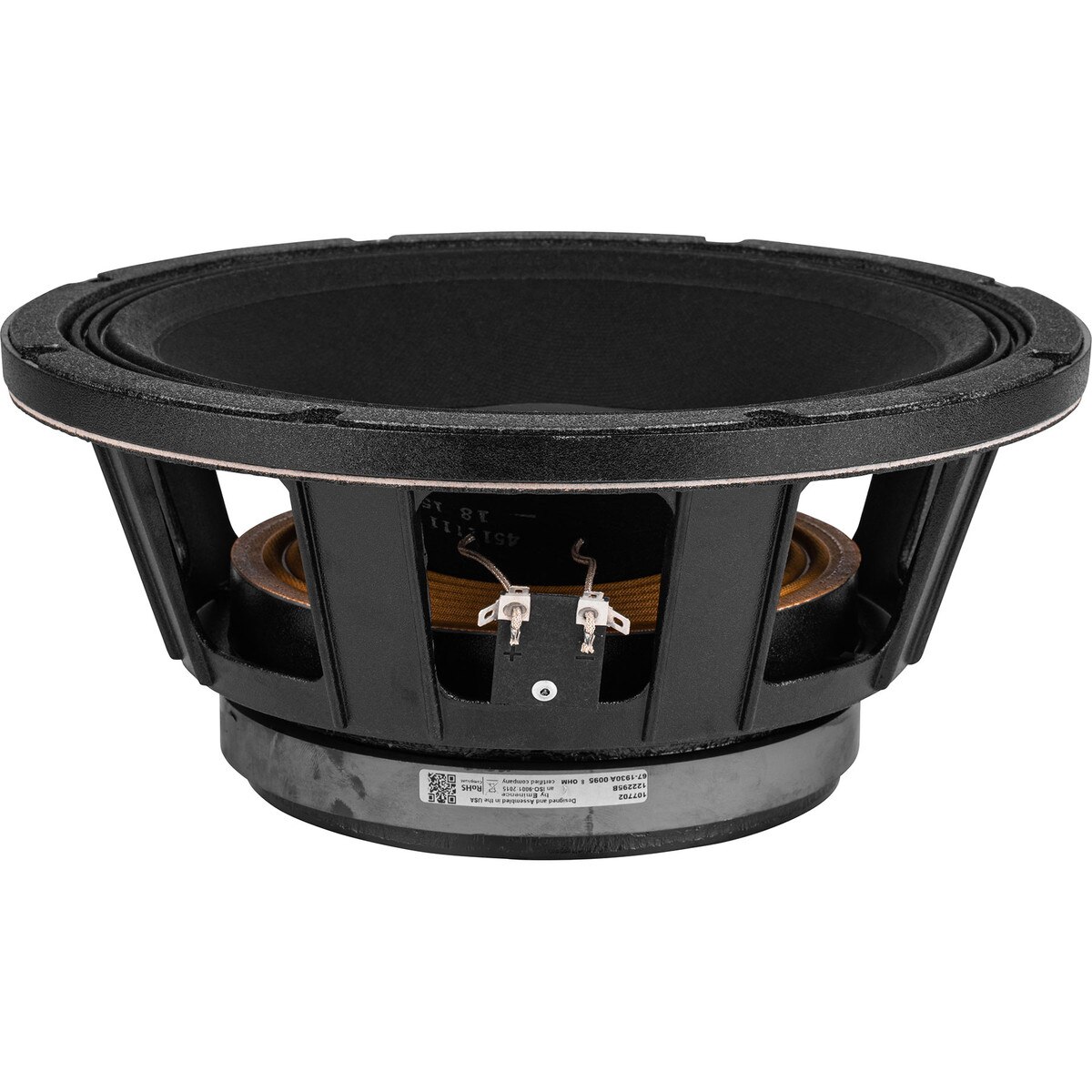

Eminence 107702 12" Professional Paper Cone Woofer 3" Coil 8 Ohm

Eminence 107702 12" Professional Paper Cone Woofer 3" Coil 8 Ohm. Part Number: 299-4104 by Factory Buyouts.

Factory Buyouts . 107702

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameEminence 107702 12" Professional Paper Cone Woofer 3" Coil 8 Ohm
UPC848864061276
Weight15
WeightUnitlbs
depth, length5.5
diameter, height, width12.375
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model107702
qtyInStock0
SKU, Part Number299-4104
snippetEminence 107702 12" Professional Paper Cone Woofer 3" Coil 8 Ohm. Part Number: 299-4104 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.75
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8?
Frequency Response50 to 2,000Hz
Sensitivity96.9dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)50Hz
DC Resistance (Re)5.78?
Voice Coil Inductance (Le)1.79mH
Mechanical Q (Qms)6.16
Electromagnetic Q (Qes)0.41
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)2.62ft?
Mechanical Compliance of Suspension (Cms)0.17mm/N
BL Product (BL)16.15T?m
Diaphragm Mass Inc Airload (Mms)58.9g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)551cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.375"
Baffle Cutout Diameter11.125"
Depth5.5"
# Mounting Holes8
Sealed Volume0.7ft?
Sealed F3110Hz
Vented Volume1.75ft?
Vented F361Hz
