IXDH20N120 IXYS | Discrete Semiconductor Products | DigiKey
IXDH20N120 Integrated Circuit - CASE: Standard MAKE: IXYS

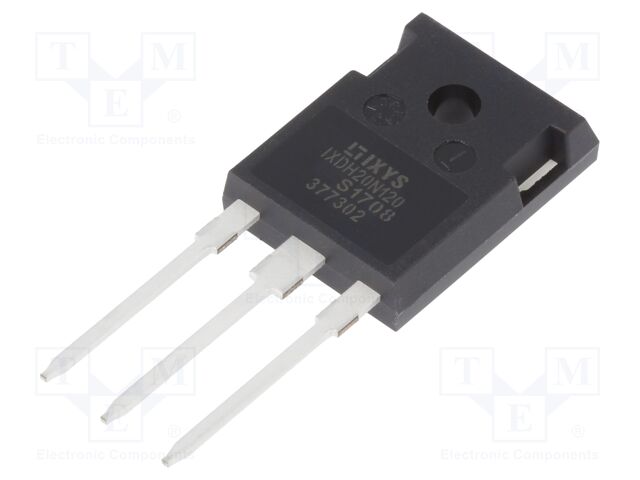

Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | IXYS |
|---|---|
| Extra Product Name | IXDH20N120 IXYS | Discrete Semiconductor Products | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| MPN | IXDH20N120 |
| qtyInStock | 0 |
| SKU | IXDH20N120-ND |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierMinQty6 | 1,000 |
| tierMinQty7 | 2,500 |
| tierMinQty8 | 5,000 |
| tierMinQty9 | 9,000 |
| tierPrice1 | 5.75000 |
| tierPrice2 | 5.16500 |
| tierPrice3 | 4.88240 |
| tierPrice4 | 3.90600 |
| tierPrice5 | 3.47200 |
| tierPrice6 | 2.97290 |
| tierPrice7 | 2.92950 |
| tierPrice8 | 2.66910 |
| tierPrice9 | 2.60400 |
| Category | Discrete Semiconductor Products |
| Series, Td (on/off) @ 25?C | - |
| Package | Tube |
| Part Status | Active |
| IGBT Type | NPT |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 20A |
| Switching Energy | 3.1mJ (on), 2.4mJ (off) |
| Input Type | Standard |
| Test Condition | 600V, 20A, 82Ohm, 15V |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3 Full Pack |
| Supplier Device Package | TO-247AD |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 38 A |
| Current - Collector Pulsed (Icm) | 50 A |
| Power - Max | 200 W |
| Gate Charge | 70 nC |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | IXDH20N120-ND | 1 | 1 | 1 @ $5.75, 10 @ $5.17, 25 @ $4.88, 100 @ $3.91, 500 @ $3.47, 1000 @ $2.97, 2500 @ $2.93, 5000 @ $2.67, 9000 @ $2.60 | |
| Little Diode | IXDH20N120 | 1 | 1 | 1 @ $20.79 | |
| Galco | IXDH20N120 | 1 | 1 | ||
| Future Electronics | 7027641 | 120 | 120 | 120 @ $8.07, 60 @ $7.42, 150 @ $7.27 | |
| swatee.com | IXDH20N120 | 1 | 20 | 1 | 1 @ $15.07 |
| IXDH20N120 | 1 | 1 | 1 @ $6.60, 3 @ $5.94, 10 @ $5.25, 30 @ $4.71 | ||
| Digi-Key | 1651765 | 1000 | 1000 | 1 @ $7.29, 10 @ $6.58, 100 @ $5.45, 500 @ $4.75, 1000 @ $4.33 | |
| JT25-IXDH20N120 | 1 | 208 | 1 |
