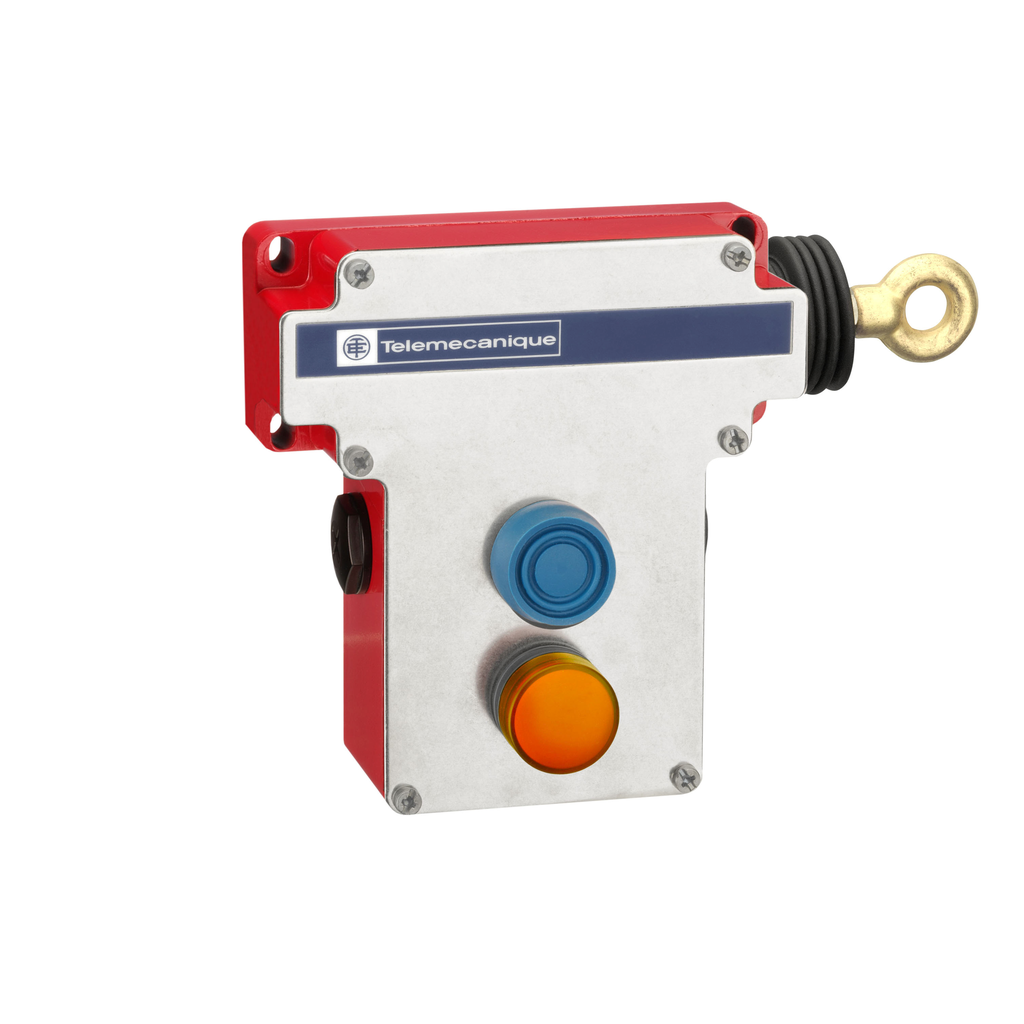

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable XY2CE, 300 V AC, 10 A | Mayer Electric

Mayer Electric Supply . XY2CE1A296FWB24

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitm
Extra Product NameLatching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable XY2CE, 300 V AC, 10 A | Mayer Electric
UPC785901756392
Weight1.47
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SQUARE-D-Latching-emergency-stop-rope-pull-switch-Telemecanique-rope-pull-switches-XY2C-cable-XY2CE-300-V-AC-10-A-785901756392
jsonUrlData2b19bd01c-b5f4-4a82-83e9-ade40063c0e7
length70.0
length_AttribTrigger Cable Maximum Length
moq, multiple, tierMinQty1, Number Of Cables1
MPNXY2CE1A296FWB24
qtyInStock0
SKUSQDXY2CE1A296FWB24
tierPrice11231.72
Housing Colourred RAL 3000
Range Of ProductTelemecanique Emergency stop rope pull switches XY2C
Overvoltage Categoryclass I EN/IEC 61140 || class I NF C 20-030
Product Or Component Typelatching emergency stop rope pull switch
Device Short Name, Compatibility CodeXY2CE
Warranty18 months
Trigger Cable Maximum Length70 m
Connections - Terminalsscrew clamp terminal, 1 x 0.5...2 x 1.5 mm?
Resetby booted push-button
Contacts Type And Composition2 NC + 2 NO
[Us] Rated Supply Voltage24...130 V AC/DC
Terminals Description Iso N?1(13-14)NO || (21-22)NC
[Ui] Rated Insulation Voltage400 V 3)EN/IEC 60947-1 || 300 VUL 508 || 300 VCSA C22.2 No 14
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60269
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Contact Operationslow-break
Distance Between Cable Supports5-5 m
Mechanical Durability60000 cycles
Positive Openingwith EN/IEC 60947-5-1
Cable Entry Number3 tapped entry ISO M20 cable gland
Light Block Supplydirect
Body Materialzamak
[Ithe] Conventional Enclosed Thermal Current10 A
Trigger Cable Anchor PointRH side
Safety Reliability DataB10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
MarkingCE
Cover Materialstainless steel
Local Signallingwith pilot light, red, 24...130 V
Net Weight1.47 kg
Tightening Torque0.8-1.2 N.m
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Maximum Resistance Across Terminals25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Environmental DisclosureENVPEP111159EN
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-25-70 ?C
Ambient Air Temperature For Storage-40-70 ?C
StandardsEN/IEC 60947-5-5 || machinery directive 2006/42/EC || UL 508 || work equipment directive 2009/104/EC || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/ISO 13850 || EN/IEC 60204-1
Product CertificationsUL category NISD emergency stop devices || CSA || CCC
Shock Resistance50 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance10 gn 10-300 Hz)EN/IEC 60068-2-6
Protective TreatmentTC
Ip Degree Of ProtectionIP66 IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXY2CE1A296FWB24111 @ $1231.72
