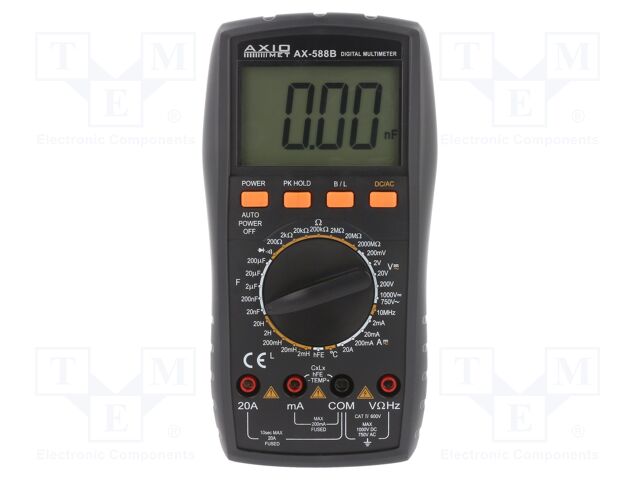

AXIOMET AX-588B | Digital multimeter; LCD; 3,5 digit; I DC: 1uA?2mA,20mA,200mA,20A

AXIOMET AX-588B | Digital multimeter; LCD; 3,5 digit; I DC: 1uA?2mA,20mA,200mA,20

AXIOMET . AX-588B

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerAXIOMET
CategoryL1Workplace Equipment
CategoryL2Measuring Instruments
CategoryL3Digital Multimeters
CategoryL4Portable digital multimeters
DimensionUnitmm
Extra Product NameAXIOMET AX-588B | Digital multimeter; LCD; 3,5 digit; I DC: 1uA?2mA,20mA,200mA,20A
Weight400
WeightUnitg
Weight_AttribWeight with battery
atoms, moq, multiple1
height28.0
height_AttribDisplay height 1
jsonUrlData2db3a92a43eaaf6b247dd9d984a60517.
jsonUrlData2887ef2b86fe310cef522
keywordsAXIOMET, AX-588B, Workplace Equipment, Measuring Instruments, Digital Multimeters, Portable digital multimeters
MPN, SKUAX-588B
qtyInStock277
snippetAXIOMET AX-588B | Digital multimeter; LCD; 3,5 digit; I DC: 1uA?2mA,20mA,200mA,20
Type of meterdigital multimeter
MeasurementAC current,
Kind of display usedLCD
Display parameters3,5 digit
DC voltage measuring range, AC voltage measuring range0.1...200mV/
DC voltage measuring accuracy?(0,5% + 3 digits)
AC voltage measuring accuracy?(0,8% + 5 digits)
Bandwidth for AC voltage measurements40Hz...100Hz @ ?750V,
DC current measuring range, AC current measuring range1?A...2mA/
DC current measuring accuracy, Resistance measuring accuracy?(0,8% + 3 digits)
AC current measuring accuracy?(1% + 5 digits)
Bandwidth for AC current measurements40...200Hz
Resistance measuring range100m?...200?/
Capacitance measuring range10pF...20nF/
Capacitance measuring accuracy, Inductance measuring accuracy?(2,5% + 20 digits)
Inductance measuring range1?H...2mH/
Frequency measuring range1...2kHz/
Frequency measuring accuracy?(0,5% + 4 digits)
Temperature measuring range-40...1000?C
Temperature measurement accuracy?(1% + 4 digits)
Diode test1mA @3V
Transistors' gain (hFE) test3V
Continuity testacoustic indication,
Weight with battery400g
Conform to the normCAT IV 600V
Related items5790D,
Dimensions (W x H x D)97x189x35mm
Display height 128mm
Illuminationyes

Distributor offers

SellerSKUMOQIn stockMultiplePrices
TMEAX-588B12771
