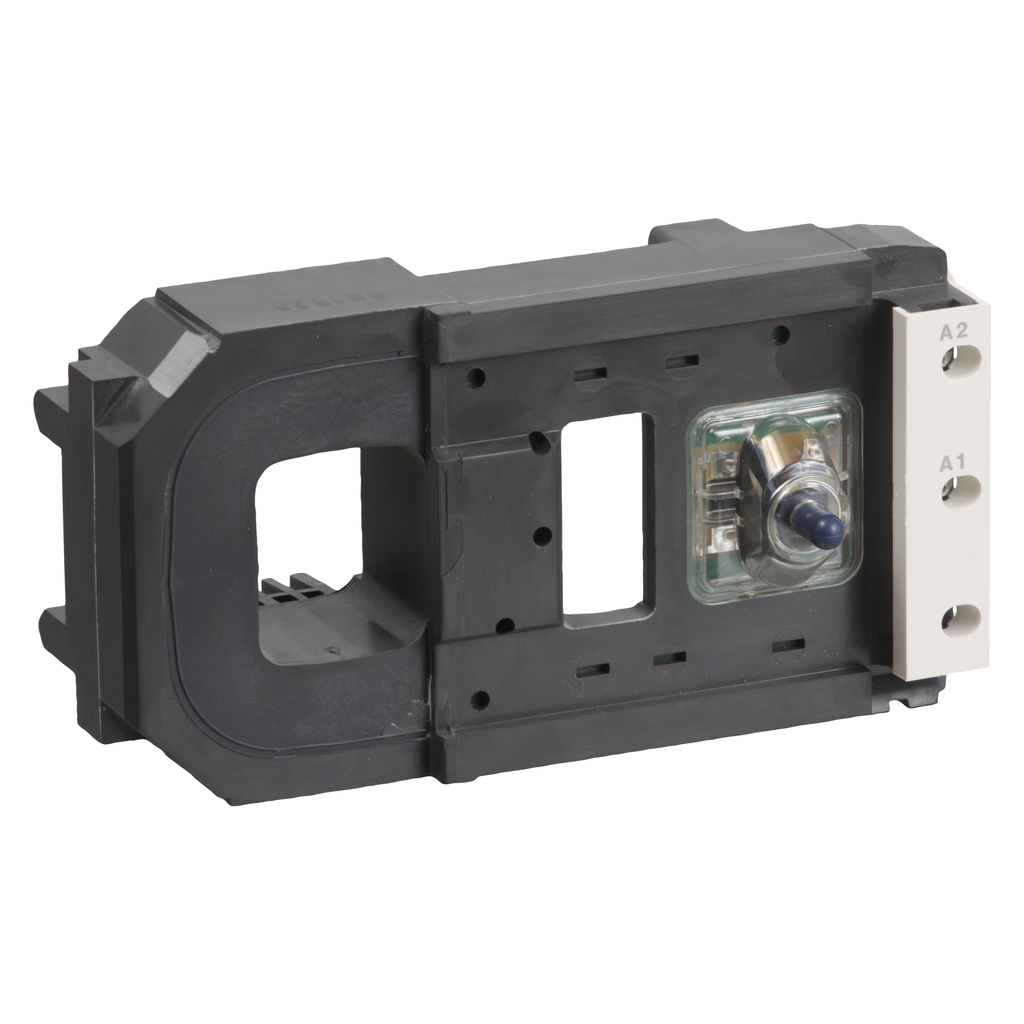

TeSys F - specific contactor coil | Mayer Electric

Mayer Electric Supply . LX9FK910

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameTeSys F - specific contactor coil | Mayer Electric
UPC785901701149
Weight1.08
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-TeSys-F-specific-contactor-coil-785901701149
jsonUrlData23384aeb3-f65d-48cf-9a11-abd2006276a1
moq, multiple, tierMinQty11
MPNLX9FK910
qtyInStock0
SKUSQDLX9FK910
tierPrice1484.35
Inductance Of Closed Circuit0.22 H
[Uc] Control Circuit Voltage24 V DC || 24 V AC
Maximum Operating Rate3600 cyc/h 70 ?C
Control Circuit TypeDC low consumption
Range CompatibilityTeSys F LC1F contactor || TeSys F DR2S resistor
Operating Time60 ms opening || 20 ms closing
Product Or Component Typespecific contactor coil
Product CompatibilityLC1F500 || DR2SC
Device Short NameLX9FK
Mechanical Durability10 Mcycles
RangeTeSys
Warranty18 months
Coil Technologywithout built-in suppressor module
Control Circuit Voltage Limitsoperational 0.85...1.1 Uc 55 ?C) || drop-out 0.3...0.5 Uc 55 ?C)
Inrush Power In W470-470 W 20 ?C)
Hold-In Power Consumption In W29-29 W 20 ?C
Heat Dissipation15-18.3 W
China Rohs RegulationX
Circularity ProfileENVEOLI111214EN_V1
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP111201EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-5-55 ?C
Net Weight1.08 kg

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLX9FK910111 @ $484.35
